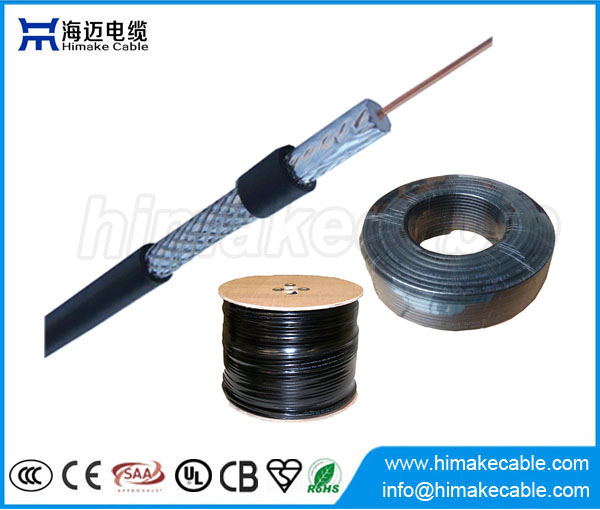

China manufacture AV cables coaxial cable p3 500
- Conductor: Bare Copper/CCS
- Dielectric: FPE, SPE
- Shield: Aluminum foil + Braiding
- Jacket: PVC / LSZH compound
- Package: 100 meters per roll, or as per requirement
- Main product model: RG6, SYWV-75-5, SYV75-5
- Product standard: GY/T 135
- Certificate: UL,CE,SGS
- Leat time: 15~35 working days, it depends the order quantity
- Price term: FOB, CFR, CIF,EX-Works
- Payment term:T/T,LC at sight,West Union
- MOQ:10000 meters, trial order can be available
- Shipment: Express, FCL, LCL, by sea or by air
Product Description：

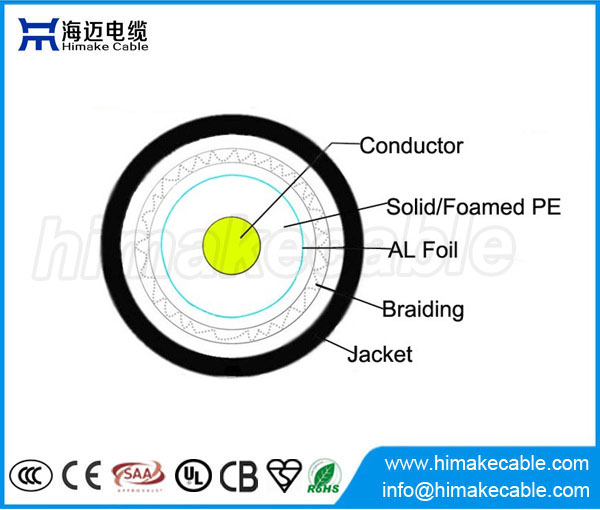

Conductor: Bare Copper/CCS
Conductor size: 1.02mm
Dielectric: FPE, SPE
Shield: Aluminum foil + Braiding
Braiding: Al-Mg alloy wire or Tinned copper or Aluminum wire or Bare copper wire
Coverage: 28%, 40%, 60%, 80%, 90% and up
Jacket: PVC / LSZH compound
Jacket color: black, white, grey, or other as per requirement

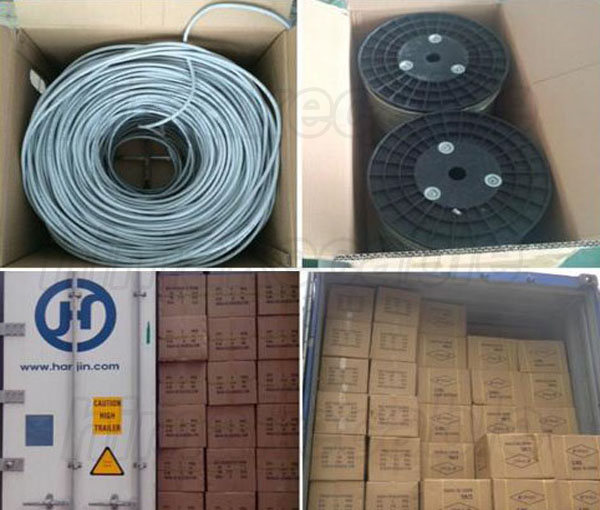

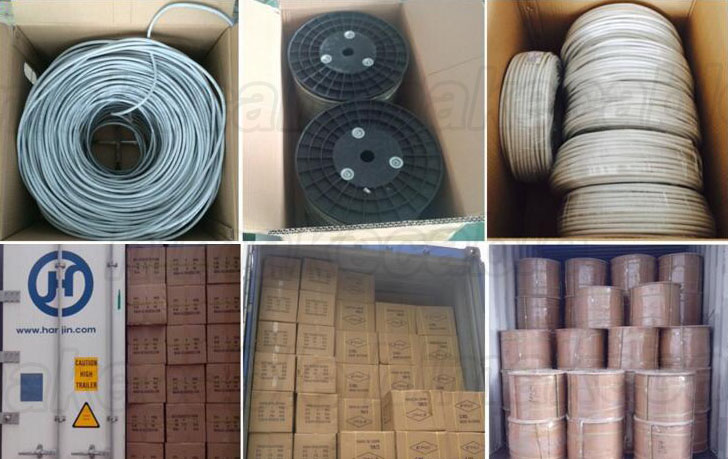

Package: 100 meters per roll, 305 meters per wooden reel, 500 meters per wooden reel, or as per requirement
Main product model: RG6, SYWV-75-5, SYV75-5
Product standard: GY/T 135

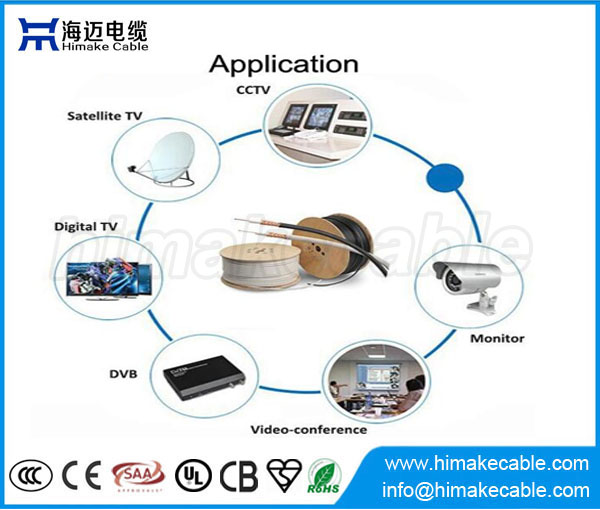

Product application：
Used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Product parameter：(more details please email us: info@himakecable.com)
|
Component |
Standard Shield |
Tri-Shield |
Super-Shield |
|||
|
Unit |
Inches |
mm |
Inches |
mm |
Inches |
mm |
|
Nominal Conductor Diameter |
0.040 |
1.02 |
0.040 |
1.02 |
0.040 |
1.02 |
|
Nominal Diameter Over Dielectric |
0.180 |
4.57 |
0.180 |
4.57 |
0.180 |
4.57 |
|
Nominal Diameter Over First Shield(Tape) |
0.187 |
4.75 |
0.187 |
4.75 |
0.187 |
4.75 |
|
Nominal Diameter Over Jacket |
0.272 |
6.91 |
0.278 |
7.06 |
0.300 |
7.62 |
|
Nominal Jacket Wall Thickness |
0.030 |
0.76 |
0.030 |
0.76 |
0.034 |
0.86 |
Product Advantages:
1. The conductor is made of good quality tinned copper, ensuring a good electrical properties and a very good conductivity.
2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.
Production equipments
Products Quality inspection equipments
3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.
4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.
5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams,etc.
How to contact us?
Put your inquiry details in the box below, and click "Contact Now".
Tel:0086 150 1259 7988
Wechat:0086 1501259 7988
Contact Person:Bill Zhou
PDF Show:PDF
