Single core PVC insulated copper conductor electric wire cable NYA cable 300/500V 450/750VSingle core PVC insulated copper conductor electric wire cable NYA cable 300/500V 450/750VSingle core PVC insulated copper conductor electric wire cable NYA cable 300/500V 450/750VSingle core PVC insulated copper conductor electric wire cable NYA cable 300/500V 450/750V

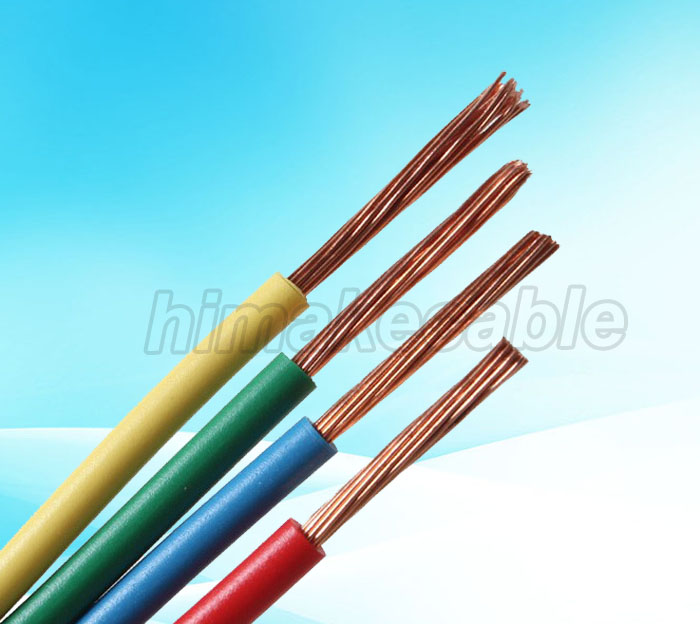

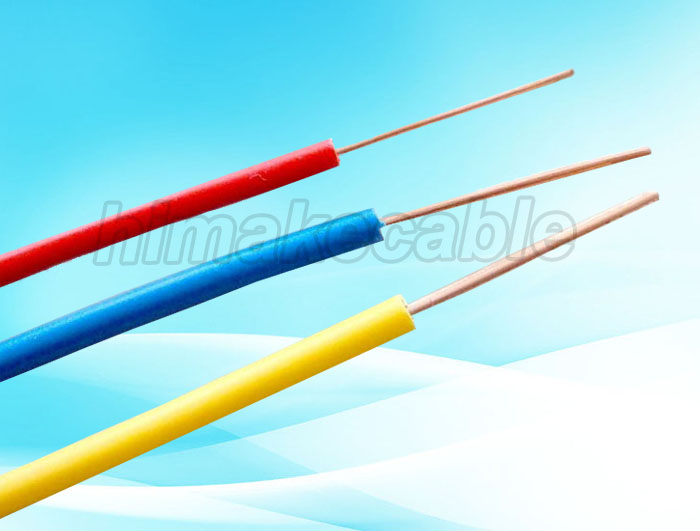

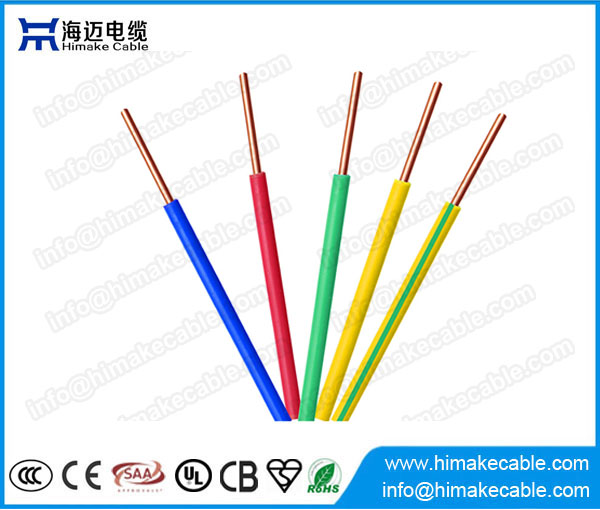

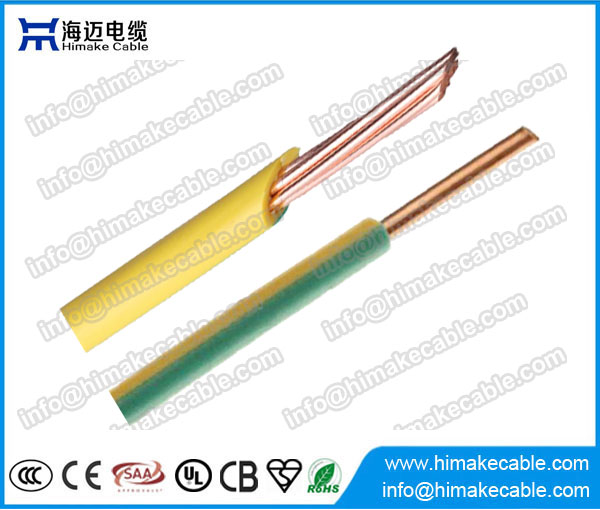

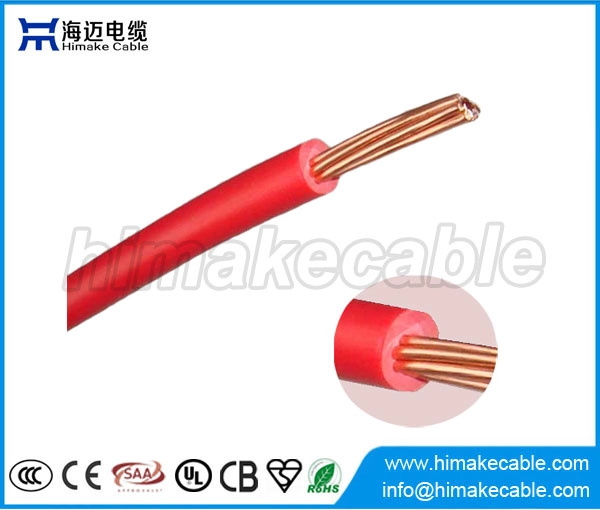

Single core PVC insulated copper conductor electric wire cable NYA cable 300/500V 450/750V

  • Single core PVC insulated copper conductor electric wire cable NYA cable 300/500V 450/750V
  • Rated voltage: 300/500V,450/750V;
  • Conductor: pure annealed copper, solid or strand type, class 1 or class 2 conductor
  • Insulation: PVC,FR-PVC
  • Max. operating temperature: 70℃, 90℃, 105℃
  • Package: 100 meters per roll for small size cable and wooden drum package for big size cable, or as per requirement
  • Main product model: NYA, FR-NYA, BV, BVR, H05V-U, H07V-R
  • Product standard: IEC60277, BS6004, VDE0250, GB/T 502
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:



Single core PVC insulated copper conductor electric wire cable NYA cable 300/500V 450/750V

Nominal Voltage: 300/500V, 450/750V

Conductor:  Class 2 plain annealed copper, solid or stranded

Conductor nominal cross section area: 0.75~400sqmm

Insulation: PVC, flame retardant PVC

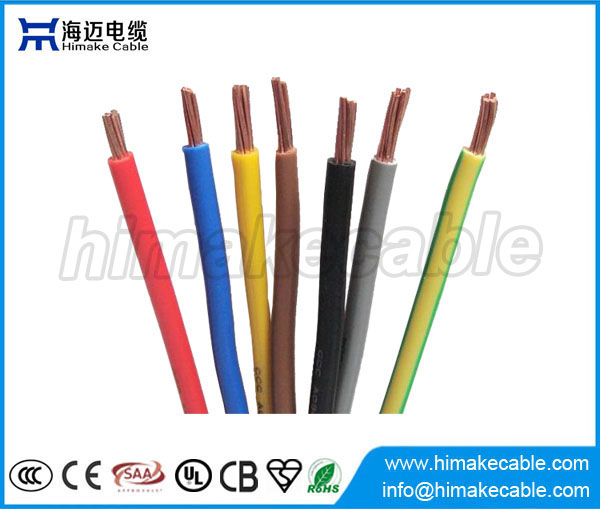

Insulation color: Red, Blue, Brown, Grey, Black, Blue, Yellow, White, Green/Yellow or other color requested

Max. operating temperature: 70℃, 90℃, 105℃

Package: 100 meters per roll for small size cable and wooden package for big size cable, or as per requirement

Main product model: NYA, FR-NYA, BV, BVR, H05V-R, H07V-R, BS6004 6491X

Product standard: IEC60277, BS6004, VDE0250, GB/T 5023



Product characteristics:

High temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.



Product application:

The cables are used for general power supply and distribution purpose, as building wire for power, lighting, etc in house, and power supply to electrical appliance and inter wiring in switch board and control panel, suitable for use in conduit and for fixed, protected installation.



Product parameter: (more details please email us: info@himakecable.com)



Nominal cross section

(mm2)

Conductor type

Insulation thickness

(mm)

Max. Overall diameter

(mm)

Min. insulation resistance at 70℃

(MΩ•km)

Approx. weight (copper)

(kg/km)

1×0.75

Class 1 solid type

PVC/0.6

2.8

0.014

11.8

1×1.0

Class 1 solid type

PVC/0.6

3.0

0.013

14.3

1×1.5

Class 1 or 2,

solid or strand type

PVC/0.7

3.4

0.010

21.3

1×2.5

Class 1 or 2,

solid or strand type

PVC/0.8

4.2

0.009

34.4

1×4.0

Class 1 or 2,

solid or strand type

PVC/0.8

4.8

0.0077

47.0

1×6.0

Class 1 or 2,

solid or strand type

PVC/0.8

5.4

0.0065

68.7

1×10

Class 2 strand type

PVC/1.0

6.8

0.0065

116

1×16

Class 2 strand type

PVC/1.0

8.0

0.0050

168

1×25

Class 2 strand type

PVC/1.2

9.8

0.0050

275

1×35

Class 2 strand type

PVC/1.2

11

0.0040

372

1×50

Class 2 strand type

PVC/1.4

13

0.0045

503

1×70

Class 2 strand type

PVC/1.4

15.0

0.0035

708

1×95

Class 2 strand type

PVC/1.6

17.2

0.0035

979

1×120

Class 2 strand type

PVC/1.6

19.0

0.0032

1207

1×150

Class 2 strand type

PVC/1.8

21.0

0.0032

1493

1×185

Class 2 strand type

PVC/2.0

23.5

0.0032

1861

1×240

Class 2 strand type

PVC/2.2

26.5

0.0032

2437

1×300

Class 2 strand type

PVC/2.4

29.5

0.0030

3066

1×400

Class 2 strand type

PVC/2.6

33.5

0.0028

3895




Product Advantages:

1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.

Pure copper



2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

   Production equipments

Production equipments



 Products Quality inspection equipments

Quality inspection equipment



3. We have more than 15 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.

Roll on pallet





wooden drum





products delivery



4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.

Company activities



5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.

Public activities
