China cable factory PVC insulated Flexible Electrical Wire PuGV Cable 450/750VChina cable factory PVC insulated Flexible Electrical Wire PuGV Cable 450/750VChina cable factory PVC insulated Flexible Electrical Wire PuGV Cable 450/750VChina cable factory PVC insulated Flexible Electrical Wire PuGV Cable 450/750V

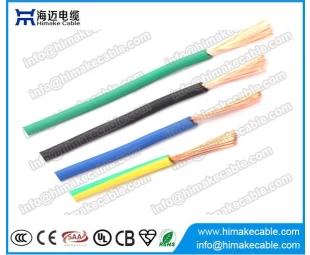

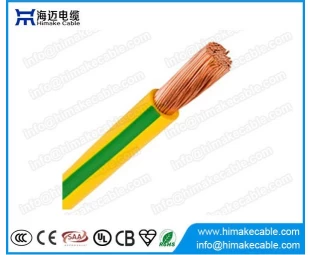

China cable factory PVC insulated Flexible Electrical Wire PuGV Cable 450/750V

  • China cable factory PVC insulated Flexible Electrical Wire PuGV Cable 450/750V
  • Nominal Voltage: 450/750V
  • Conductor: Class 5 plain annealed fine copper wire
  • Insulation: PVC, flame retardant PVC, RoHS compliant PVC
  • Max. operating temperature: 70℃, 90℃
  • Package: 100 meters per roll, or as per requirement
  • Main product model: PuGV, RV, ZR-RV, H05V-K, H07V-K, NYAF
  • Product standard: GOST 31565, IEC60277, BS6004, VDE0281, GB/T 5023, IEC60332
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:



PVC flexible wire



China cable factory PVC insulated Flexible Electrical Wire PuGV Cable 450/750V

Nominal Voltage: 450/750V

Conductor: Class 5 plain annealed fine copper wire

Conductor nominal cross section area: 0.5~240sqmm

Insulation: PVC, flame retardant PVC, RoHS compliant PVC

Insulation color: Red, Blue, Brown, Grey, Black, Blue, Yellow, White, Green/Yellow or other color requested

Max. operating temperature: 70℃, 90℃

Package: 100 meters per roll, or as per requirement

Main product model: PuGV, RV, ZR-RV, H05V-K, H07V-K, NYAF

Product standard: GOST 31565, IEC60277, BS6004, VDE0281, GB/T 5023,IEC60332



Product characteristics:



Very flexible for easy bending, high temperature resistance, cold resistance, flame retardant and high electrical conductivity, also cold resistance, fire resistance, UV resistance or Rohs compliant can be available as per request.



Product application:



The PuGV wires and cables are intended for distribution of electric energy in the electric installations at stationary laying in lighting and power electric networks as well as for installation of electrical equipment, machines, tools and other machines, indoor electric settings, for installation outdoors and in the industrial premises, steel pipes, and hollow channels of buiding structures, hidden under the plaster lining.

The PuGV wires and cables are used for the installation of electrical circuits, power motors, various industrial and laboratory equipment and portable devices.



Product parameter: (more details please email us: info@himakecable.com)

Conductor

Cross-section

(mm2)

Kind

of

Conductor

Insulation

Thickness

(mm)

Max. outer-diameter

(mm)

Product approximate weight

(kg/km)

Min. insulation resistance

(MΩ.km)

0.5

5

PVC/0.6

2.4

8.34

0.013

0.75

5

PVC/0.6

2.6

11.08

0.011

1

5

PVC/0.6

2.8

13.73

0.01

1.5

5

PVC/0.7

3.5

19.94

0.01

2.5

5

PVC/0.8

4.2

30.95

0.009

4

5

PVC/0.8

4.8

46.8

0.007

6

5

PVC/0.8

6.3

67.82

0.006



Product Advantages:

1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.

Pure copper



2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

   Production equipments

Production equipments



 Products Quality inspection equipments

Quality inspection equipment





3. We have more than 15 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.



Roll on pallet





products delivery



4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.

Company activities



5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.

Public activities
