UL3071/3074 Tinned Copper conductor Silicone insulated wire 600VUL3071/3074 Tinned Copper conductor Silicone insulated wire 600VUL3071/3074 Tinned Copper conductor Silicone insulated wire 600V

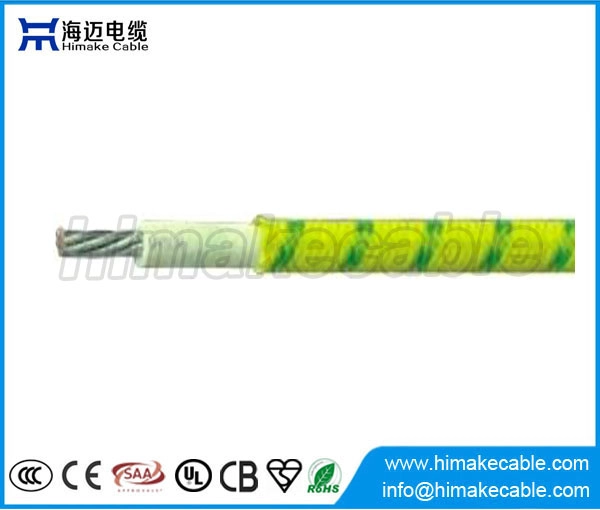

UL3071/3074 Tinned Copper conductor Silicone insulated wire 600V

  • Rated voltage: 600V
  • Conductor: 18 to 14AWG tinned copper
  • Insulation: Silicone
  • Braid: Fiber glass + Silicone
  • Package: 305 meters per roll, 200 meters per roll, or as per requirement
  • Standard: UL3071/3074
  • Certificate: UL,CE,SGS
  • Leat time: 25~35 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available
  • Shipment: Express, FCL, LCL, by sea or by air

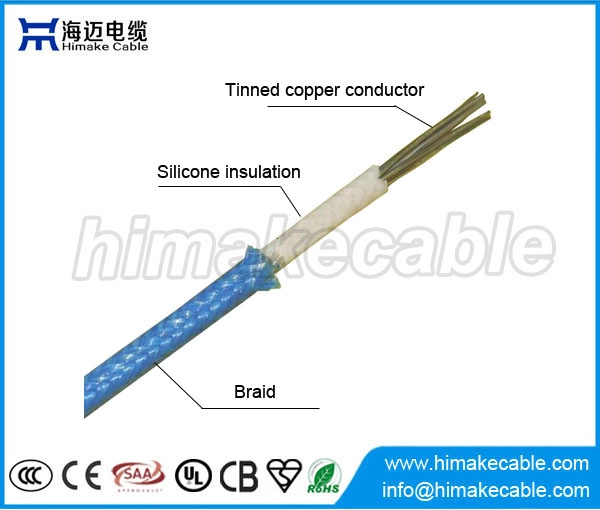

Product Description:

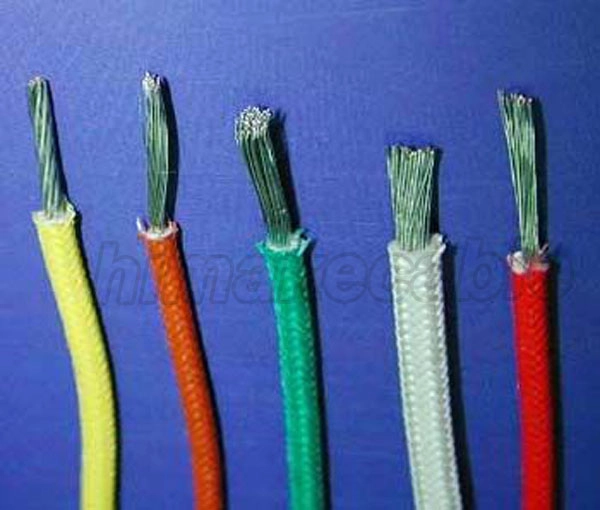

UL3071 Silicone wire


Rated voltage: 600V

Conductor: 18 to 14AWG tinned copper

Insulation: Silicone

Braid: Fiber glass + Silicone

Color available: Black-Brown-Red-Orange-Yellow-Green-Blue-Violet-Grey-White-Transparent-Green/Yellow,etc

Outer Diameter allowance: ±0.10mm

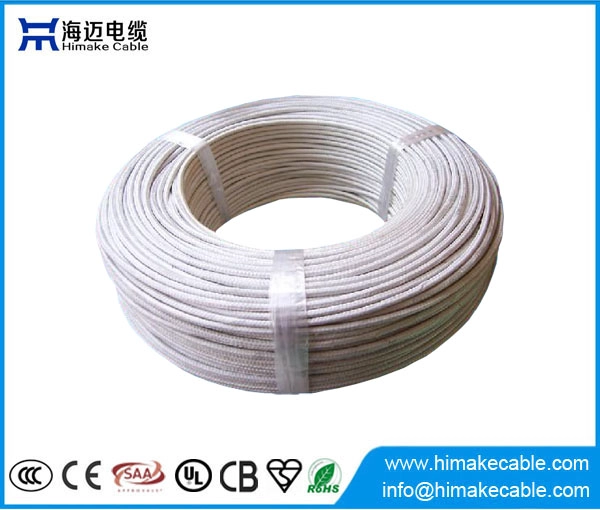

Package: 305 meters per roll, 200 meters per roll, or as per requirement

Temperature range: -60℃ to +200℃

Standard: UL3071/3074


Product Characteristic:


High temperature resistance, low temperature resistance, anti-acid and alkali, fire and aging resistance, the inoxidizability, resistance of humidity, the fine electric insulation and flexible performance UL758 & UL 1581 RoHs compliance.


Product application:


Apply to Household appliance, illumination & lighting & headlamp, electric machines, temperature sensor, military series, metallurgy chemical series, motor cars & ships, electrical installation.


Product parameter: (more details please email us: info@himakecable.com):



Standard

AWG

Conductor structure (mm)

Insulation thickness (mm)

Overall diameter  (mm)

Conductor resistance 20℃ (ohm/km)

Permissible ampacity 20℃-AMR

UL3071

18

7×0.39

0.96

3.11

22.2

11.01

UL3071

16

7×0.50

0.96

3.45

14.0

17.52

UL3071

14

41×0.26

0.96

3.75

8.78

27.84

UL3074

12

45×0.32

0.96

4.40

5.31

88.40



Product Advantages:


1. The conductor is made of good quality tinned copper, ensuring a good electrical properties and a very good conductivity.


Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.


   Production equipments


Production equipments



 Products Quality inspection equipments


Quality inspection equipment


3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.


Roll on pallet


products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.


Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams,etc.


Public activities
