Multi-stranded Copper conductor PVC and Nylon insulated TSJ cord cable 300VMulti-stranded Copper conductor PVC and Nylon insulated TSJ cord cable 300VMulti-stranded Copper conductor PVC and Nylon insulated TSJ cord cable 300VMulti-stranded Copper conductor PVC and Nylon insulated TSJ cord cable 300V

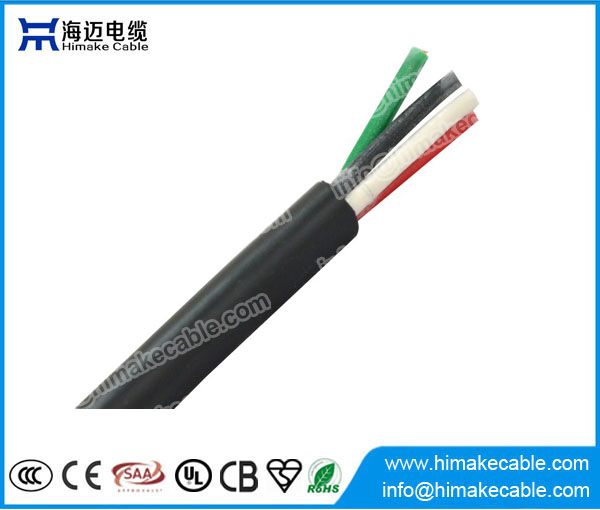

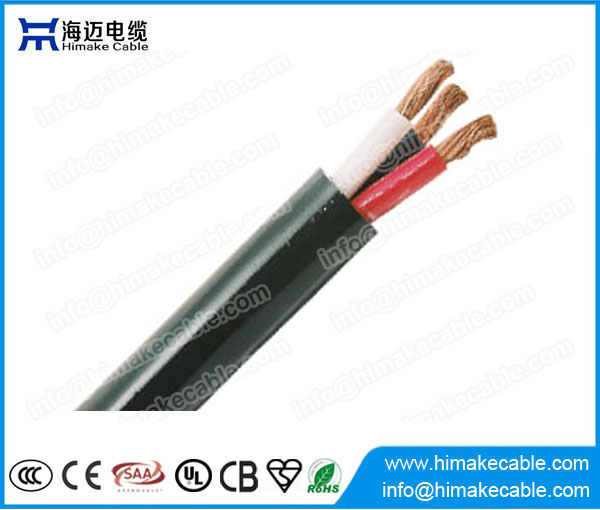

Multi-stranded Copper conductor PVC and Nylon insulated TSJ cord cable 300V

  • Multi-stranded Copper conductor PVC and Nylon insulated TSJ cord cable 300V
  • Rated voltage: 300V

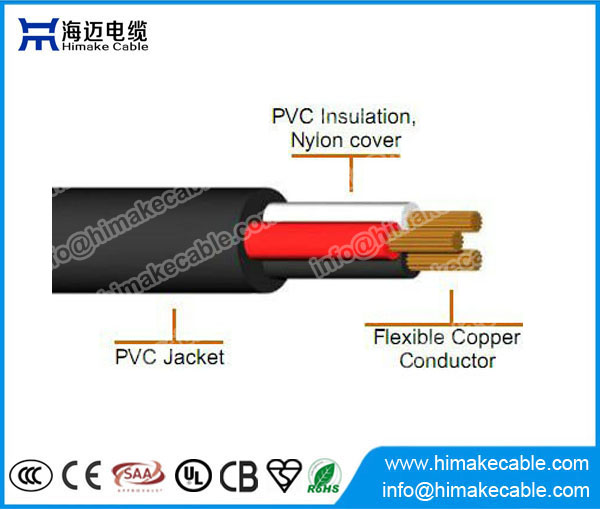

  • Conductor: Bare annealed copper conductor, multi-stranded
  • Conductor size: 18AWG up to 10 AWG
  • Cores: 2~5 cores
  • Insulation: PVC and Nylon insulation
  • Insulation color: white, black, red and green
  • Jacket: PVC
  • Package: 100 meters per roll, or as per requirement
  • Max. operating temperature: 105℃dry and Oil, Water, Acid, Alkali, and Ozone Resistant.
  • Standard: UL62, CSA 22.2-49, JC580-B, NEC 400

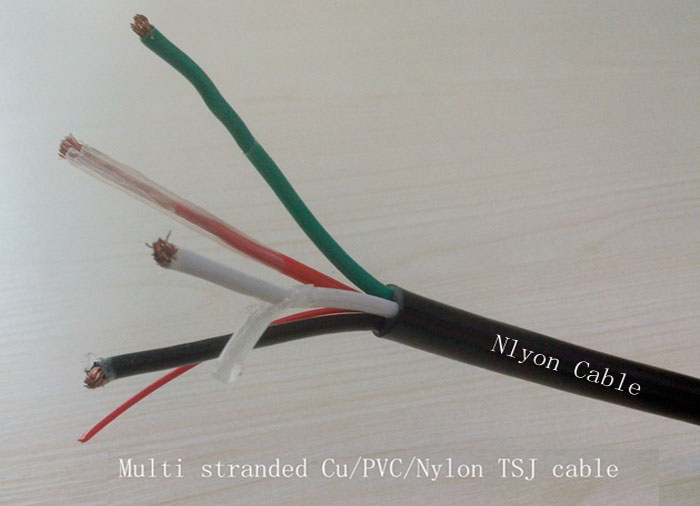

TSJ CABLE


Product Description                                              

Rated voltage: 300V

Conductor: Bare annealed copper conductor,multi-stranded

Conductor size: 18AWG up to 10 AWG

Cores: 2~5 cores

Insulation: PVC and Nylon insulation

Insulation color: white, black, red andgreen

Jacket: PVC

Package: 100 meters per roll, or as perrequirement

Max.operating temperature: 105℃dryand Oil, Water, Acid, Alkali, and Ozone Resistant.

Standard: UL62, CSA 22.2-49, JC580-B, NEC400.


Product application                                              

SJT cordis integrated, UL/CSA approved, hard-duty, oil-resistant, alkali, water, ozoneresistant, durable, flexible, and PVC multi-conductor portable cord. SJT Cordis recommended for use in connecting electrical appliances under mediummechanical stress environments as in offices, kitchens, and households. SJTcord is generally found in connections in damp and wet areas asrefrigerators, washing machines, and spin-dryers. SJT Cord is also suitable forcooking and heating apparatus if there is no direct contact with the hot partsor other heat influences. SJT cord is also suitable for fixed applications infurniture, wall partitions, decoration coverings and in hollow spaces ofprefabricated building parts. Available in the black, white or gray jacket.

Product parameter                                               

Conductor size  (AWG)

Number of conductor

Conductor stranding

Nom. Insul. Thickness (in)

Nom. OD of cable (in)

Ampactiy

(A)

Approx. Weight (Wt. Lbs/M Ft.)

SJT 18/2

2

16/30

0.030

0.287

10

50

SJT 18/3

3

16/30

0.030

0.315

10

55

SJT 16/3

3

26/30

0.030

0.330

13

75

SJT 16/4

4

26/30

0.030

0.365

10

85

SJT 14/3

3

41/30

0.045

0.365

18

90

SJT 14/4

4

41/30

0.045

0.405

15

115

SJT 12/3

3

65/30

0.045

0.430

25

135

SJT 12/4

4

65/30

0.045

0.475

20

170

SJT 10/3

3

104/30

0.045

0.580

30

215

SJT 10/4

4

104/30

0.045

0.640

25

275



Product Advantages:

1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.

Pure copper

2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

Production equipments

Production equipments

Products Quality inspection equipments

Quality inspection equipment

3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.

Roll on pallet

wooden drum

products delivery

4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.

Company activities

5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams,etc.

Public activities
