Flexible Copper conductor PVC insulated and PVC jacket TSJ cord cable 300VFlexible Copper conductor PVC insulated and PVC jacket TSJ cord cable 300VFlexible Copper conductor PVC insulated and PVC jacket TSJ cord cable 300VFlexible Copper conductor PVC insulated and PVC jacket TSJ cord cable 300V

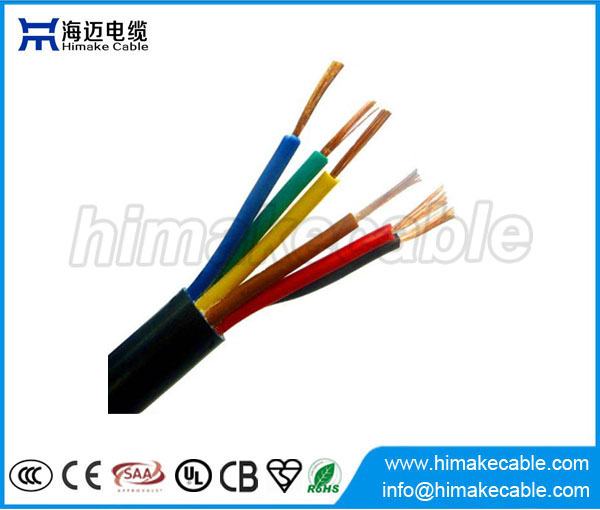

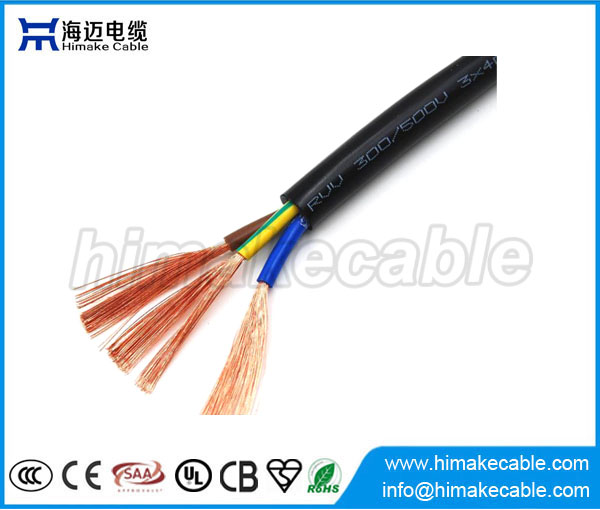

Flexible Copper conductor PVC insulated and PVC jacket TSJ cord cable 300V

  • Flexible Copper conductor PVC insulated and PVC jacket TSJ cord cable 300V
  • Rated voltage: 300V
  • Conductor: Bare annealed copper conductor, soft fine copper wire stranded
  • Conductor size: 18AWG up to 10 AWG
  • Cores: 2~5 cores
  • Insulation: PVC insulation
  • Insulation color: white, black, red and green
  • Jacket: PVC
  • Package: 100 meters per roll, or as per requirement
  • Max. operating temperature: 105℃dry and Oil, Water, Acid, Alkali, and Ozone Resistant.
  • Standard: UL62, CSA 22.2-49, JC580-B, NEC 400

Product Description                                              

Flexible Copper conductor PVC insulated and PVC jacket TSJ cord cable 300V

Rated voltage: 300V

Conductor: Bare annealed copper conductor,multi-stranded

Conductor size: 18AWG up to 10 AWG

Cores: 2~5 cores

Insulation: PVC insulation

Insulation color: white, black, red and green

Jacket: PVC

Package: 100 meters per roll, or as perrequirement

Max.operating temperature: 105℃dryand Oil, Water, Acid, Alkali, and Ozone Resistant.

Standard: UL62, CSA 22.2-49, JC580-B, NEC400.


Product application                                              

SJT cordis integrated, UL/CSA approved, hard-duty, oil-resistant, alkali, water, ozoneresistant, durable, flexible, and PVC multi-conductor portable cord. SJT Cordis recommended for use in connecting electrical appliances under mediummechanical stress environments as in offices, kitchens, and households. SJTcord is generally found in connections in damp and wet areas asrefrigerators, washing machines, and spin-dryers. SJT Cord is also suitable forcooking and heating apparatus if there is no direct contact with the hot partsor other heat influences. SJT cord is also suitable for fixed applications infurniture, wall partitions, decoration coverings and in hollow spaces ofprefabricated building parts. Available in the black, white or gray jacket.

Product parameter                                               

Conductor size  (AWG)

Number of conductor

Conductor stranding

Nom. Insul. Thickness (in)

Nom. OD of cable (in)

Ampactiy

(A)

Approx. Weight (Wt. Lbs/M Ft.)

SJT 18/2

2

16/30

0.030

0.287

10

50

SJT 18/3

3

16/30

0.030

0.315

10

55

SJT 16/3

3

26/30

0.030

0.330

13

75

SJT 16/4

4

26/30

0.030

0.365

10

85

SJT 14/3

3

41/30

0.045

0.365

18

90

SJT 14/4

4

41/30

0.045

0.405

15

115

SJT 12/3

3

65/30

0.045

0.430

25

135

SJT 12/4

4

65/30

0.045

0.475

20

170

SJT 10/3

3

104/30

0.045

0.580

30

215

SJT 10/4

4

104/30

0.045

0.640

25

275
