Home > Products > UL Cable > UL 1007 PVC Hook-up wire 300V
UL 1007 PVC Hook-up wire 300VUL 1007 PVC Hook-up wire 300VUL 1007 PVC Hook-up wire 300VUL 1007 PVC Hook-up wire 300V

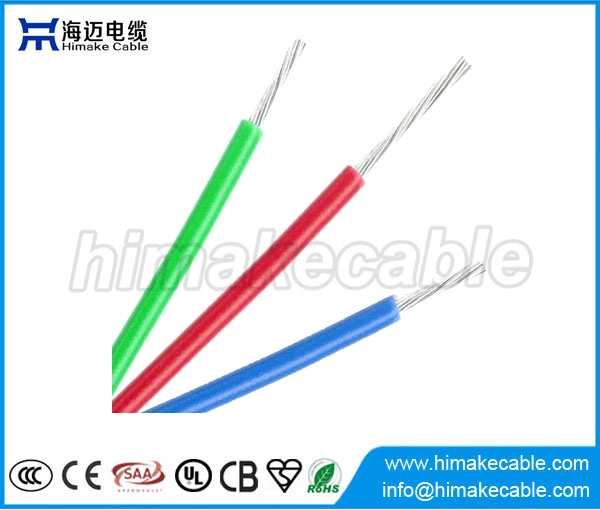

UL 1007 PVC Hook-up wire 300V

  • Rated voltage: 300V
  • Conductor: tinned, annealed, stranded or solid copper conductor
  • Insulation: PVC
  • Rated temperature: 80℃
  • Standard: UL1007, UL758, UL1581, CSA22.2
  • Package: 2000 feet per coil, or 610 meters per coil, or as per requirement
  • Certificate: UL,SGS
  • Leat time: 15~35 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

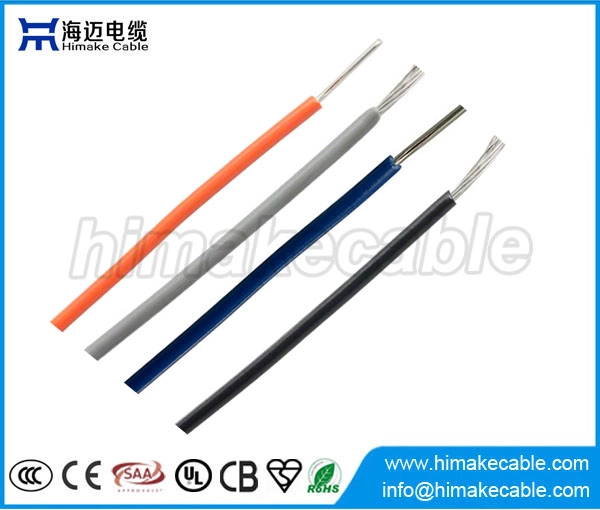

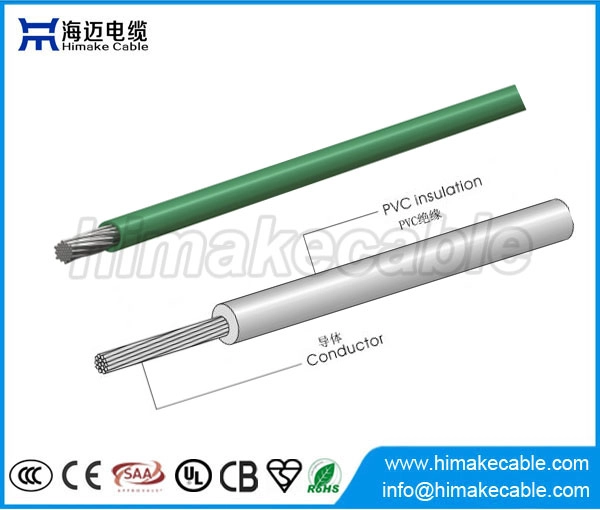

PVC hook-up wire


Rated voltage: 300V

Conductor: tinned, annealed, stranded or solid copper conductor

Insulation: PVC

Color available: red, blue, yellow, green, black, grey, or as per requirement

Package: 2000 feet per roll, 610 meters per roll, or as per requirement

Rated Temperature: 80℃

Standard: UL1007, UL758, UL1581, CSA22.2


Product Characteristic:


Uniform thickness of wire to ensure easy stripping and cutting, passes UL VW-1 & CSA FT1 vertical flame test.


Product application:


UL 1007 PVC Hook-up wire is used for general purpose internal wiring of electronic and electrical equipment.


Product parameter: (more details please email us: info@himakecable.com):



UL Style & CSA Style

Conductor

AWG

Conductor structure (mm)

Insulation thickness (mm)

Overall diameter (mm)

Conductor resistance at 20℃ (Ω/KM)

UL1007 (stranded)

30

7/0.100

0.41

1.10

381.00

28

7/0.127

0.41

1.20

239.00

26

7/0.160

0.41

1.30

150.00

24

11/0.160

0.41

1.40

94.20

22

17/0.160

0.41

1.60

59.40

20

21/0.178

0.41

1.80

36.70

UL1007 (top-coated)

26

7/0.160

0.41

1.30

140.00

24

7/0.200

0.41

1.40

88.70

22

7/0.250

0.41

1.60

54.70

UL1007 (solid)

26

1/0.404

0.41

1.25

143.00

24

1/0.511

0.41

1.35

89.30

22

1/0.634

0.41

1.50

56.40

20

1/0.813

0.41

1.65

35.20



Product Advantages:


1. The conductor is made of good quality tinned copper, ensuring a good electrical properties and a very good conductivity.


Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.


   Production equipments


Production equipments



 Products Quality inspection equipments


Quality inspection equipment


3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.

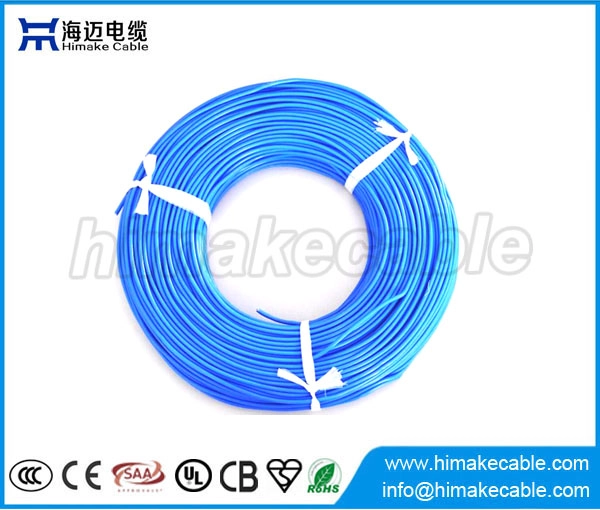

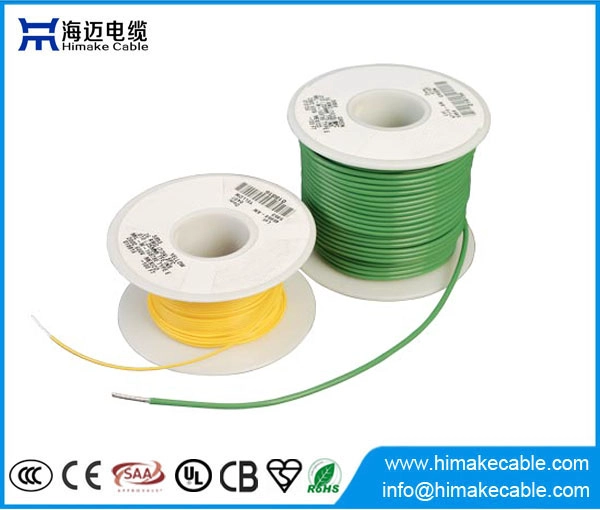

hook-up wire package


products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.


Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams,etc.


Public activities
