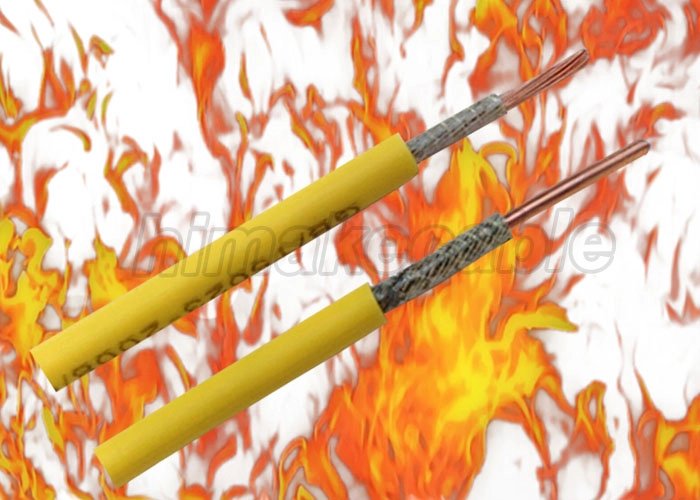

Fire resistant single core insulated electric wire 300/500V 450/750V
- Nominal Voltage: 300/500V, 450/750V
- Conductor: Class 1 or Class 2 plain annealed copper
- Fire resistant material: Mica tape
- Insulation: flame retardant PVC, Rohs compliant PVC,XLPE,LSZH
- Package: 100 meters per roll, wooden drum or as per requirement
- Main product model: NH-BV,BS6004 6491X,BS6722 6491B
- Product standard: IEC60277,VDE0281,BS7211, IEC60332
- Certificate: CCC,CE,CB,BS,SAA,SGS
- Leat time: 15~25 working days, it depends the order quantity
- Price term: FOB, CFR, CIF,EX-Works
- Payment term:T/T,LC at sight,West Union
- MOQ:10000 meters, trial order can be available.
- Shipment: Express, FCL, LCL, by sea or by air
Product Description：
Nominal Voltage: 300/500V, 450/750V
Conductor: Class 1 or Class 2 plain annealed copper or aluminum, solid copper or aluminum or strand copper or aluminum
Conductor nominal cross section area: 0.5~400sqmm
Insulation: PVC, flame retardant PVC, Rohs compliant PVC, XLPE, PE, LSZH compound
Insulation color: Red, Blue, Brown, Grey, Black, Blue, Yellow, White, Green/Yellow or other color requested
Max. operating temperature: 70℃, 90℃, 105℃ for PVC insulation, up to 150℃ for LSZH compound
Package: 100 meters per roll, or as per requirement
Main product model: NH-BV, NH-BLV,H05V-U, H07V-U, H05V-R, H07V-R, BS6004 6491X, BYJ, WDZ-BYJ, H05Z-U,H07Z-U, H07Z-R, BS7211 6491B
Product standard: IEC60277, BS6004, VDE0281, GB/T 5023, BS7211, IEC60332, IEC61034, IEC60754, HD22.9, VDE0282, GB/T19666
Product characteristics:
High temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.
Product application:
The cables are used for general power supply and distribution purpose, as building wire for power, lighting, etc in house, and power supply to electrical appliance, suitable for use in conduit and for fixed, protected installation.
Product parameter: (more details please email us: info@himakecable.com)
|
Nominal cross section (mm2) |
Conductor type |
Insulation thickness (mm) |
Max. Overall diameter (mm) |
Min. insulation resistance at 70℃ (MΩ•km) |
Approx. weight (copper) (kg/km) |
|
1×0.5 |
Class 1 solid type |
PVC/0.6 |
2.4 |
0.015 |
8.1 |
|
1×0.75 |
Class 1 solid type |
PVC/0.6 |
2.6 |
0.012 |
10.9 |
|
1×1.0 |
Class 1 solid type |
PVC/0.6 |
2.8 |
0.011 |
13.7 |
|
1×1.5 |
Class 1 solid type |
PVC/0.7 |
3.3 |
0.011 |
20.0 |
|
1×2.5 |
Class 1 solid type |
PVC/0.8 |
3.9 |
0.010 |
31.1 |
|
1×4.0 |
Class 1 solid type |
PVC/0.8 |
4.4 |
0.0085 |
45.7 |
|
1×6.0 |
Class 1 solid type |
PVC/0.8 |
4.9 |
0.0070 |
65.2 |
|
Nominal cross section (mm2) |
Conductor type |
Insulation thickness (mm) |
Max. Overall diameter (mm) |
Min. insulation resistance at 70℃ (MΩ•km) |
Approx. weight (copper) (kg/km) |
|
1×10 |
Class 1 solid type |
PVC/1.0 |
6.4 |
0.0070 |
112 |
|
1×0.75 |
Class 2 strand type |
PVC/0.6 |
2.8 |
0.014 |
11.8 |
|
1×1.0 |
Class 2 strand type |
PVC/0.6 |
3.0 |
0.013 |
14.3 |
|
1×1.5 |
Class 2 strand type |
PVC/0.7 |
3.4 |
0.010 |
21.3 |
|
1×2.5 |
Class 2 strand type |
PVC/0.8 |
4.2 |
0.009 |
34.4 |
|
1×4.0 |
Class 2 strand type |
PVC/0.8 |
4.8 |
0.0077 |
47.0 |
|
1×6.0 |
Class 2 strand type |
PVC/0.8 |
5.4 |
0.0065 |
68.7 |
|
1×10 |
Class 2 strand type |
PVC/1.0 |
6.8 |
0.0065 |
116 |
|
1×16 |
Class 2 strand type |
PVC/1.0 |
8.0 |
0.0050 |
168 |
|
1×25 |
Class 2 strand type |
PVC/1.2 |
9.8 |
0.0050 |
275 |
|
1×35 |
Class 2 strand type |
PVC/1.2 |
11 |
0.0040 |
372 |
|
1×50 |
Class 2 strand type |
PVC/1.4 |
13 |
0.0045 |
503 |
|
1×70 |
Class 2 strand type |
PVC/1.4 |
15.0 |
0.0035 |
708 |
|
1×95 |
Class 2 strand type |
PVC/1.6 |
17.2 |
0.0035 |
979 |
|
1×120 |
Class 2 strand type |
PVC/1.6 |
19.0 |
0.0032 |
1207 |
|
1×150 |
Class 2 strand type |
PVC/1.8 |
21.0 |
0.0032 |
1493 |
|
1×185 |
Class 2 strand type |
PVC/2.0 |
23.5 |
0.0032 |
1861 |
|
1×240 |
Class 2 strand type |
PVC/2.2 |
26.5 |
0.0032 |
2437 |
|
1×300 |
Class 2 strand type |
PVC/2.4 |
29.5 |
0.0030 |
3066 |
|
1×400 |
Class 2 strand type |
PVC/2.6 |
33.5 |
0.0028 |
3895 |
Product Advantages:
1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.
