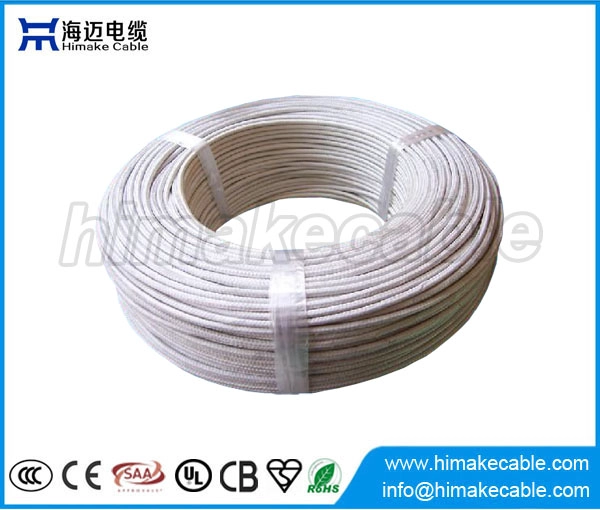

AWM 3640 Silicone rubber insulation wire

  • Rated volt.:1.1KV
  • Rated temp.:150/180℃
  • Conductor: tinned copper 1221/0.50mm, Conductor diameter: 23.0mm
  • Insulation:Silicone rubber 2.4mm
  • Jacket: synthetic yarn braiding, special resin coating, braiding thickness: 0.35mm
  • Cable O.D.: 28.5±0.60mm
  • Color: all is available
  • Cable approx. weight: 252kg/100meters

          AWM 3640 Silicone rubber insulation wire SPECIFICATION

                                                    Standard:UL758   File No.:E206992






AWM 3640 Silicone rubber insulation wire

 Rated volt.:1.1KV

 Rated temp.:150/180℃

 Conductor: tinned copper 1221/0.50mm, Conductor diameter: 23.0mm

 Insulation:Silicone rubber 2.4mm

 Jacket: synthetic yarn braiding, special resin coating, braiding thickness: 0.35mm

 Cable O.D.: 28.5±0.60mm

 Color: all is available

Cable approx. weight: 252kg/100meters




Characters:

Items

Technical data

Applied standard

Out appearance

Smooth, even, not loose

UL758

UL62

UL1581

Voltage test

AC3.2KV/0.15 S

Min. bending radius

5×d

Insulation mechanical characters

Before aged

Tensile Strength

≥3.45N/mm²

Elongation at break

≥100%

150℃ (158±1℃×1440h)

180℃ (210±1℃×1440h)

Tensile Strength

Not less than 60% of un-aged

Elongation at break

Not less than 25% of un-aged

Horizontal flame test

FT2

Poisonous substance control

Comply with  ROHS rules

EU—2002/95/EC
