Home > Products > AS/NZS Cable > AS/NZS shielded PVC Control Ca.....
AS/NZS shielded PVC Control Cable 0.6/1KVAS/NZS shielded PVC Control Cable 0.6/1KVAS/NZS shielded PVC Control Cable 0.6/1KVAS/NZS shielded PVC Control Cable 0.6/1KV

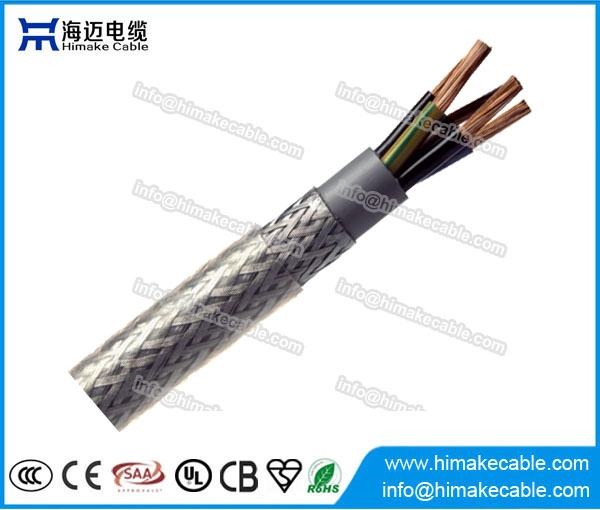

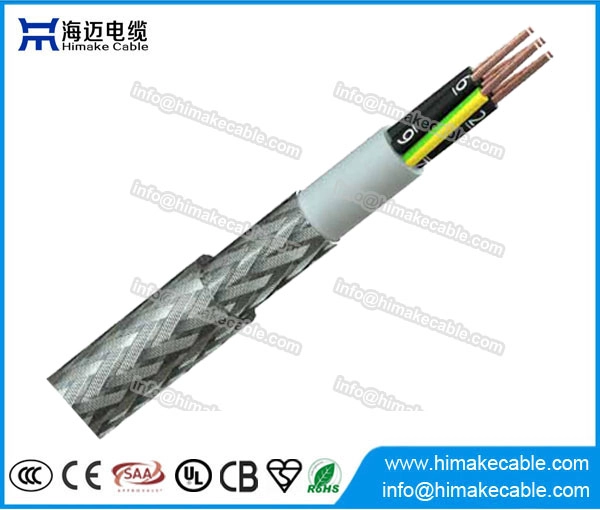

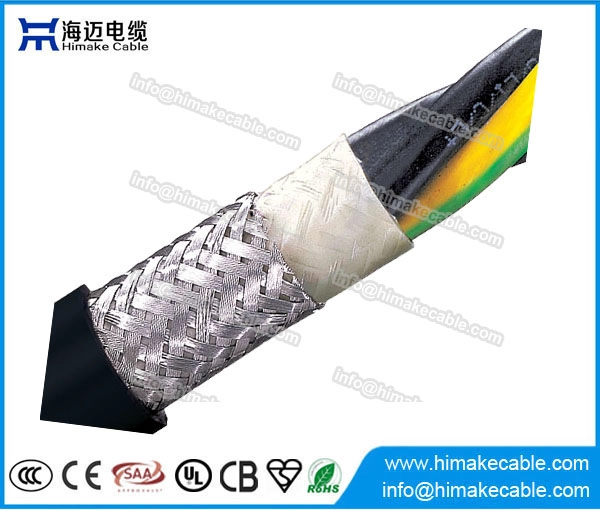

AS/NZS shielded PVC Control Cable 0.6/1KV

  • Rated voltage: 0.6/1KV
  • Conductor: pure annealed copper, strand type
  • Insulation: V-90 PVC
  • Shield: tinned copper wire braiding screen or copper wire braiding screen
  • Sheath: 5V-90 PVC
  • Max. operating temperature: 90℃
  • Package: 100 meters per roll, or wooden drum, or as per requirement
  • Product standard: AS/NZS5000.1
  • Certificate: SAA
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

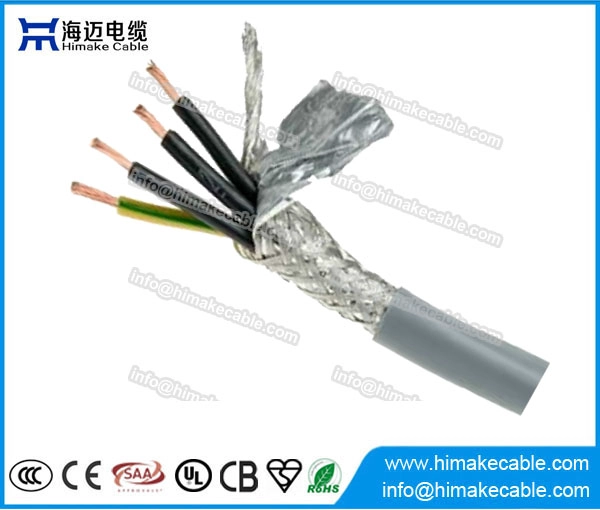

shielded control cable


Nominal Voltage: 0.6/1KV

Conductor:  Class 5 plain annealed copper, flexible copper

Conductor nominal cross section area: 1.5sqmm, 2.5sqmm

Cores: 2C~50C+E

Insulation: V-75 PVC, or V-90 PVC

Insulation color: white with black number + green/yellow, or black with white number + green/yellow

Shield: tinned copper wire braiding screen or copper wire braiding screen

Sheath: 4V-75 PVC, or 5V-90 PVC

Sheath color: Orange, Grey, black or as per requirement, or Clear PVC type

Max. operating temperature: 75℃, or 90℃

Package: 100 meters per roll, or wooden drum, or as per requirement

Main product model: shielded PVC control cable

Product standard: AS/NZS5000.1


Product characteristics:

High temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

For control circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for commercial, industrial, mining and electricity authority systems where not subject to mechanical damage (unarmored type) , also suitable for glanding.


Product parameter:  (more details please email us: info@himakecable.com)

Number of cores

(mm2)

Conductor structure

(mm)

Nominal overall diameter

(mm)

Approx. cable weight

(kg/km)

5×1.5+E

7/0.50

13.1

220

6×1.5+E

7/0.50

13.1

240

8×1.5+E

7/0.50

15.4

300


Product Advantages:


1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.


Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.


   Production equipments


Production equipments



 Products Quality inspection equipments


Quality inspection equipment


3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally and SAA certificate.


Roll on pallet


products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.


Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams,etc.


Public activities
