Home > Products > AS/NZS Cable > High quality Australia fire ra.....
High quality Australia fire rated cable manufacturer made in China AS/NZS3013High quality Australia fire rated cable manufacturer made in China AS/NZS3013High quality Australia fire rated cable manufacturer made in China AS/NZS3013High quality Australia fire rated cable manufacturer made in China AS/NZS3013

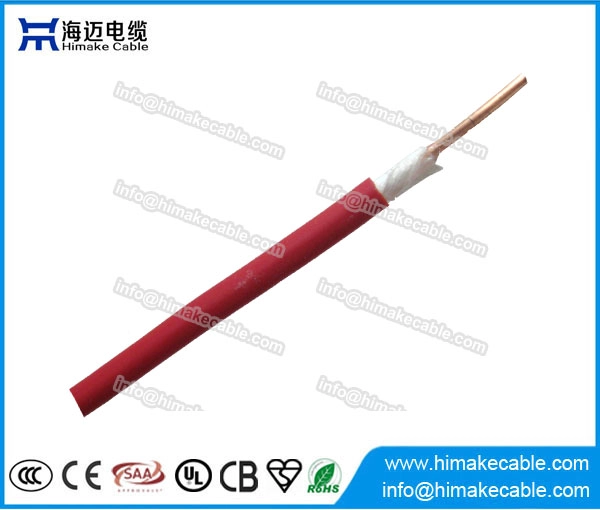

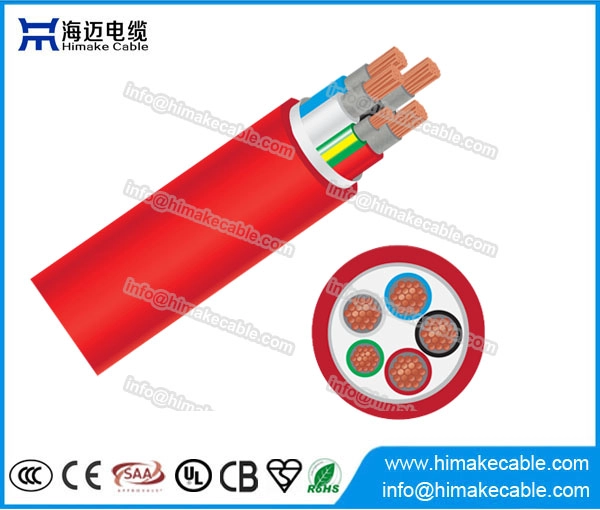

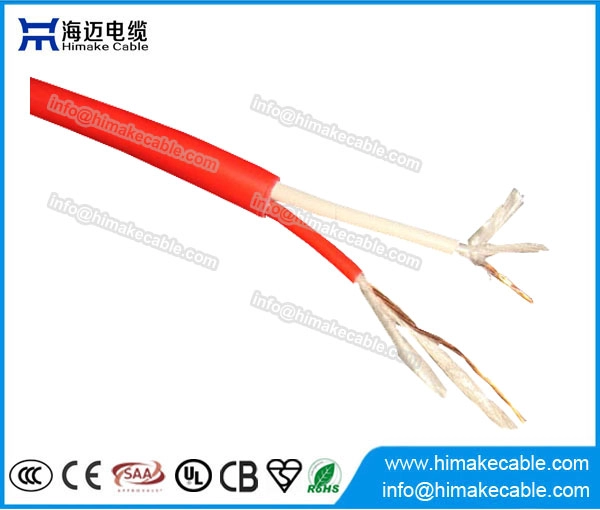

High quality Australia fire rated cable manufacturer made in China AS/NZS3013

  • High quality Australia fire rated cable manufacturer made in China AS/NZS3013
  • Rated voltage: 450/750V
  • Conductor: Oxygen free plain copper wire, class 2 conductor type
  • Insulation: Mica-glass tape flame barrier + X-HF-110
  • Sheath: HFS-110-TP
  • Max. operating temperature: 110℃
  • Package: 100 meters per roll, or 500 meters per reel, or wooden drum, or as per requirement
  • Product standard: AS/NZS 5000.2, AS/NZS 3013 - WS52W
  • Certificate: SAA
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

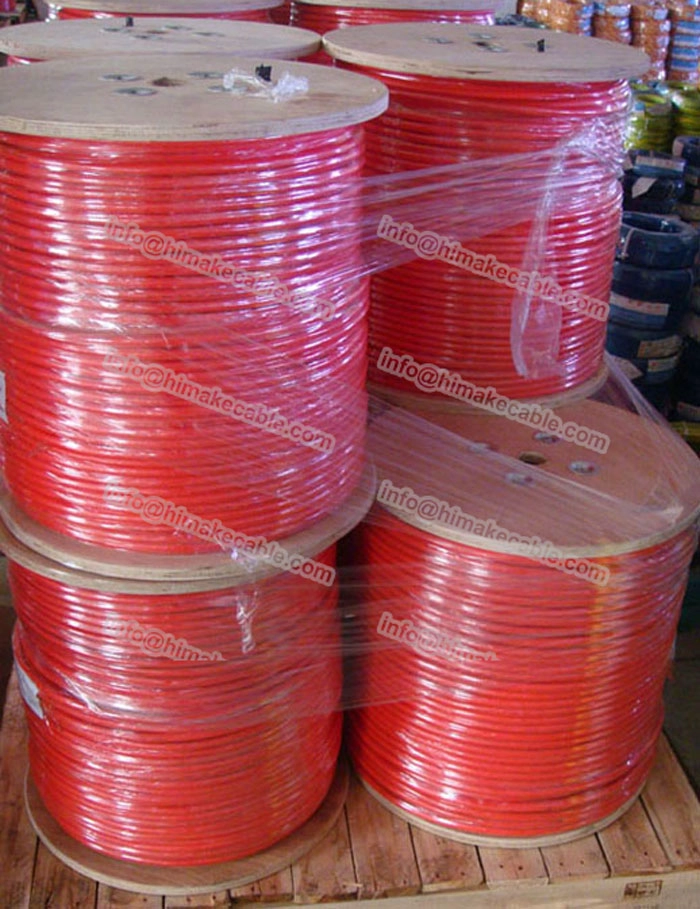

fire rated cable package


High quality Australia fire rated cable manufacturer made in China AS/NZS3013

Nominal Voltage: 450/750V

Conductor:  Oxygen free plain copper wire, class 2 conductor type

Conductor nominal cross section area: 0.75~4.0 sqmm

Cores:  2C, 4C, 2C+E

Insulation: Mica-glass tape flame barrier + X-HF-110

Insulation color: 2C: red + white; 4C: red + white + blue + black; 2C+E: red + white + naked earth

Sheath: HFS-110-TP

Sheath color: Red or as per requirement

Max. operating temperature: 110℃

Package: 100 meters per roll, or 500 meters per reel, or wooden drum, or as per requirement

Main product model: HF-110 fire rated cable, Fire resistance cable

Product standard: AS/NZS 5000.2, AS/NZS 3013 - WS52W


Product characteristics:

Low smoking Halogen free, Fire resistance, UV resistance, Rohs compliant

Product application:

For inclusion in wiring systems required to maintain circuit integrity under fire conditions. Wiring systems can be associated with firefighting, evacuation, emergency equipment, essential services and other safety functions in buildings, oil rigs, ships, and other structures.

Product parameter:  (more details please email us: info@himakecable.com)


Cores and conductor size (mm2

Conductor

Insulation thickness (mm)

Earth core

Sheath thickness (mm)

Approx. O.D.

(mm)

2×0.75

OFC

0.7

TC

1.2

9.5

2×1.5

OFC

0.7

TC

1.2

9.9

4×1.5

OFC

0.7

TC

1.2

11.7

2×0.75+E

OFC

0.7

TC

1.2

9.8

2×1.5+E

OFC

0.7

TC

1.2

10.2

4×1.5+E

OFC

0.7

TC

1.8

13.0


Product Advantages:


1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.


Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.


   Production equipments


Production equipments



 Products Quality inspection

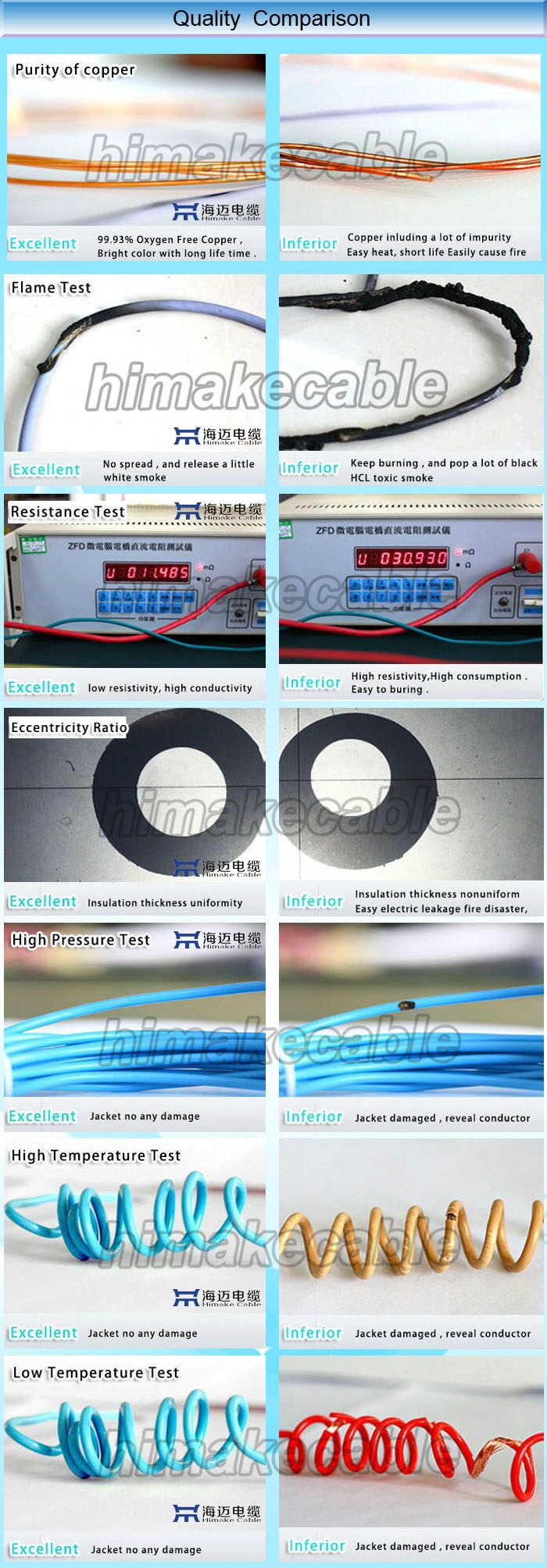

fire resistance inspection


3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally and SAA certificate.


Roll on pallet


products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.


Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams,etc.


Public activities
