Home > Products > AS/NZS Cable > Shielded red fire alarm cable .....
Shielded red fire alarm cable 250V/250VShielded red fire alarm cable 250V/250VShielded red fire alarm cable 250V/250VShielded red fire alarm cable 250V/250V

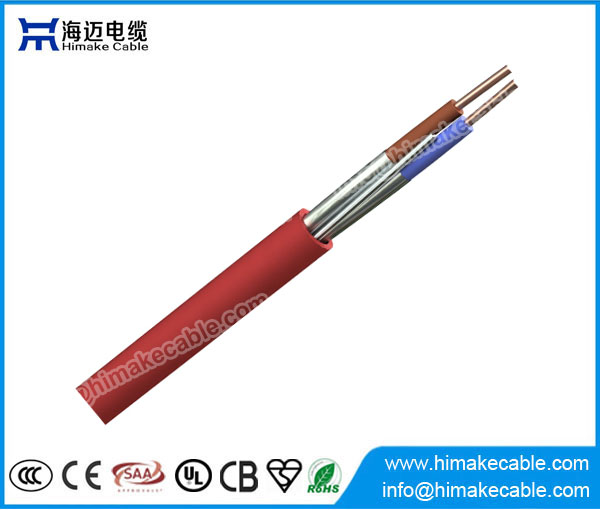

Shielded red fire alarm cable 250V/250V

  • Rated voltage: 250/250V
  • Conductor: Oxygen free plain copper wire, class 2 conductor type
  • Insulation: V-90 PVC, V-75 PVC or LSZH
  • Shield: Aluminum foil
  • Drain wire: tinned copper or copper
  • Sheath: easy tear 3V-90 PVC or LSZH
  • Max. operating temperature: 75℃,90℃
  • Package: 100 meters per roll, or 500 meters per reel, or as per requirement
  • Product standard: AS1670
  • Certificate: SAA
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

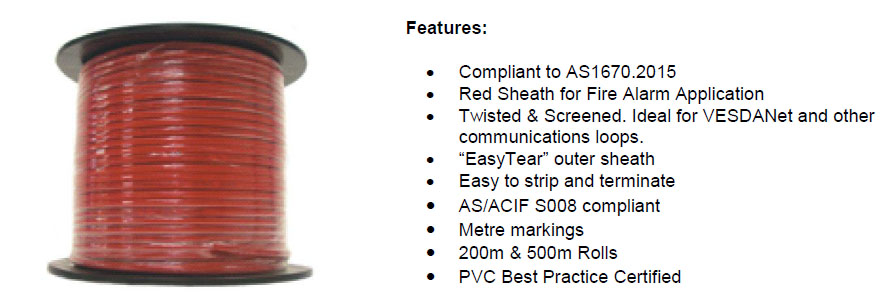

sf1

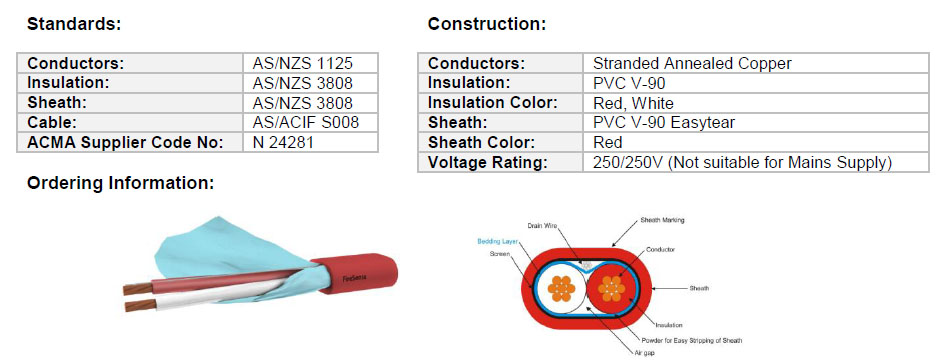

sc2


Product characteristics:

Flame retardant, Fire resistance, UV resistance, RoHS compliant

Product application:

Suitable for cabling from the fire alarm, OWS and EWIS panels to detectors, speakers, horns, strobes, field modules, etc. The cable are double insulated and have an "easy tear" outer sheath making the cable easy to strip and terminated.

This 2 core twisted screened version is ideal for VESDA networks and other communication networks.

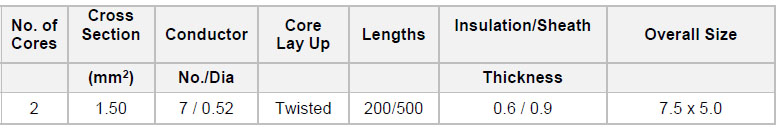

sc3

sc4


fire resistance inspection
