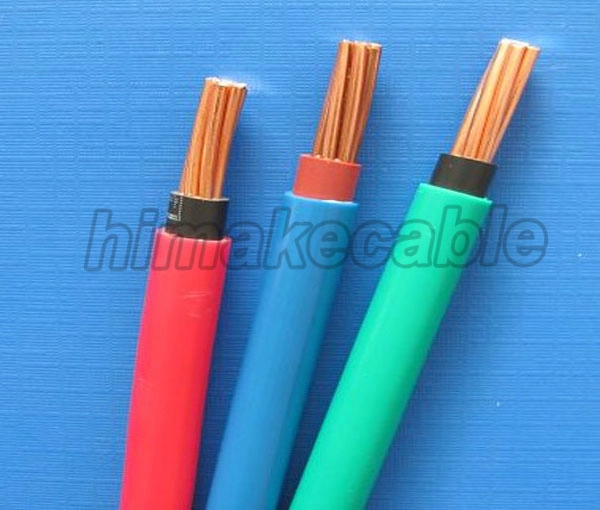

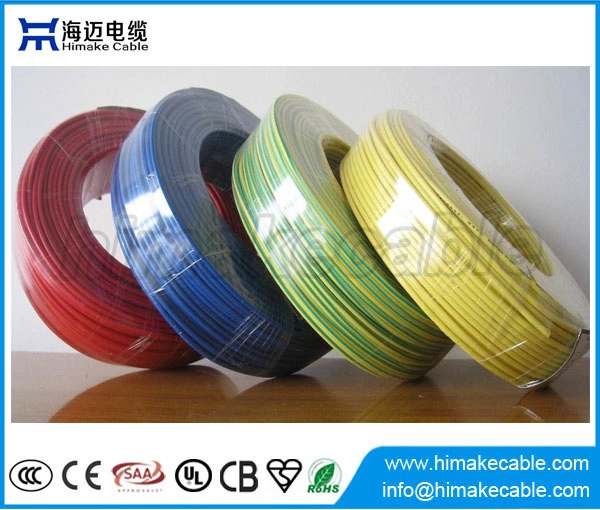

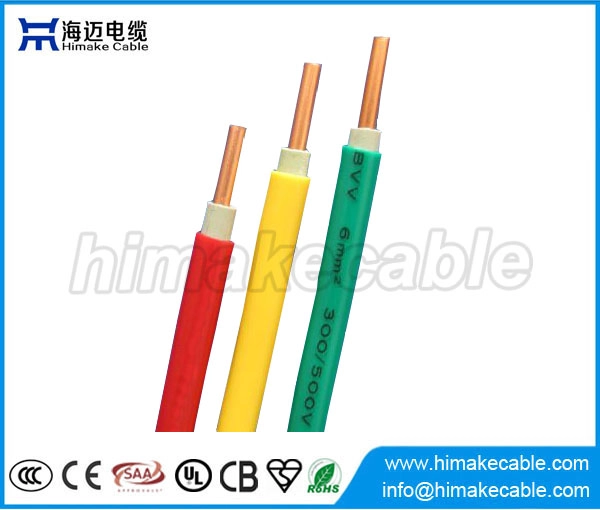

Single core insulated and sheathed Electrical Wire Cable 300/500V 450/750V
- Rated voltage: 300/500V,450/750V;
- Conductor: pure annealed copper
- Insulation: PVC,FR-PVC
- Sheath: PVC,FR-PVC
- Package: 100 meters per roll, or as per requirement
- Main product model: BVV,BVVR, H05VV-U, H07VV-U,H05VV-R,H07VV-R,BS6004 6491X
- Product standard: IEC60277, BS6004, VDE0281, GB/T 502
- Certificate: CCC,CE,CB,BS,SAA,SGS
- Leat time: 15~25 working days, it depends the order quantity
- Price term: FOB, CFR, CIF,EX-Works
- Payment term:T/T,LC at sight,West Union
- MOQ:10000 meters, trial order can be available.
- Shipment: Express, FCL, LCL, by sea or by air

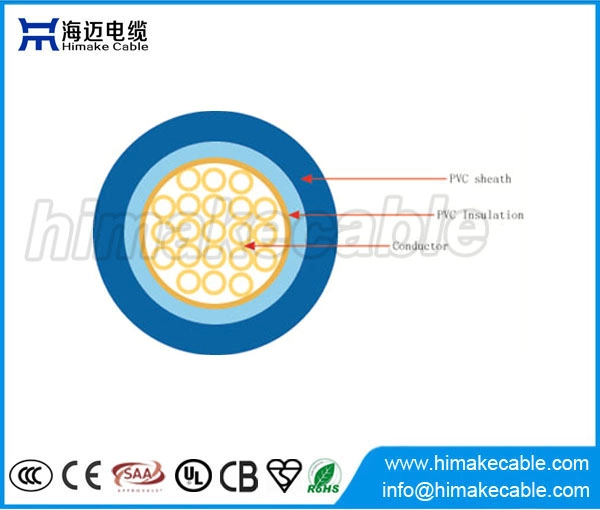

Product Description:
Nominal Voltage: 300/500V, 450/750V
Conductor: Class 1 or Class 2 plain annealed copper or aluminum, solid type or strand type
Conductor nominal cross section area: 1.0~300sqmm
Insulation: PVC, flame retardant PVC
Insulation color: Red, Blue, Brown, Grey, Black, Blue, Yellow, White, Green/Yellow or other color requested
Max. operating temperature: 70℃, 90℃, 105℃
Package: 100 meters per roll, or as per requirement
Main product model: BVV,BVVR, H05VV-U, H07VV-U,H05VV-R,H07VV-R, BS6004 6491X
Product standard: IEC60277, BS6004, VDE0281, GB/T 5023, IEC60332
Product characteristics:
High temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.
Product application:
The cables are used for general power
supply and distribution purpose, as building wire for power, lighting, etc in
house or outside house, and power supply to daily electrical appliance,
suitable for use in conduit and for fixed, protected installation.
Product parameter: (more details please email us: info@himakecable.com)
|
Nominal cross section (mm2) |
Insulation thickness (mm) |
Sheath thickness (mm) |
Approx. Overall diameter (mm) |
Min. insulation resistance at 70℃ (MΩ•km) |
Approx. weight (Copper) (kg/km) |
|
1×1.0 |
PVC/0.6 |
PVC/0.8 |
4.3 |
0.011 |
26 |
|
1×1.5 |
PVC/0.7 |
PVC/0.8 |
4.8 |
0.011 |
33 |
|
1×2.5 |
PVC/0.8 |
PVC/0.8 |
5.4 |
0.01 |
44 |
|
1×6.0 |
PVC/0.8 |
PVC/0.9 |
6.6 |
0.007 |
84 |
|
1×10 |
PVC/1.0 |
PVC/0.9 |
8.2 |
0.007 |
138 |
|
1×16 |
PVC/1.0 |
PVC/0.9 |
9.0 |
0.0050 |
204 |
|
1×25 |
PVC/1.2 |
PVC/1.0 |
11.7 |
0.0050 |
315 |
|
1×35 |
PVC/1.2 |
PVC/1.1 |
12.9 |
0.0040 |
415 |
|
1×50 |
PVC/1.4 |
PVC/1.3 |
15.2 |
0.0045 |
589 |
|
1×70 |
PVC/1.4 |
PVC/1.4 |
16.9 |
0.0035 |
790 |
Product Advantages:
1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.
2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.
Production equipments
Products Quality inspection equipments
3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.
4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.
5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams,etc.
