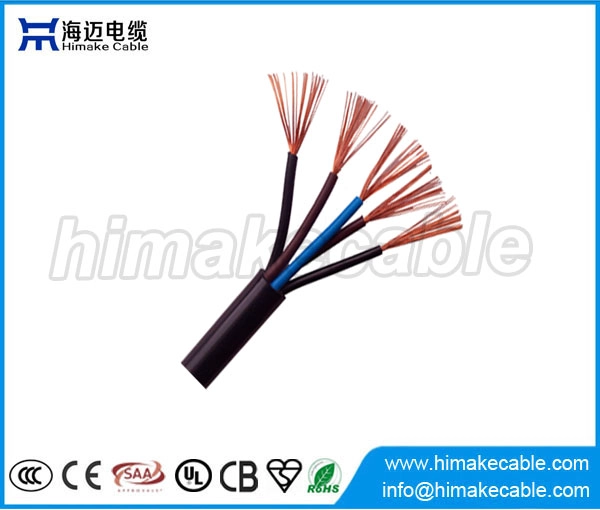

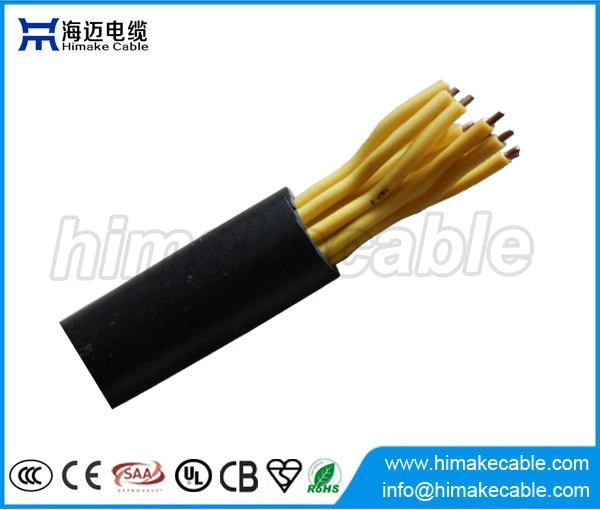

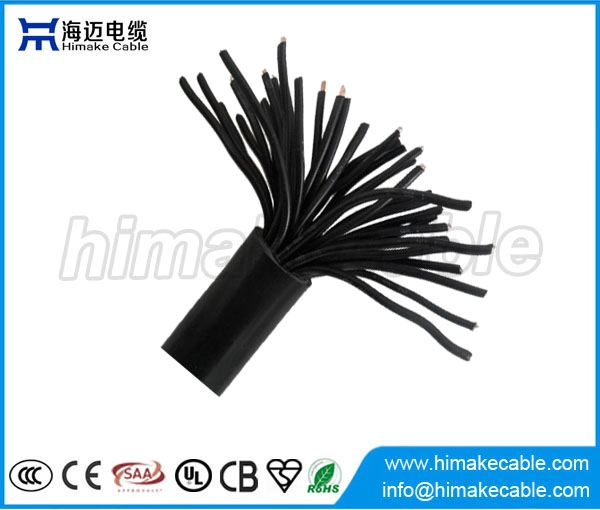

Product Description:

Nominal Voltage: 450/750V

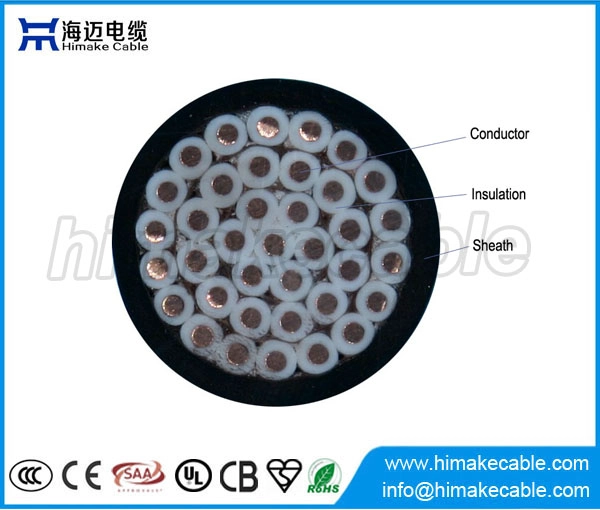

Conductor: Class 1 solid or class 2 strand conductor, or Class 5 flexible conductor, pure annealed copper

Conductor nominal cross section area: 0.75~10sqmm

Insulation: PVC, flame retardant PVC, Rohs compliant PVC

Insulation color: less than 5 cores it is color identification, more than 5 cores, it is yellow, black, white, blue with figure

Sheath: PVC, flame retardant PVC, Rohs compliant PVC

Sheath color: black, grey or as per request

Max. operating temperature: 70℃, 90℃

Package: 100 meters per roll for small size cable, wooden drum for big size cable or as per requirement

Main product model: KVV, KVVR, YY

Product standard: IEC60277, BS6500, VDE0250, GB/T9330, IEC60332

Product characteristics：

High temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.

Product application：

It applies to controlling, monitoring and protective system, such as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines as well as in plant construction.

Product parameter (450/750V)：

(more details please email us: info@himakecable.com)

Product Advantages:

1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.

2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

   Production equipments

 Products Quality inspection equipments

3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.

4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.

5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.
