Screened data transmission cable PiMF Li2YCY RS422 RS485 interface wiringScreened data transmission cable PiMF Li2YCY RS422 RS485 interface wiringScreened data transmission cable PiMF Li2YCY RS422 RS485 interface wiringScreened data transmission cable PiMF Li2YCY RS422 RS485 interface wiring

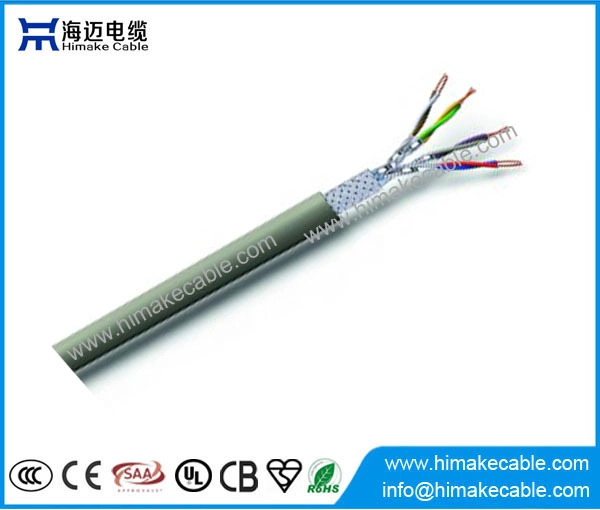

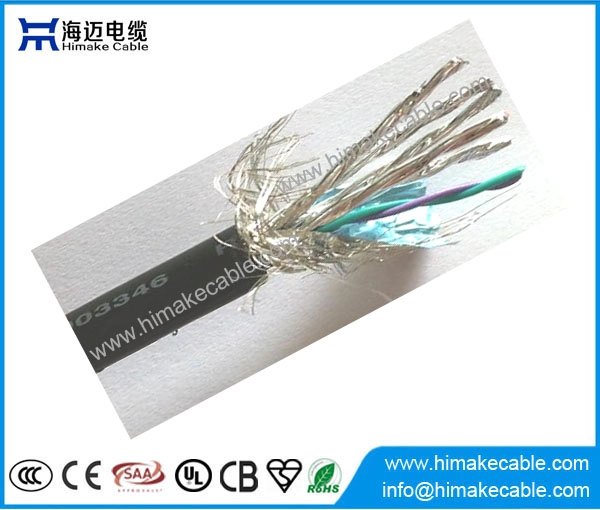

Screened data transmission cable PiMF Li2YCY RS422 RS485 interface wiring

  • Screened data transmission cable PiMF Li2YCY RS422 RS485 interface wiring
  • Conductor: copper or tinned copper
  • Insulation: PVC,PE,LSZH,Rubber
  • Individual shield: twisted pairs in metal foil with copper or tinned copper drain wire
  • Overall screen: braiding screen, copper tape screen, aluminum tape screen
  • Sheath: PVC, PE, LSZH, Rubber
  • Max. operating temperature: 70℃, 90℃
  • Package: 100 meters per roll, wooden drum or as per requirement
  • Main product model: PiMF Li2YCY, RS422, RS485,Instrument cable, Instrumentation cable, control cable
  • Product standard: IEC60277, BS5308, VDE0812, IEC60332, DIN47100
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 20~30 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.

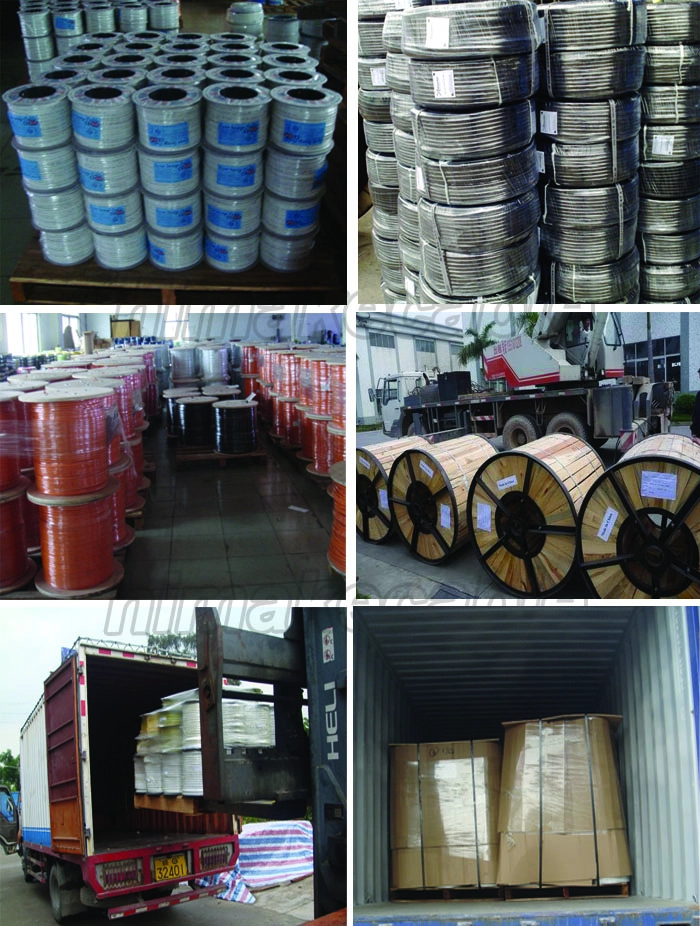

  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

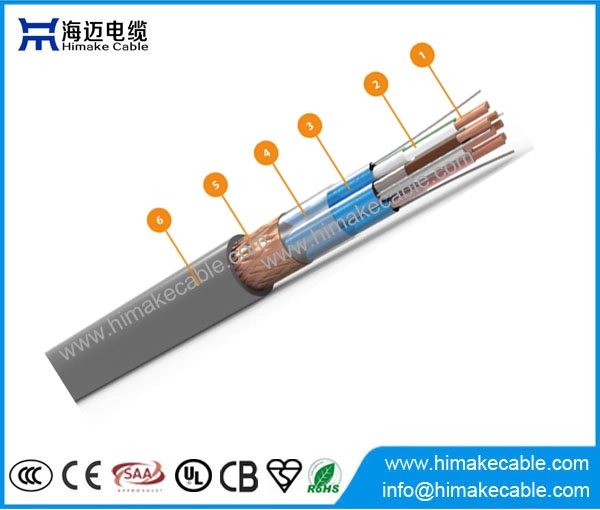

Screened data transmission cable PiMF Li2YCY RS422 RS485 interface wiring 300/500V

Nominal voltage:300/500V

Conductor:bare copper, or tinned copper

Conductor nominal cross section area: 0.5~2.5sqmm

Twisted pairs:1~48 pairs

Insulation: PVC, PE, LSZH, Rubber

Pairs indentification:Black with white numbers or as per DIN 47100 colors groups

Individual shield:Metal foil with tinned copper drain wire

Overall shield:Metal foil with tinned copper wires braiding or copper wires braiding

Sheath: PVC, LSZH, Rubber

Sheath color:grey or black or as per request

Operating temperature range:-40°C~90°C

Package: 100 meters per roll, wooden drum, or as per requirement

Main product model:PiMF Li2CYCY, RS422, RS485

Product standards:IEC60227, BS5308, VDE0812, IEC60332, DIN47100

Application:                                                     

Screened data transmission cable Li2YCY PiMF with individual screening of the pairs in particularly suitable for wiring data systems and controls in large industrial plants, for the transmission of sensitive signals and high bit rates for enhanced requirements in near-end cross-talk attenuation and high electrical interference in the circuits. It can be used for measurement value transmission and serial 2-wire interfaces.

Cables of this type are intended for limited flexible use, and for fixed installation in dry or damp interiors.



Product Advantages:                                           

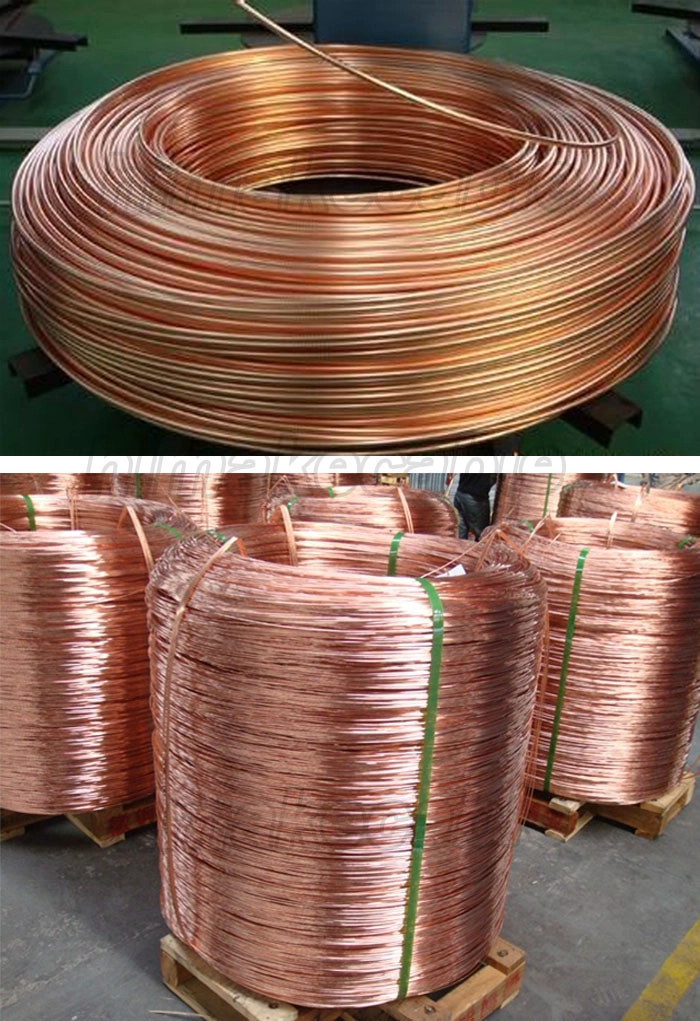

1. The conductor is made of new pure annealed copper or tinned copper,ensuring a good electrical properties and a very good conductivity.



2. We are a veryprofessional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

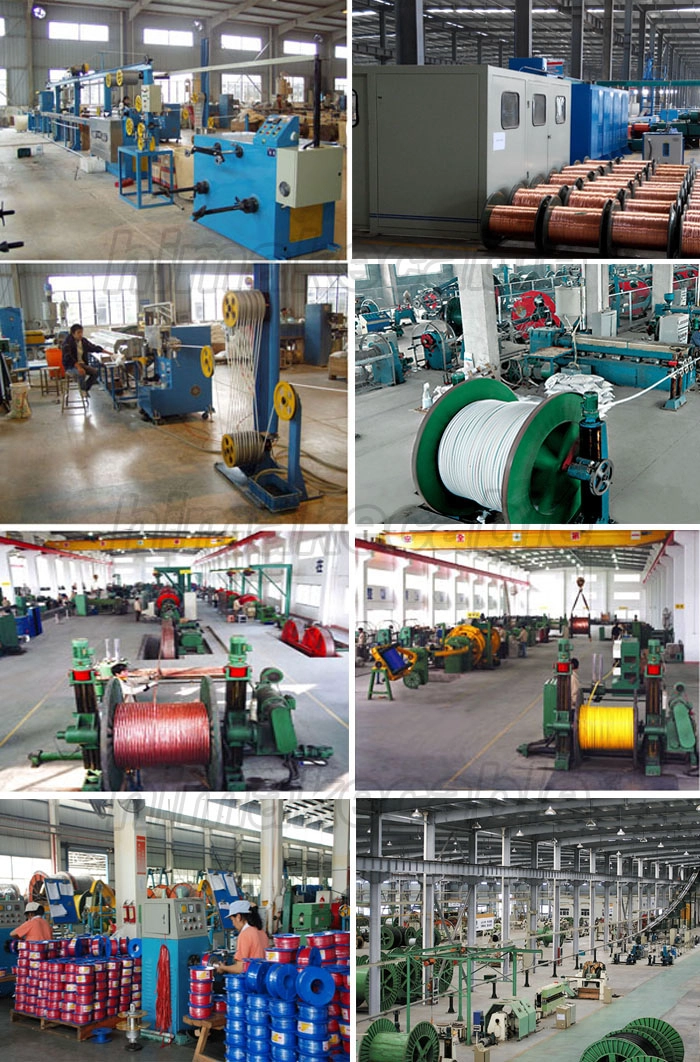

Production equipments

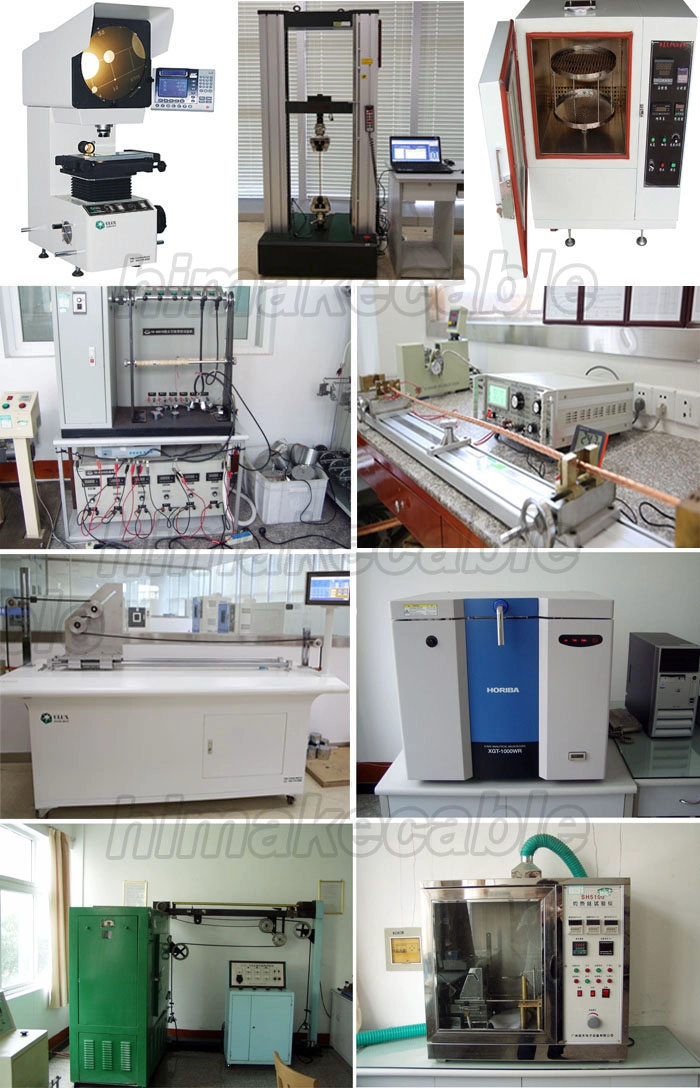

Products Quality inspection equipments



3. We have more than15 years' export experience and exported products tomore than 60 countries over the world with a very good reputation internationally.













Himake International Industrial Co., Ltd.

Tel:0086 150 1259 7988

Wechat:0086 1501259 7988

Contact Person:Bill Zhou

PDF Show:PDF
