PVC Control Cable 0.6/1KV AS/NZS
- Rated voltage: 0.6/1KV
- Conductor: pure annealed copper, strand type
- Insulation: V-90 PVC
- Sheath: 5V-90 PVC
- Max. operating temperature: 90℃
- Package: wooden drum, or as per requirement
- Product standard: AS/NZS5000.1
- Certificate: SAA
- Leat time: 15~25 working days, it depends the order quantity
- Price term: FOB, CFR, CIF,EX-Works
- Payment term:T/T,LC at sight,West Union
- MOQ:10000 meters, trial order can be available.
- Shipment: Express, FCL, LCL, by sea or by air
Product Description:
Nominal Voltage: 0.6/1KV
Conductor: Class 2 plain annealed copper, strand copper
Conductor nominal cross section area: 1.5sqmm, 2.5sqmm
Cores: 2C~50C+E
Insulation: V-90 PVC
Insulation color: white with black number + green/yellow, or black with white number + green/yellow
Armore (optional): steel wire armore
Sheath: 5V-90 PVC
Sheath color: Orange, or as per requirement
Max. operating temperature: 90℃

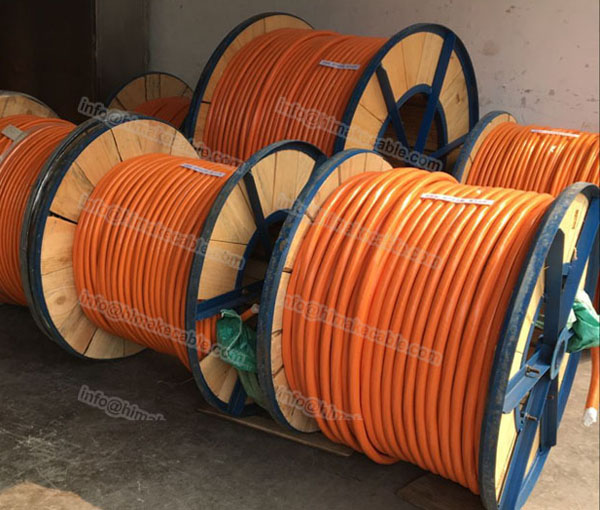

Package: wooden drum, or as per requirement
Main product model: PVC control cable
Product standard: AS/NZS5000.1
Product characteristics:
High mechanical strength resistance (armored type), High temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.
Product application:
For control circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for commercial, industrial, mining and electricity authority systems where not subject to mechanical damage (unarmored type) or where mechanical damage may occur (armored type), also suitable for glanding.
Product parameter: (more details please email us: info@himakecable.com)
|
Number of cores (mm2) |
Conductor structure (mm) |
Nominal overall diameter (mm) |
Approx. cable weight (kg/km) |
|
5×1.5+E |
7/0.50 |
13.1 |
220 |
|
6×1.5+E |
7/0.50 |
13.1 |
240 |
|
8×1.5+E |
7/0.50 |
15.4 |
300 |
Product Advantages:
1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.
2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.
Production equipments
Products Quality inspection equipments
3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally and SAA certificate.
4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.
5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams,etc.
