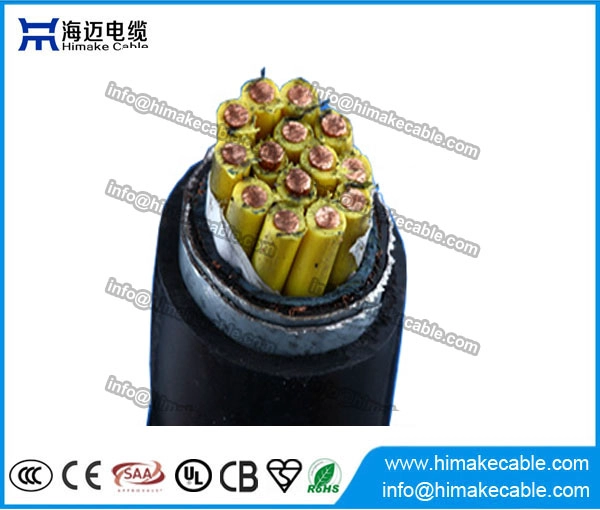

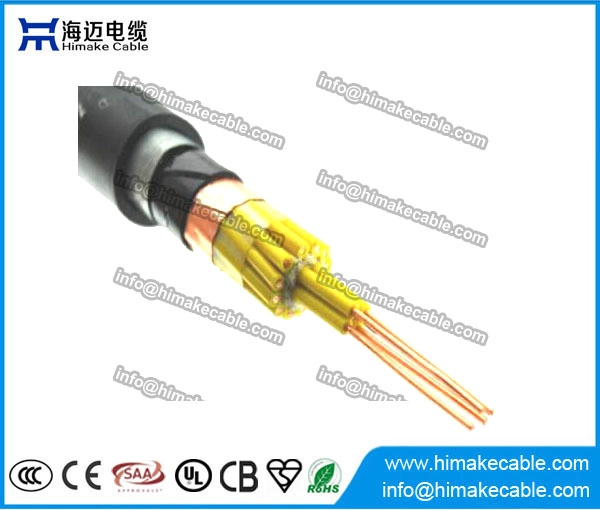

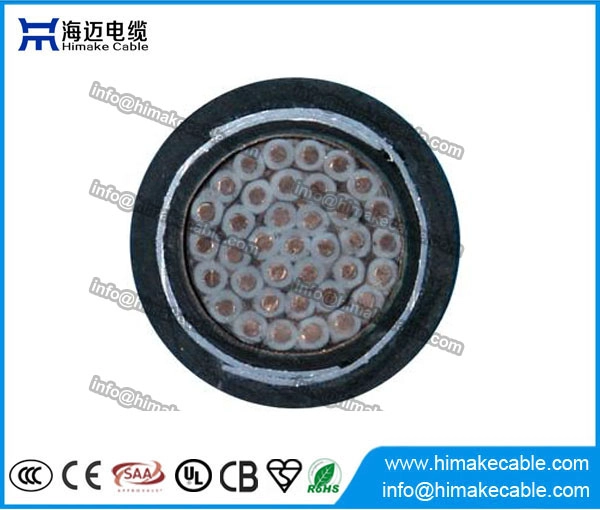

LSZH insulated Steel Tape Armored Control Cable 450/750V 0.6/1KV

  • Nominal Voltage: 450/750V, 0.6/1KV
  • Conductor: pure annealed copper
  • Insulation: XLPE, PE, LSZH, LSOH
  • Armore Type: Steel Tape Armore
  • Sheath: PE,LSZH,LSOH
  • Max. operating temperature: 90℃,110℃,125℃,150℃
  • Package: 100 meters per roll, wooden drum or as per requirement
  • Main product model: KYJYJ22,WDZ-KYJYJ22
  • Product standard: IEC60277, BS6500, VDE0250,IEC60332
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

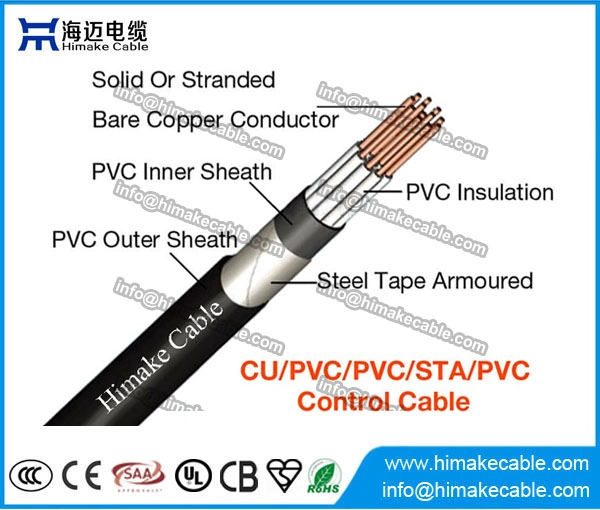

Product Description:


KVV22


Nominal Voltage: 450/750V, 0.6/1KV

Conductor: Class 1 solid or class 2 strand conductor, pure annealed copper

Conductor nominal cross section area: 0.75~10sqmm

Insulation: XLPE, PE, LSZH, LSOH

Insulation color: less than 5 cores it is color identification, more than 5 cores, it is yellow, black, white, blue with figure

Armore type: Steel Tape Armored

Sheath: PE,LSZH,LSOH

Sheath color: black, grey or as per request

Max. operating temperature: 90℃,110℃,125℃,150℃

Package: 100 meters per roll for small size cable, wooden drum for big size cable or as per requirement

Main product model: KYJYJ22,WDZ-KYJYJ22

Product standard: IEC60277, BS6500, VDE0250, GB/T9330, IEC60332


Product characteristics:

The cable can be installed underground, and high temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

It applies to controlling, monitoring and protective system and installed underground directly, such as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines as well as in plant construction.


Product parameter (450/750V):

(more details please email us: info@himakecable.com)

cross section

Insulation thickness

(mm)

Sheath thickness

(mm)

Approx. overall diameter (mm)

Approx. weight

(kg/km)

(mm2)

450/750V

0.6/1KV

450/750V

0.6/1KV

450/750V

0.6/1KV

450/750V

0.6/1KV

2×4

PVC/0.8

PVC/1.0

PVC/1.5

PVC/1.8

16.9

18.3

656

725

2×6

PVC/0.8

PVC/1.0

PVC/1.5

PVC/1.8

17.9

19.3

744

816

2×10

PVC/1.0

PVC/1.0

PVC/1.7

PVC/1.8

21.7

21.9

1019

1028

3×2.5

PVC/0.8

PVC/0.8

PVC/1.5

PVC/1.8

16.5

17.1

634

657

3×4

PVC/0.8

PVC/1.0

PVC/1.5

PVC/1.8

17.5

19

727

803
