Home > Products > New Energy Cable > UL certificated EV Cable EVE C.....
UL certificated EV Cable EVE Cable 600VUL certificated EV Cable EVE Cable 600VUL certificated EV Cable EVE Cable 600VUL certificated EV Cable EVE Cable 600V

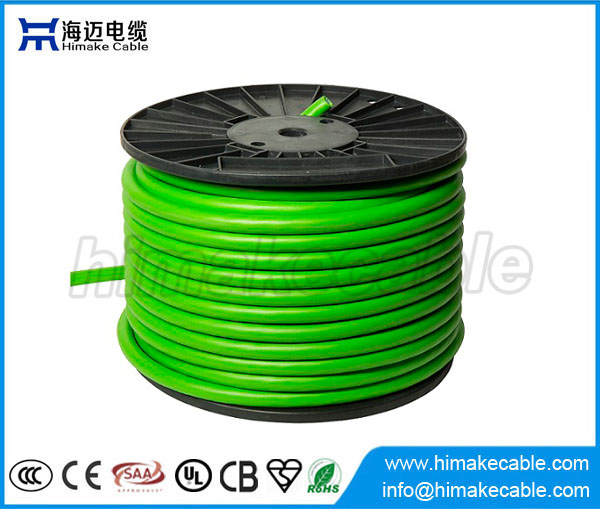

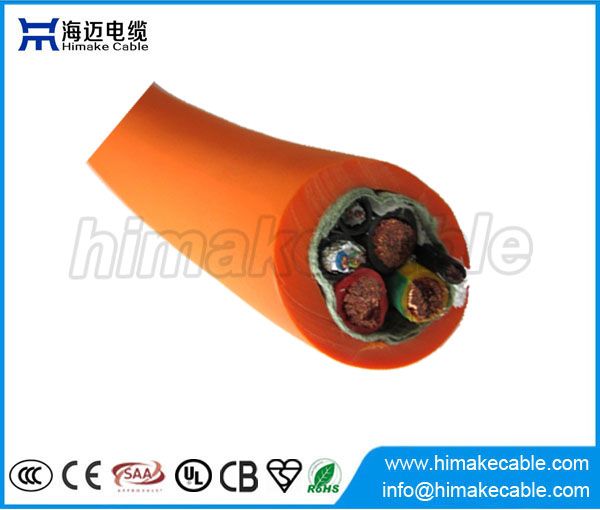

UL certificated EV Cable EVE Cable 600V

  • Rated voltage: 600V
  • Conductor: bare or tinned copper conductor, as per IEC60228
  • Insulation: TPE
  • Inner Sheath: TPE, it is necessary for screen shield type (optional)
  • Shield: tinned copper braiding screen, the coverage is more than 85% (optional)
  • Outer sheath: TPE
  • Main models: EVE, EVT
  • Standard: UL 62
  • Certificate: TÜV, UL
  • Leat time: 25~35 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available
  • Shipment: Express, FCL, LCL, by sea or by air

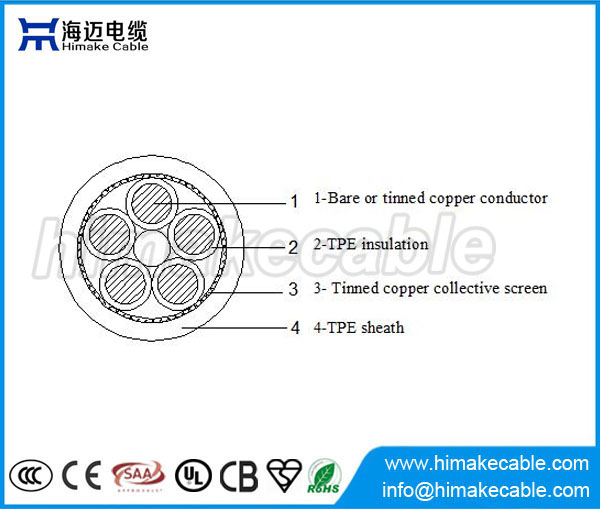

Product Description:

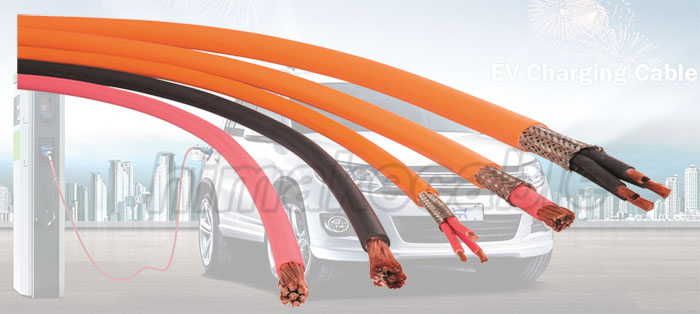

EV cable


Rated voltage: 600V

Conductor: bare or tinned copper conductor, as per IEC60228

Conductor size range:  18AWG to 500Kcmil

Insulation: TPE

Cores: 2 cores or more

Insulation color: blue, black, yellow, green/yellow, or as per requirement

Filler: fore multi cores, if necessary

Inner Sheath: TPE, it is necessary for screen shield type (optional)

Shield: tinned copper braiding screen, the coverage is more than 85% (optional)

Outer Sheath: TPE

Sheath color:  normally black or Orange, or as per requirement

Main models: EVE, EVT

Package:  100 meters per roll, or plastic reel, or wooden drum, or as per requirement

Max. operating temperature: normal 90℃, 105℃, low temperature: -40℃

Standard:  UL 62


Product characteristics:

The cable has excellent performance of flexibility, anti-cold, abrasion, oil, acid, water, UV. The cable can pass FT2 flame test (UL2556).


Product Application:

The cable is used for charging equipment for electric vehicles and charging port, or for control systems of charging saturation, safety warning and other control signal transfer function of the vehicle charging and discharging.



Product parameter: (more details please email us: info@himakecable.com)


Cable type

Specification

Conductor structure(mm)

Insulation diameter (mm)

Reference OD. (mm)

EVE

2×18AGW

16/0.254

2.8±0.1

9.8

EVE

2×12AGW

65/0.254

4.8±0.1

13.8

EVE

2×6AGW

266/0.254

8.4±0.2

23.4

EVE

3×18AGW

16/0.254

2.8±0.1

10.2

EVE

3×12AGW

65/0.254

4.8±0.1

15.0

EVE

3×10AGW

105/0.254

5.5±0.1

16.5

EVE

3×6AGW

266/0.254

8.4±0.2

24.8



Product Advantages:


1. The conductor is made of new pure annealed copper or tinned copper, ensuring a good electrical properties and a very good conductivity.


Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.


   Production equipments


Production equipments



 Products Quality inspection equipments


Quality inspection equipment


3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.


Roll on pallet


products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.


Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams,etc.


Public activities
