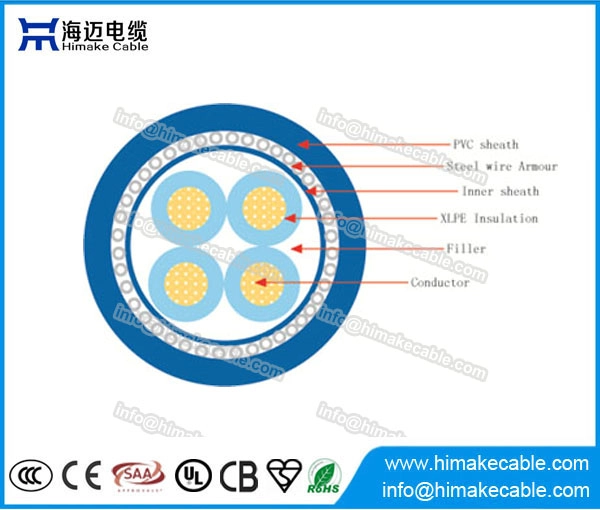

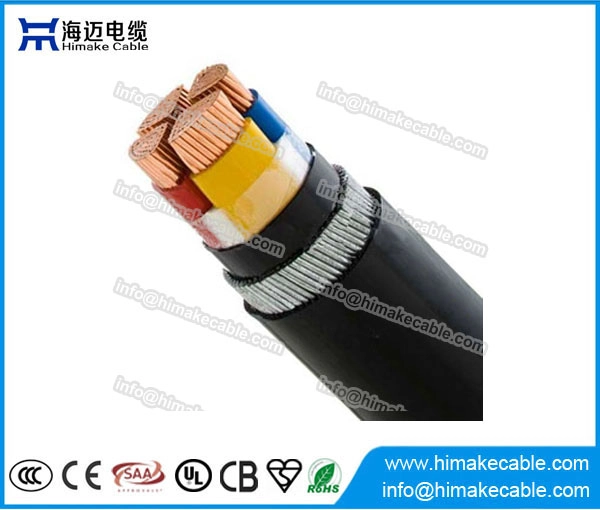

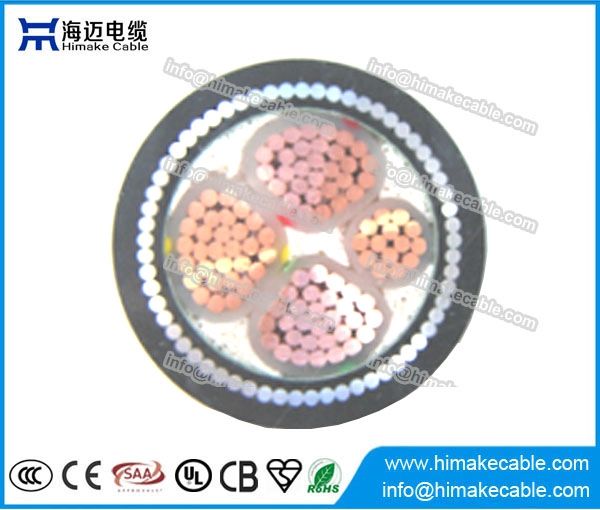

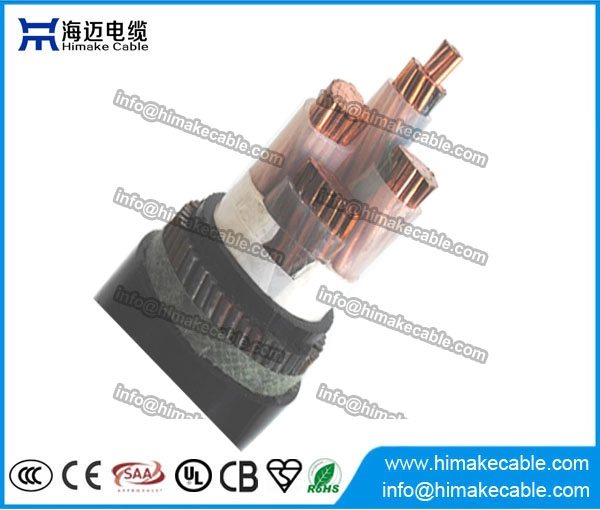

Steel wire armored XLPE insulated Power Cable 0.6/1KV

  • Nominal Voltage: 0.6/1KV
  • Conductor: Class 1 solid or class 2 strand conductor, pure annealed copper
  • Insulation: XLPE
  • Armor: steel wire armor for multi-cores, aluminum tape armor for single core
  • Sheath: PVC, flame retardant PVC, Rohs compliant PVC
  • Max. operating temperature: 90℃
  • Package: wooden drum or as per requirement
  • Main product model: YJV32, ZR-YJV32
  • Product standard: IEC60502, BS7870, VDE0276, GB/T12706, IEC60332
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:1000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air
Product Description:

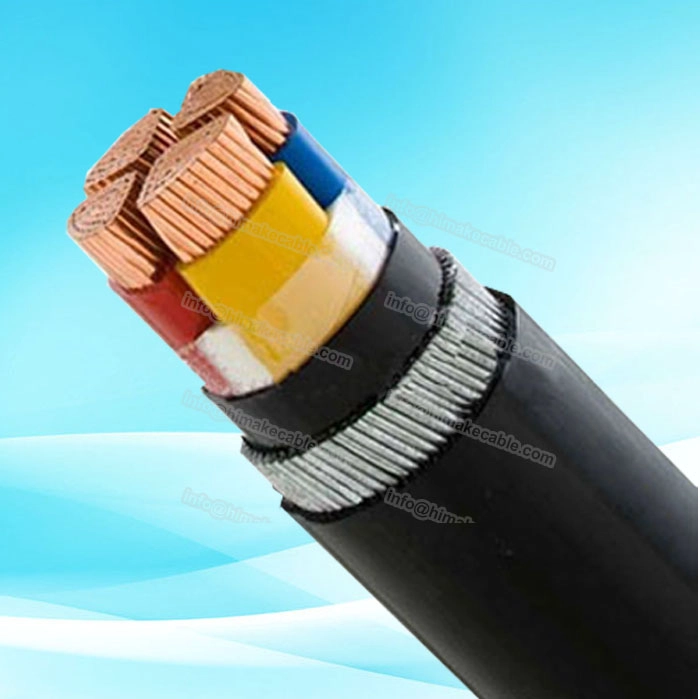

YJV32


Nominal Voltage: 0.6/1KV

Conductor: Class 1 solid or class 2 strand conductor, pure annealed copper

Conductor nominal cross section area: 1.5~1000sqmm

Insulation: XLPE

Insulation color: 2C: red + blue, 3C: red + yellow + green, 4C: red + yellow + green + blue, 5C: red + yellow + green + blue + black, the identification method is with color tape normally

Armor: steel wire armor for multi-cores, aluminum wire armor for single core

Sheath: PVC, flame retardant PVC, Rohs compliant PVC

Sheath color: black or as per request

Max. operating temperature: 90℃

Package: wooden drum or as per requirement

Main product model: YJV32, ZR-YJV32

Product standard: IEC60502, BS7870, VDE0276, GB/T12706, IEC60332


Product characteristics:

High temperature resistance and low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

The cables can be fixedly laid in the places where cables can be protected from much strong extraneous mechanical force to a certain degree, such as indoor, aerial, cable conduit tunnel or direct burying for power transmission and distribution line project in rated A/C UO/U at 0.6/1KV and below.


Product parameter:  (more details please email us: info@himakecable.com)


Cross

Section

(mm2)

XLPE Insulation thickness

(mm)

Armour wire dia. (mm)

PVC Sheath thickness

 (mm)

Approx. Outer diameter

(mm)

Weight approx (Kg/Km)

3x16+10

0.7/0.7

1.25

1.7

23

1180

3x25+16

0.9/0.7

1.6

1.7

26.1

1750

3x35+16

0.9/0.7

1.6

1.8

27.9

2100

3x50+25

1.0/0.9

1.6

1.9

31.2

2750

3x70+35

1.1/0.9

2

2

36.6

3450

3x95+50

1.1/1.0

2

2.1

41

4900

3x120+70

1.2/1.1

2

2.2

45.3

6040

3x150+70

1.4/1.1

2.5

2.4

50

7590

3x185+95

1.6/1.1

2.5

2.5

55.3

9130


Product Advantages:

1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.

Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

   Production equipments

Production equipments



 Products Quality inspection equipments

Quality inspection equipment


3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.


wooden drum



products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.

Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.

Public activities
