Single core PVC insulated solid copper electric wire 300/500V 450/750V

  • Rated voltage: 300/500V,450/750V;
  • Conductor: pure annealed copper, solid type, class 1 conductor
  • Insulation: PVC,FR-PVC
  • Max. operating temperature: 70℃, 90℃, 105℃
  • Package: 100 meters per roll, or as per requirement
  • Main product model: BV, H05V-U, H07V-U
  • Product standard: IEC60277, BS6004, VDE0281, GB/T 502
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

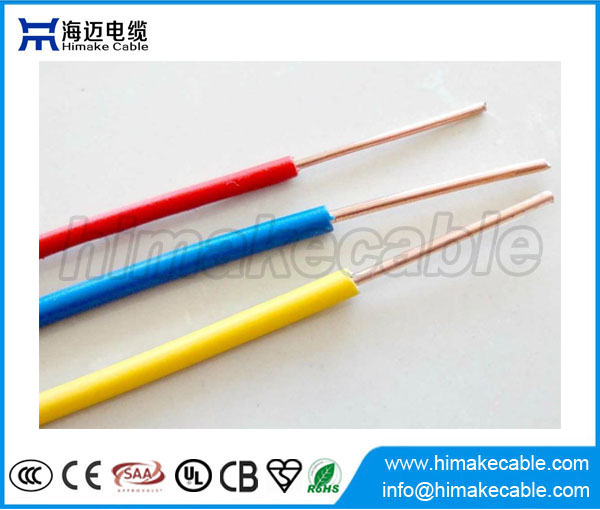

single core insulated electric wire

Nominal Voltage: 300/500V, 450/750V

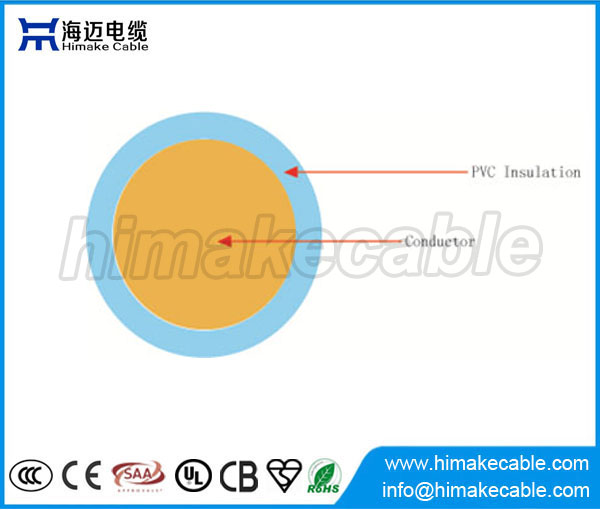

Conductor: Class 1 or Class 2 plain annealed copper, solid copper

Conductor nominal cross section area: 0.5~10sqmm

Insulation: PVC, flame retardant PVC

Insulation color: Red, Blue, Brown, Grey, Black, Blue, Yellow, White, Green/Yellow or other color requested

Max. operating temperature: 70℃, 90℃, 105℃

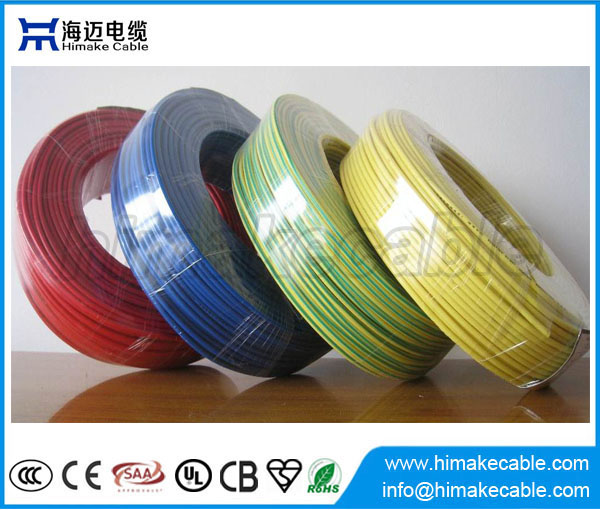

Package: 100 meters per roll, or as per requirement

Main product model: BV, BLV, BLVR,H05V-U, BS6004 6491X

Product standard: IEC60277, BS6004, VDE0281, GB/T 5023


Product characteristics:

High temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

The cables are used for general power supply and distribution purpose, as building wire for power, lighting, etc in house, and power supply to electrical appliance, suitable for use in conduit and for fixed, protected installation.


Product parameter:  (more details please email us: info@himakecable.com)

Nominal cross section

(mm2)

Conductor type

Insulation thickness

(mm)

Max. Overall diameter

(mm)

Min. insulation resistance at 70℃

(MΩ•km)

Approx. weight (copper)

(kg/km)

1×0.5

Class 1 solid type

PVC/0.6

2.4

0.015

8.1

1×0.75

Class 1 solid type

PVC/0.6

2.6

0.012

10.9

1×1.0

Class 1 solid type

PVC/0.6

2.8

0.011

13.7

1×1.5

Class 1 solid type

PVC/0.7

3.3

0.011

20.0

1×2.5

Class 1 solid type

PVC/0.8

3.9

0.010

31.1

1×4.0

Class 1 solid type

PVC/0.8

4.4

0.0085

45.7

1×6.0

Class 1 solid type

PVC/0.8

4.9

0.0070

65.2

1×10 Class 1 solid type PVC/1.0  6.4  0.0070  112


Product Advantages:


1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.


Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.


   Production equipments


Production equipments



 Products Quality inspection equipments


Quality inspection equipment


3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.


Roll on pallet


products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.


Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams,etc.


Public activities
