Screened PVC insulated and sheathed Flexible Electrical Wire Cable 300/300V 300/500VScreened PVC insulated and sheathed Flexible Electrical Wire Cable 300/300V 300/500VScreened PVC insulated and sheathed Flexible Electrical Wire Cable 300/300V 300/500VScreened PVC insulated and sheathed Flexible Electrical Wire Cable 300/300V 300/500V

Screened PVC insulated and sheathed Flexible Electrical Wire Cable 300/300V 300/500V

  • Nominal Voltage: 300/300V, 300/500V
  • Conductor: Class 5 plain annealed fine copper wire
  • Insulation: PVC, flame retardant PVC, Rohs compliant PVC
  • Sheath: PVC, flame retardant PVC, Rohs compliant PVC
  • Max. operating temperature: 70℃, 90℃
  • Package: 100 meters per roll, or as per requirement
  • Main product model: RVVP, H05VVC4V5-F
  • Product standard: IEC60277, BS6500, VDE0281, GB/T 5023,IEC60332
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

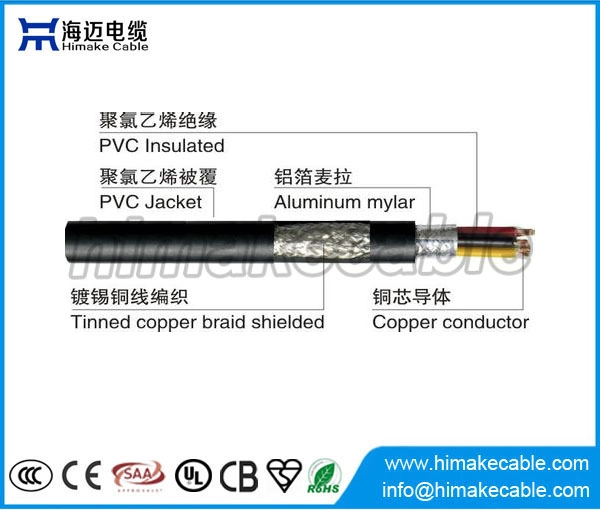

RVVP


Nominal Voltage: 300/300V, 300/500V

Conductor: Class 5 plain annealed fine copper wire

Conductor nominal cross section area: 0.5~6.0sqmm

Insulation: flame retardant PVC, Rohs compliant PVC

Insulation color: Blue, Brown, Grey, Black, red, Green/Yellow or other color requested

Screen material: copper wire, tinned copper wire, aluminum foil with braiding screen

Screen coverage: 40~85%

Sheath: flame retardant PVC, Rohs compliant PVC

Sheath color: black, grey, white, or as per request

Max. operating temperature: 70℃, 90℃

Package: 100 meters per roll, or as per requirement

Main product model: RVVP, H05VVC4V5-F

Product standard: IEC60277, BS6500 VDE0281, GB/T 5023,IEC60332


Product characteristics:

Very flexible for easy bending, high EMI shielding property, high temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

The screened cables are used inside as power or control cables for installations and connections on machine tools or static or dynamic apparatus.


Product parameter: (more details please email us: info@himakecable.com)


Cross section

(mm)

Max. overall diameter (mm)

Approx. weight

(kg/km)

Max. DC resistance of conductor 20℃ (Ω/km)

Min. insulation resistance 70℃ (mΩ•km)

2×2.5

9.0

136.5

7.98

0.008

2×4.0

11.8

209.5

4.95

0.007

2×6.0

13.4

263.2

3.30

0.006

3×0.5

6.6

58.3

39.0

0.012

3×0.75

7.3

76.9

26.0

0.010

3×1.0

8.1

87.6

19.5

0.010

3×1.5

9.1

117.6

13.3

0.009

3×2.5

9.8

169.1

7.98

0.008



Product Advantages:

1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.

Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

   Production equipments

Production equipments



 Products Quality inspection equipments

Quality inspection equipment



3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.


Roll on pallet



products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.

Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.

Public activities
