MV aluminum conductor Steel Tape Armoured Power Cable with voltage 3.6/6KV to 26/35KV

  • Nominal Voltage:  3.6/6KV,6/6KV,6/10KV,8.7/10KV,8.7/15KV,12/20KV,18/30KV,21/35KV,26/35KV
  • Conductor: class 2 strand conductor, pure aluminum
  • Insulation: XLPE
  • Amor Type: Steel Tape Armored
  • Sheath: PVC, flame retardant PVC, Rohs compliant PVC
  • Max. operating temperature:  90℃
  • Package: wooden drum or as per requirement
  • Main product model: YJLV22, ZR-YJLV22
  • Product standard: IEC60502, BS6622, VDE0276, GB/T12706, IEC60332
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:1000 meters, trial order can be available.
  • Shipment:FCL, LCL, by sea

Product Description:

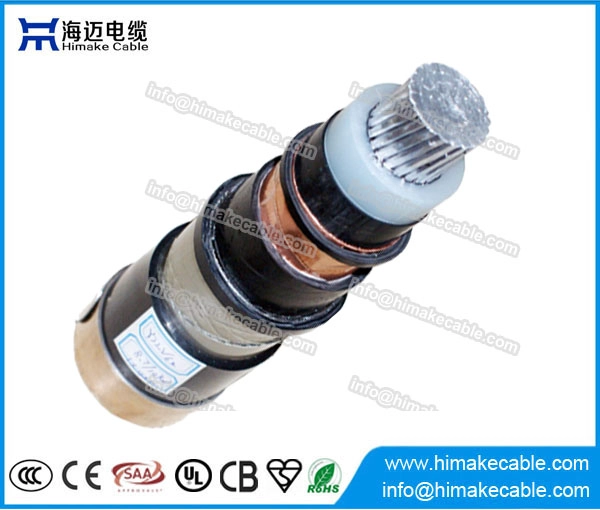

MV YJLV22


Nominal Voltage: 3.6/6KV,6/6KV,6/10KV,8.7/10KV,8.7/15KV,12/20KV,18/30KV,21/35KV,26/35KV

Conductor: class 2 strand conductor, pure aluminum

Conductor nominal cross section area: 25~1000sqmm

Insulation: XLPE

Insulation color: 1C: nature color, 3C: red + yellow + blue, or as request

Shield: Conductor semi-conducting screen + Insulation semi-conducting screen + Metallic screen

Amor type: Steel Tape Armored

Sheath: PVC, flame retardant PVC, Rohs compliant PVC

Sheath color: black or as per request

Max. operating temperature:  90℃

Package: wooden drum or as per requirement

Main product model: YJLV22, ZR-YJLV22

Product standard: IEC60502, BS6622, VDE0276, GB/T12706, IEC60332


Product characteristics:

High temperature resistance and low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

It applies to the transmission and distribution lines with rated voltage up to 26/35 kilovolts, while flame retardant power cable is used in the places with special demands of flame retardant property , where cable is laid directly in ground, outdoors, indoors and in cable ducts.

Product parameter:  (more details please email us: info@himakecable.com)


Cross

Section

(mm2)

XLPE Insulation thickness

(mm)

Approx. Outer diameter

(mm)

Approx. ampacity in air (A)

Approx.

ampacity in ground (A)

Approx.

 weight

 (Kg/Km)

3×25

4.5

50.6

126

154

3358

3×35

4.5

53

151

184

3816

3×50

4.5

56.2

181

218

4494

3×70

4.5

60

225

267

5333

3×95

4.5

64.1

273

318

6359

3×120

4.5

67.5

311

360

7338

3×150

4.5

71.1

353

404

8493

3×185

4.5

75

402

456

9824

3×240

4.5

80.3

473

531

11894

3×300

4.5

86.9

540

598

14826



Product Advantages:

1. The conductor is made of new pure aluminum, ensuring a good electrical properties and a very good conductivity.


aluminum


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

   Production equipments

Production equipments



 Products Quality inspection equipments

Quality inspection equipment


3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.


wooden drum



products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.

Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.

Public activities
