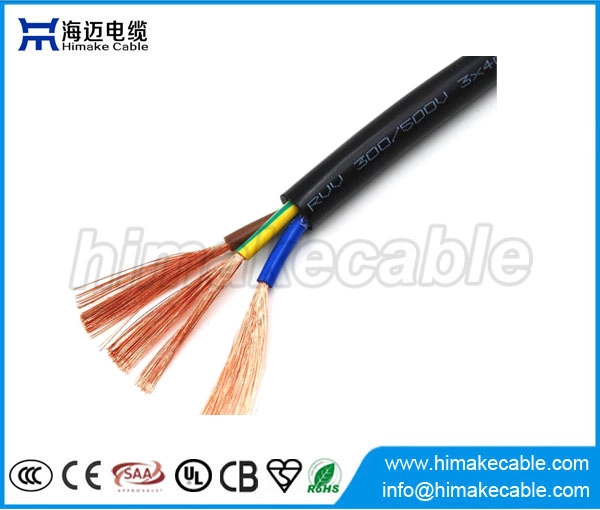

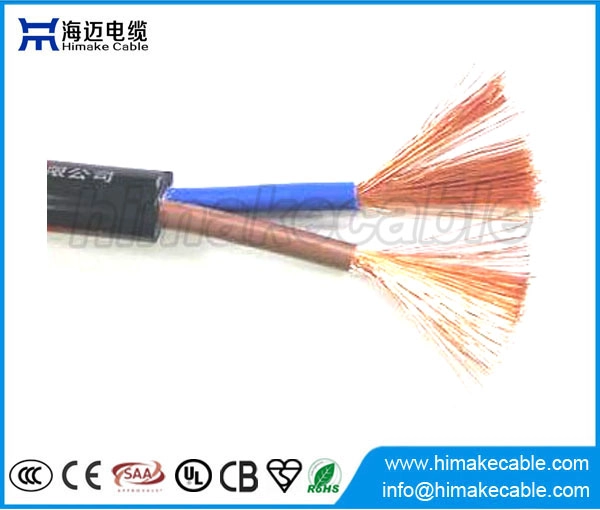

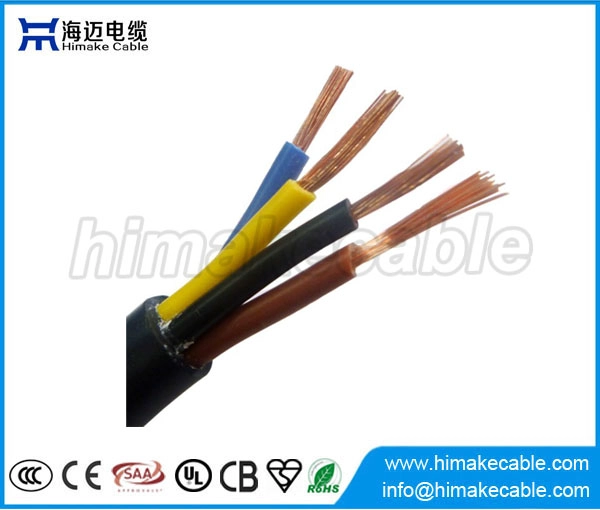

LSZH insulated and sheathed Flexible Electrical Wire Cable 300/500V

  • Nominal Voltage: 300/500V
  • Conductor: Class 5 plain annealed fine copper wire
  • Insulation: XLPE,LSZH, LSOH
  • Sheath: LSZH, LSOH
  • Max. operating temperature: 90℃,  110℃,  125℃,  150℃
  • Package: 100 meters per roll, or as per requirement
  • Main product model: RYJYJ, WDZ-RYJYJ, H05ZZ-F, H07ZZ-F
  • Product standard:BS7211, IEC60332, IEC61034, IEC60754, HD22.9, VDE0282, GB/T19666
  • Certificate: CCC,CE,CB,BS,SAA,SGS,ROHS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

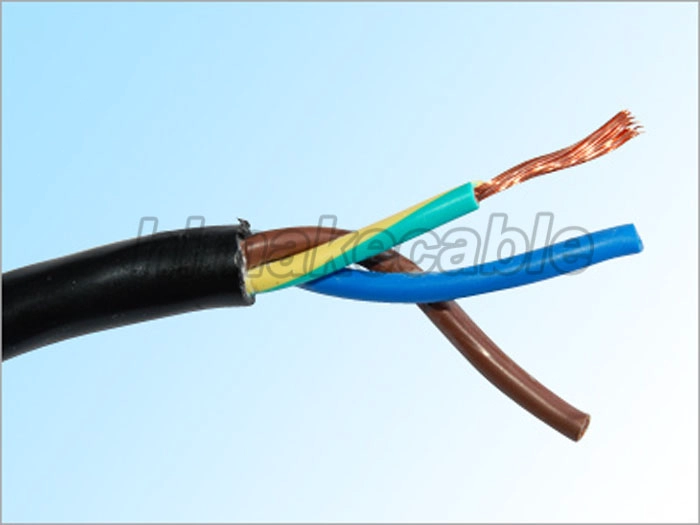

PVC flexible cable


Nominal Voltage: 300/500V

Conductor: Class 5 plain annealed fine copper wire

Conductor nominal cross section area: 0.5~25sqmm

Insulation: XLPE,LSZH, LSOH

Insulation color: Blue, Brown, Grey, Black, red, Green/Yellow or other color requested

Sheath: LSZH, LSOH

Sheath color: black, grey, white, or as per request

Max. operating temperature: 90℃,  110℃,  125℃,  150℃

Package: 100 meters per roll, or as per requirement

Main product model: RYJYJ, WDZ-RYJYJ, H05ZZ-F, H07ZZ-F

Product standard: BS7211, IEC60332, IEC61034, IEC60754, HD22.9, VDE0282, GB/T19666


Product characteristics:

Low smoking halogen free, Very flexible for easy bending, high temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

The cables are used for general power supply and distribution purpose, for switch control, instrumentation panels and for internal connection.


Product parameter: (more details please email us: info@himakecable.com)


conductor cross-section

(mm2)

Kind

Of

conductor

Insulation thickness

(mm)

Sheath thickness

(mm)

Average max. outer-diameter (mm)

Product approximate weight (kg/km)

Min. insulated resistance (MΩ.km)

2×0.75

5

PVC/0.6

PVC/0.8

7.6

49.24

0.011

2×1

5

PVC/0.6

PVC/0.8

8

56.59

0.01

2×1.5

5

PVC/0.7

PVC/0.8

9

74.6

0.01

3×0.75

5

PVC/0.6

PVC/0.8

8

61.23

0.011

3×1

5

PVC/0.6

PVC/0.8

8.4

71.27

0.01

3×1.5

5

PVC/0.7

PVC/0.9

9.8

99.3

0.01

3×2.5

5

PVC/0.8

PVC/1.1

12

150.53

0.009

4×0.75

5

PVC/0.6

PVC/0.8

8.6

75.12

0.011

4×1

5

PVC/0.6

PVC/0.9

9.4

91.72

0.01

4×1.5

5

PVC/0.7

PVC/1.0

11

127.54

0.01

4×2.5

5

PVC/0.8

PVC/1.1

13

187.6

0.009



Product Advantages:

1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.

Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

   Production equipments

Production equipments



 Products Quality inspection equipments

Quality inspection equipment



3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.


Roll on pallet



products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.

Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.

Public activities
