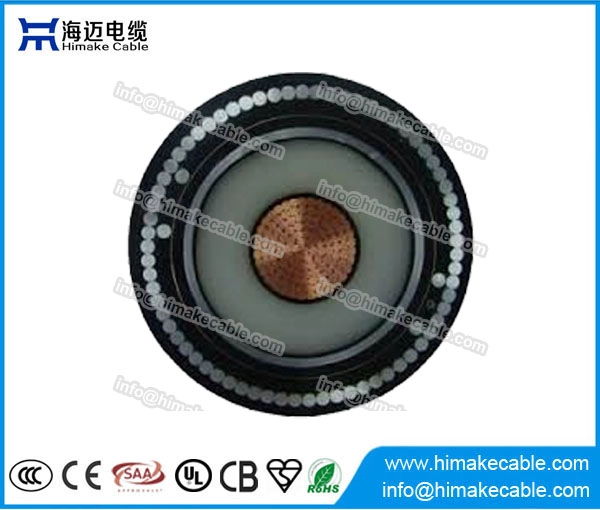

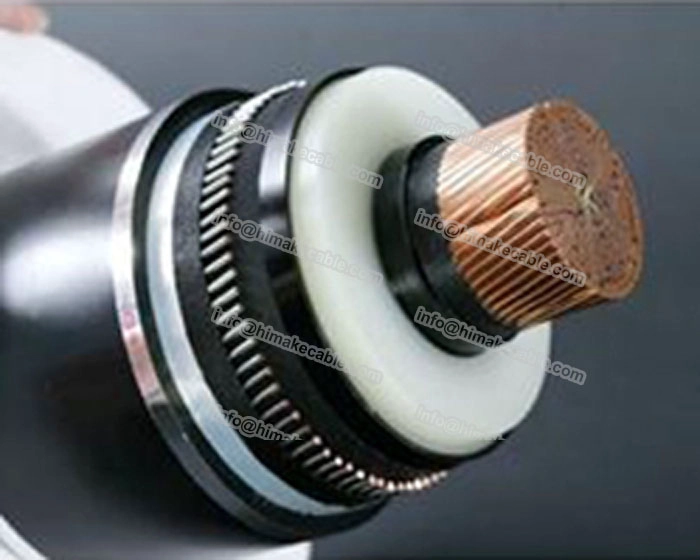

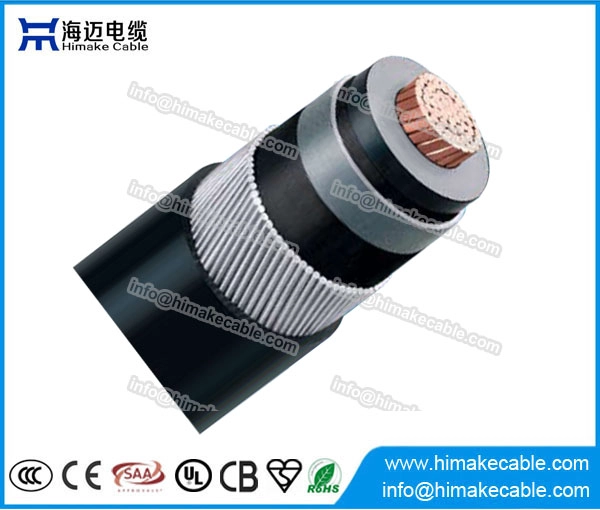

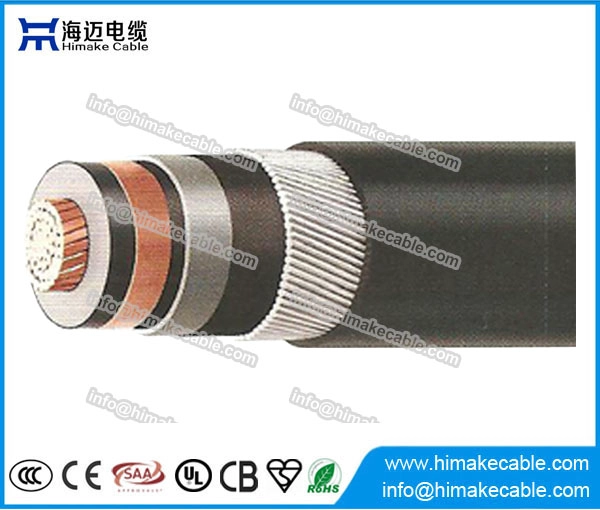

Product Description:

Nominal Voltage:   50/66KV, 64/66KV, 64/110KV, 127/220KV, 290/550KV

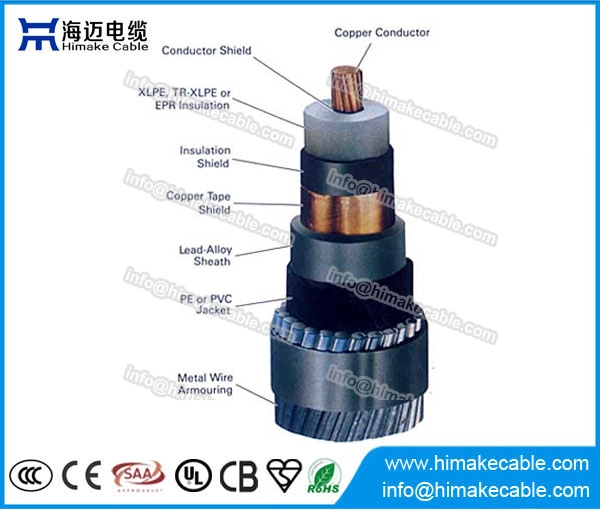

Conductor：Plain circular compacted copper or aluminum conductor for≦800mm2, compacted milkier copper or aluminum conductor with separator tape for＞800mm2

Conductor-screen：Helically applied semi-conductive tape≧500mm2, Extruded semi-conductive cross linked polyethylene

Insulation: Extruded supper clean cross-linked polyethylene

Insulation-screen: Extruded bonded semi-conductive cross linked polyethylene

Block water buffering layer: Helically applied swellable tape

Metallic sheath: Longitudinally applied, Lead sheath; the metallic sheathed is capable of carrying required short circuit current

Armore type: Steel Wire Armored

Asphalt: Black asphalt coating

Jacket and Graphite: Extruded polyethylene or polyvinyl chloride, Graphite coating on the outer jacket.

Conductor nominal cross section area: 240~3000sqmm

Max. operating temperature:  90℃, 105℃

Package: wooden drum or as per requirement

Product standard: IEC 60840:1999

Product characteristics:

The maximum assigned temperature of the cable conductor is 90℃. Short time over current temperature is 105℃.

During having a short circuit, lasting less than 5 seconds, the maximum temperature of the cable conductor shall not be above 250℃.

The minimum bend radius is 25D.

Product application:

This product is applicable to being fixedly laid on the transmission and distribution line of rated voltages from 66kV up to 500kV with the use for power transmission and distribution.

Laying site for instance in tunnel, pipeline and soil to transport electrical energy. Allow for high fall or vertical installation.

Product parameter:  (more detials please email us: info@himakecable.com )

Product Advantages:

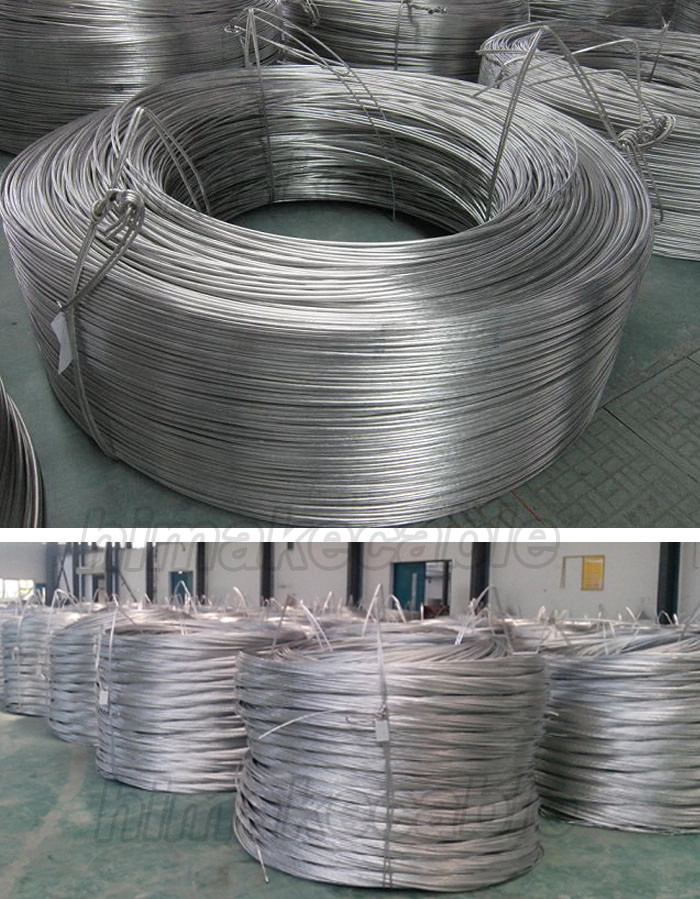

1. The conductor is made of new pure annealed copper and pure aluminum, ensuring a good electrical properties and a very good conductivity.

2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

   Production equipments

 Products Quality inspection equipments

3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.

4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.

5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.
