Fluke passed 1000ft 4 pair solid utp cat 5e cableFluke passed 1000ft 4 pair solid utp cat 5e cableFluke passed 1000ft 4 pair solid utp cat 5e cableFluke passed 1000ft 4 pair solid utp cat 5e cable

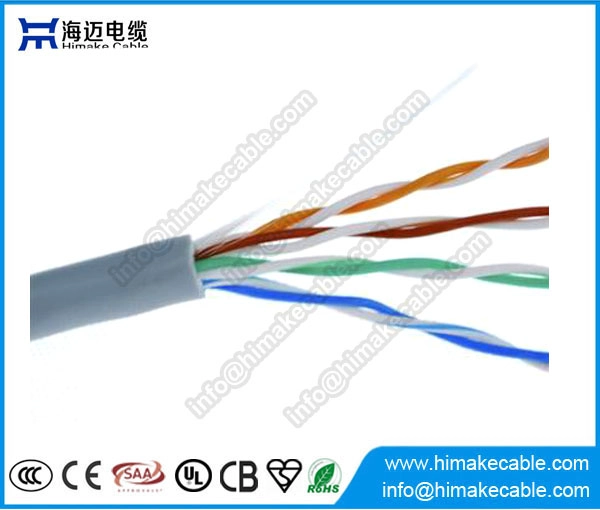

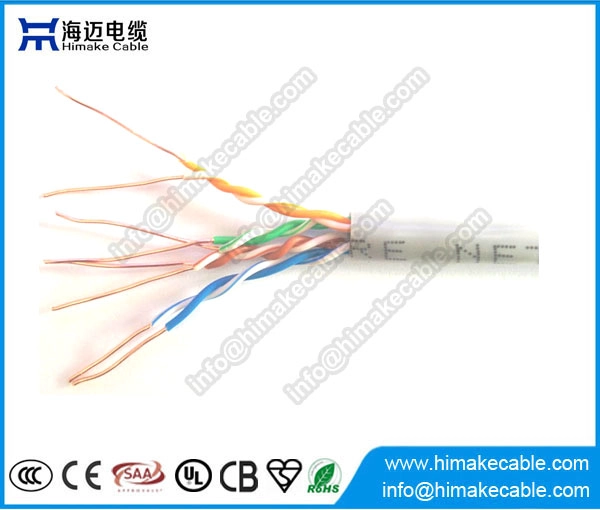

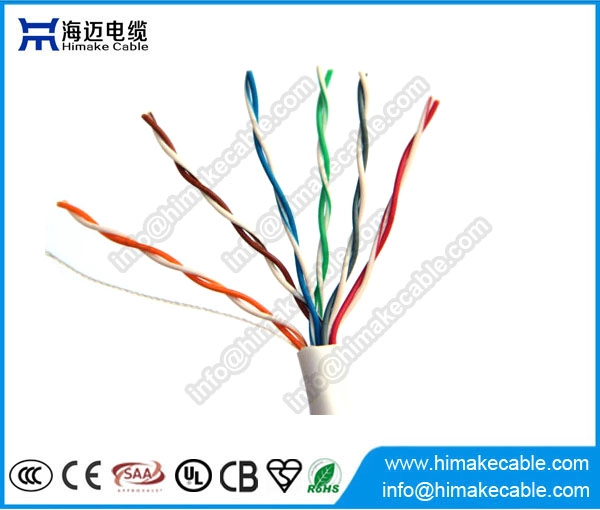

Fluke passed 1000ft 4 pair solid utp cat 5e cable

  • Conductor Size: 24AWG
  • Conductor Material: CCA/BC
  • Nuber Of Conductor: 4 pairs
  • Insulation Material:HDPE
  • Jacket Material: PVC, ROHS PVC, LSZH
  • Operating Temperation: -40 °C - +75 °C
  • Package: 305 meters per box or as per requirement
  • Main product model: Cat5e, HSYV5e, HSYY5e, HSYZ5e
  • Product standard: ISO/IEC11801, IEC61156-2, YD/T1019-2001, ANSI/TIA/EIA-568B, UL444
  • Certificate: CCC,CE,UL,FCC,ISO,ROHS,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:


CAT5E 4 PAIRS


Model

CAT5E CABLE

Conductor Size

24AWG

0.5mm/0.51mm

Conductor Material

CCA/BC

Nuber Of Conductor

4Pair

Shiled

UTP/FTP

Flammability Grade

CMP,CMR

Insulation Material

HDPE

Insulation Diameter

0.91mm

Jacket Material

PVC, ROHS PVC, LSZH

Outer Jacket Diameter

5.3mm

DC Resistance(Max.)

9.5Ω/100m

DC Resistance Imbalance

2.50%

Working Capacitance(Max.)

5.4nF/100m

Insulation Resistance

10000 MΩ.km

Transmission Velocity

65%

Operating Temperation

-40 °C - +75 °C

PVC Jacket Color

As client’s request.

Marking On Jacket

On your request (Print your brand)

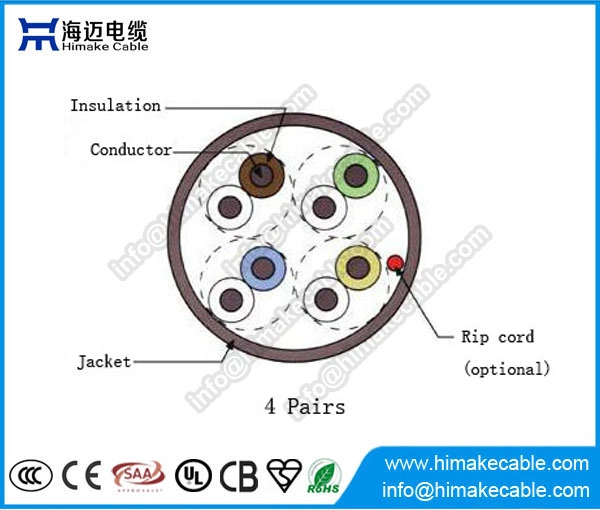

Construcation Draw

305M/Roll UTP Cable 4pr Indoor CAT5E Bulk Cable CMR Rated UL Approval Pull-Out Box Solid BC


Product characteristics:

1. High quality CAT5E cable 4Pair UTP 24AWG solid bare copper 1000ft

2. High-Performance data cable ,application structured cabling, CCTV system , Alarm system , Telecom project etc

3. Exceeds TIA/EIA-568B.2,ISO/IEC 11801 , ETL listed

4. 100Base-TX,100Base-T2 and 100Base-T4 standard

5. Can be used for voice, integrated service data network (ISDN)

6. Long transmission distance, small transmission loss, wear resistance, resistance to pressure


Product application:

1.10/100/1000Mbps Ethernet
2.100VG-AnyLAN
3. Token ring
4. ATM155/ATM622 etc


Packae datas: (more details please email us: info@himakecable.com)


Goods

Packing

Packing(cm)

Packing

Dimension(cm)

Unit.

QTY/Container

Name

Type

GIFTBOX

CARTON

GIFTBOX

CARTON

L

W

H

CBM

20GP

40HQ

UTP CAT5E

IN GIFT BOX

19*35*35

41*37*36

305m/roll

2roll/ctn

41

36

37

0.055

1000

2450

FTP/SFTP CAT5E

IN GIFT BOX

21*35*35

45*37*37

305m/roll

2roll/ctn

45

37

37

0.062

900

2200

CAT5E OUTDOOR

WOODEN REEL

32*32*22.5

66*35*24

305m/Reel

2reel/ctn

66

35

24

0.055

1000

2400


PACKAGE



STOCK
