ERP insulated and CR sheathed flexible rubber cable H05RN-F, H07RN-F 450/750VERP insulated and CR sheathed flexible rubber cable H05RN-F, H07RN-F 450/750VERP insulated and CR sheathed flexible rubber cable H05RN-F, H07RN-F 450/750VERP insulated and CR sheathed flexible rubber cable H05RN-F, H07RN-F 450/750V

ERP insulated and CR sheathed flexible rubber cable H05RN-F, H07RN-F 450/750V

  • Rated voltage: 300/500V, 450/750V
  • Conductor: wires of annealed copper, plain or tinned
  • Insulation: EPR rubber
  • Insulation color: as per HD308/UNE 21089-1
  • Sheath: CR rubber
  • Sheath color: normally black
  • Max. operating temperature: normal 60℃
  • Standard: IEC60245-4, VDE0282-4, BS, HRN HD 22.4 S3
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

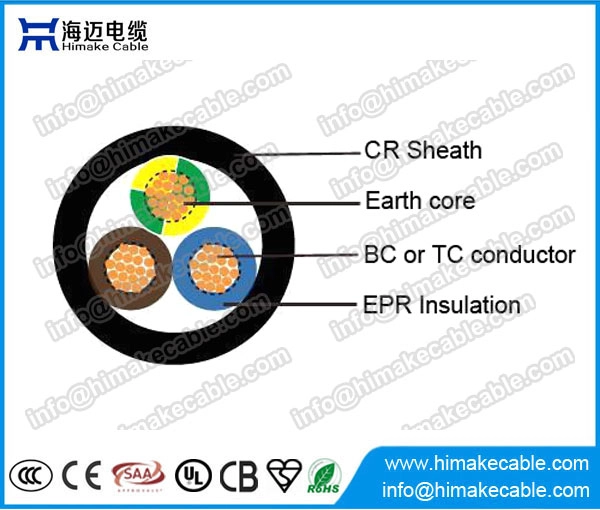

H07RNF


Rated voltage: 300/500V, 450/750V

Conductor: wires of annealed copper, plain or tinned, Class 5 flexible type conductor

Insulation: EPR rubber

Insulation color: 2C: blue+brown, 3C: blue+brown+green/yellow, 4C: brown+black+grey+green/yellow, 5C: blue+brown+grey+black+green/yellow, as per HD308/UNE 21089-1

Sheath: CR rubber

Sheath color: normally black, comments: cables for permanent outdoor use only in black color. Please consult for different colors.

Package: 100 meters per roll, polywooden drum, wooden drum or as per requirement

Max. operating temperature: normal 60℃

Standard: IEC60245-4, VDE0282-4, BS, HRN HD 22.4 S3


Product characteristics:

These insulated and sheathed elastomers materials do not content heavy metals (like lead, cadmium, mercury, chrome, selenium), PBBE(polybromium-biphenyls), CFC/HCFC(chlorofluoryhydrocarbons), asbestos or any health dangerous or hazardous substance. These materials fulfill RoHS Directive 2002/95/EC.

Resistant to Ozone, oxygen, UV rays and good water and rain resistance.


Product application:

For connecting portable electric appliances at medium mechanical stresses, for washing machines, vacuum cleaners, refrigerators, in dry or dump locations, outdoors and indoors and for heating appliances, where the cable is not exposed to the heating radiation.


Product parameter: (more details please email us: info@himakecable.com )


Number and nominal cross-section

Thickness of insulation

Thickness of sheath

Overall diameter

Net weight of copper

Weight

2x1

0,8

1,3

10,0

19

94

2x1,5

0,8

1,5

11,0

27

115

2x2,5

0,9

1,7

13,1

44

163

2x4

1,0

1,8

15,1

72

229

2x6

1,0

2,0

16,8

112

301

3x1

0,8

1,4

10,7

28

122

3x1,5

0,8

1,6

11,9

40

149

3x2,5

0,9

1,8

14,0

66

206

3x4

1,0

1,9

16,2

108

293

3x6

1,0

2,1

18,0

168

400

3x10

1,2

3,3

24,2

294

785

4x1

0,8

1,5

11,9

37

153

4x1,5

0,8

1,7

13,1

53

187

4x2,5

0,9

1,9

15,5

88

267

4x4

1,0

2,0

17,9

144

379

4x6

1,0

2,3

20,0

223

506

4x10

1,2

3,4

26,5

392

953

5x1

0,8

1,6

13,1

46

187

5x1,5

0,8

1,8

14,4

67

228

5x2,5

0,9

2,0

17,0

110

327

5x4

1,0

2,2

19,9

179

466

5x6

1,0

2,5

22,2

279

633



Product Advantages:

1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.

Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

   Production equipments

Production equipments



 Products Quality inspection equipments

Quality inspection equipment


3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.

Roll on pallet



wooden drum



products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.

Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.

Public activities
