Double insulation electrical cable for construction and buidling 450/750VDouble insulation electrical cable for construction and buidling 450/750VDouble insulation electrical cable for construction and buidling 450/750VDouble insulation electrical cable for construction and buidling 450/750V

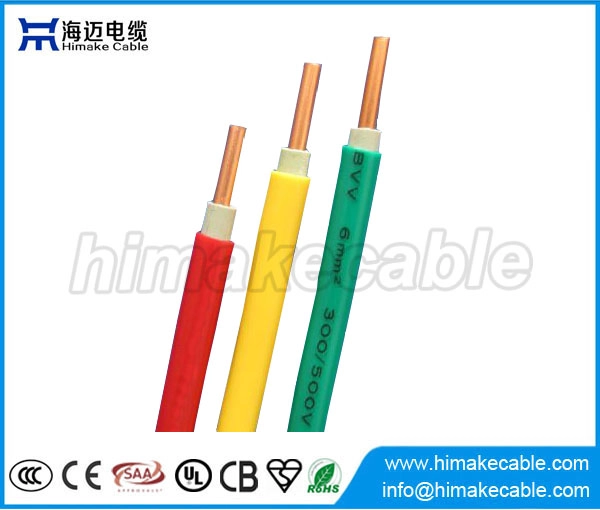

Double insulation electrical cable for construction and buidling 450/750V

  • Rated voltage: 450/750V;
  • Conductor: pure annealed copper or aluminum
  • Insulation: PVC,XLPE,LSZH
  • Sheath: PVC,PE,LSZH
  • Package: 100 meters per roll, or as per requirement
  • Main product model: BVV,BVVR, H05VV-U, H07VV-U,H05VV-R,H07VV-R,BS6004 6491X
  • Product standard: IEC60277, BS6004, VDE0281, GB/T 502
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

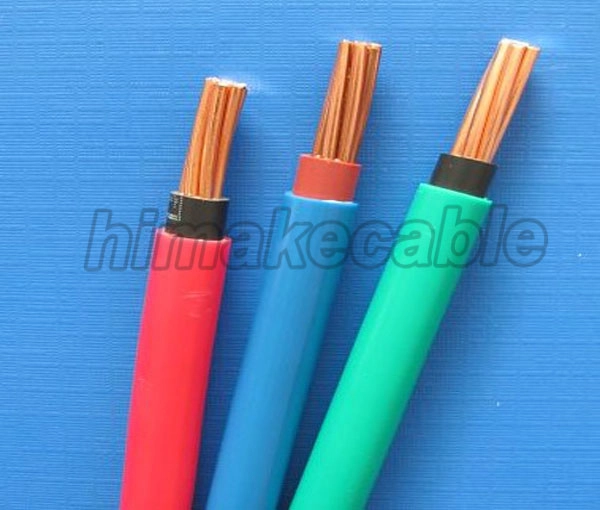

BVV


Nominal Voltage: 450/750V

Conductor: Class 1 or Class 2 plain annealed copper or aluminum, solid type or strand type

Conductor nominal cross section area: 1.0~300sqmm

Insulation: PVC, flame retardant PVC, XLPE, LSZH

Insulation color: Red, Blue, Brown, Grey, Black, Blue, Yellow, White, Green/Yellow or other color requested

Sheath: PVC, PE, LSZH

Sheath color: black, white, yellow, Grey, or as per request

Max. operating temperature: 70℃, 90℃, 105℃

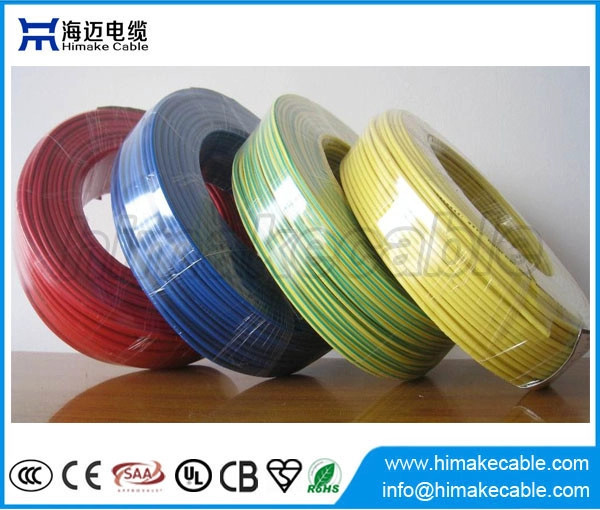

Package: 100 meters per roll, or as per requirement

Main product model: BVV,BVVR, H05VV-U, H07VV-U,H05VV-R,H07VV-R, BS6004 6491X

Product standard: IEC60277, BS6004, VDE0281, GB/T 5023, IEC60332


Product characteristics:

High temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

The cables are used for general power supply and distribution purpose, as building wire for power, lighting, etc in house or outside house, and power supply to daily electrical appliance, suitable for use in conduit and for fixed, protected installation.


Product parameter:  (more details please email us: info@himakecable.com)


Nominal cross section

(mm2)

Insulation thickness

(mm)

Sheath thickness

(mm)

Approx. Overall diameter

(mm)

Min. insulation resistance at 70℃

(MΩ•km)

Approx. weight

(Copper)

(kg/km)

1×1.0

PVC/0.6

PVC/0.8

4.3

0.011

26

1×1.5

PVC/0.7

PVC/0.8

4.8

0.011

33

1×2.5

PVC/0.8

PVC/0.8

5.4

0.01

44

1×6.0

PVC/0.8

PVC/0.9

6.6

0.007

84

1×10

PVC/1.0

PVC/0.9

8.2

0.007

138

1×16

PVC/1.0

PVC/0.9

9.0

0.0050

204

1×25

PVC/1.2

PVC/1.0

11.7

0.0050

315

1×35

PVC/1.2

PVC/1.1

12.9

0.0040

415

1×50

PVC/1.4

PVC/1.3

15.2

0.0045

589

1×70

PVC/1.4

PVC/1.4

16.9

0.0035

790



Product Advantages:


1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.


Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.


   Production equipments


Production equipments



 Products Quality inspection equipments


Quality inspection equipment


3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.


Roll on pallet


products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.


Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams,etc.


Public activities
