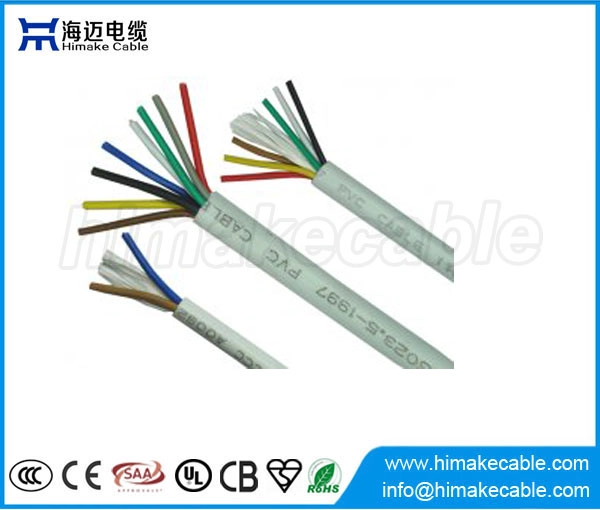

Low voltage Unshielded Security Alarm Cable
- Conductor: Bare Copper/15%-30%CCA Stranded or Solid Conductor
- Insulation: flame retardant PVC
- Outer Jacket: flame retardant PVC, PE, LSZH, LSOH

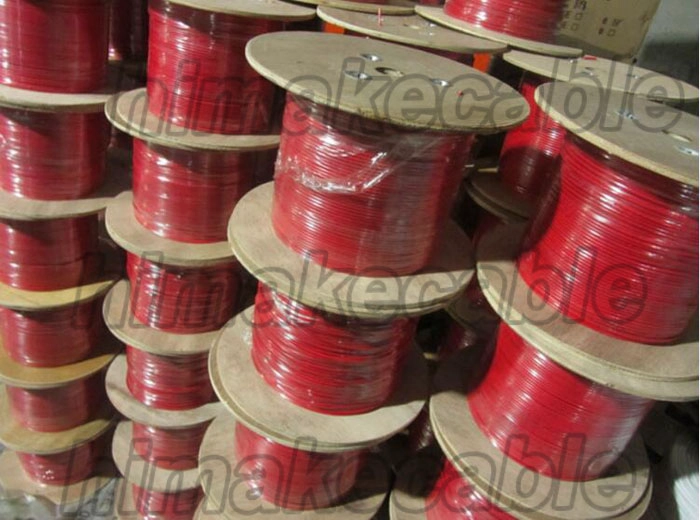

- Package: plastic reel, coils, wooden drum, carton or as per requirement
- Standard: IEC, CEI, VDE, NFC, UL, etc
- Certificate: CCC,CE,CB,BS,SAA,UL,SGS
- Leat time: 15~25 working days, it depends the order quantity
- Price term: FOB, CFR, CIF,EX-Works
- Payment term:T/T,LC at sight,West Union
- MOQ:10000 meters, trial order can be available
- Shipment: Express, FCL, LCL, by sea or by air
Product Description：
Conductor: Bare Copper/15%-30%CCA Stranded or Solid Conductor
Cores: 2--30cores
Conductor cross section: Flexible section in 0.22mmq, or 12, 14, 18, 22, 26, 24AWG Stranded Copper Wire
Insulation: PVC flame retardant meet the requirement of IEC, CEI, VDE and NFC standards
Outer Jacket: PVC flame retardant meet the requirement of IEC, CEI, VDE and NFC standards
Options: LSZH Sheath, Polyethylene Sheath, Other Sheath available
Jacket color: red and black, clear, yellow, blue, or as per request
Package: plastic reel, coils, wooden drum, carton or as per requirement
Standard: IEC, CEI, VDE, NFC, UL, etc.
Product application：
These high quality low voltage security Cable are for Security/Alarm Applications, used in all Home and Commercial Applications, such as PIR Motion Detectors, Glass-break Sensors, Gas Sensors, Door/Windows Sensors, etc.
Product parameter： (more details please email us: info@himakecable.com)
|
Security cable Type |
Section Area (mm2) |
Conductor Size (mm) |
Insulation Dia. (mm) |
O.D. (mm) |
|
Unscreened |
2x0.22 |
2x7/0.20 |
1.0 |
3.2 |
|
Unscreened |
4x0.22 |
4x7/0.20 |
1.0 |
3.7 |
|
Unscreened |
6x0.22 |
6x7/0.20 |
1.0 |
4.3 |
|
Unscreened |
8x0.22 |
8x7/0.20 |
1.0 |
4.6 |
|
Unscreened |
10x0.22 |
10x7/0.20 |
1.0 |
5.4 |
|
Unscreened |
12x0.22 |
12x7/0.20 |
1.0 |
5.6 |
|
Unscreened |
14x0.22 |
14x7/0.20 |
1.0 |
5.8 |
|
Unscreened |
16x0.22 |
16x7/0.20 |
1.0 |
6.1 |
|
Unscreened |
18x0.22 |
18x7/0.20 |
1.0 |
6.5 |
|
Unscreened |
20x0.22 |
20x7/0.20 |
1.0 |
6.8 |
Product Advantages:
1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.
2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.
Production equipments
Products Quality inspection equipments
3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.
4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.
5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.
How to contact us?
Put your inquiry details in the box below, and click "Contact Now".
Tel:0086 150 1259 7988
Wechat:0086 1501259 7988
Contact Person:Bill Zhou
PDF Show:PDF
