LSZH Fire rated Power Cable 0.6/1KVLSZH Fire rated Power Cable 0.6/1KVLSZH Fire rated Power Cable 0.6/1KVLSZH Fire rated Power Cable 0.6/1KV

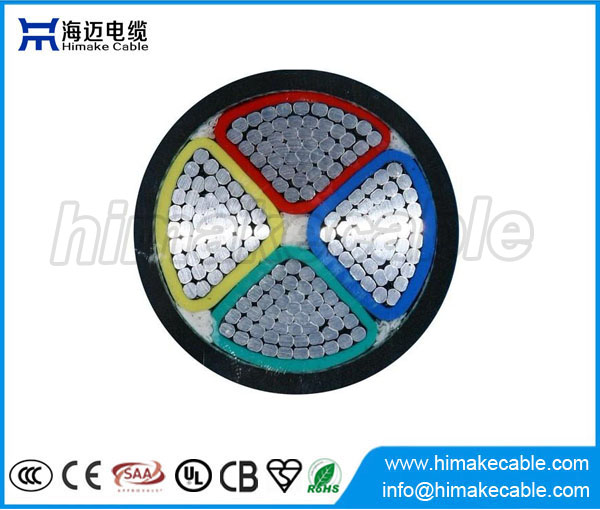

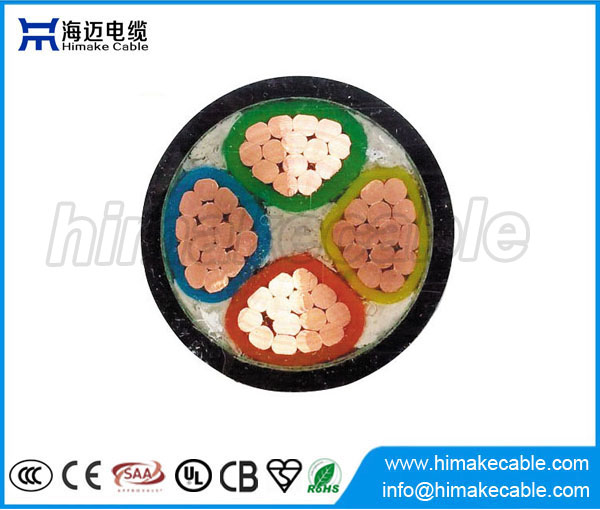

LSZH Fire rated Power Cable 0.6/1KV

  • Nominal Voltage: 0.6/1KV
  • Conductor:pure annealed copper or aluminum
  • Insulation: XLPE,PE,LSZH
  • Sheath: PE, LSZH
  • Max. operating temperature: 90℃, 105℃,it can be up to 150℃
  • Package: wooden drum or as per requirement
  • Main product model: WDZ-YJY,WDN-YJY
  • Product standard: IEC60502, BS7870, VDE0276, IEC60332
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

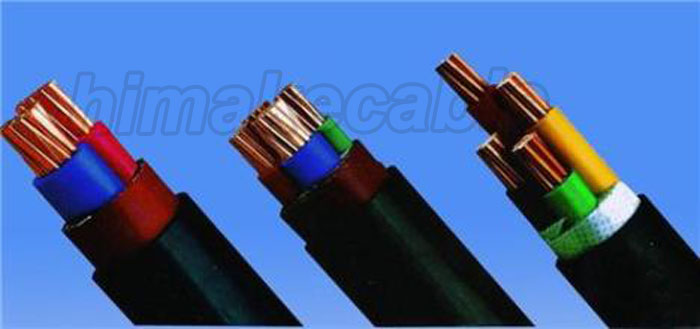

PVC insulated power cable 0.6/1KV

Nominal Voltage: 0.6/1KV

Conductor: Class 1 solid or class 2 strand conductor, pure annealed copper or aluminum

Conductor nominal cross section area: 1.5~630sqmm

Insulation: XLPE,PE,LSZH

Insulation color: 2C: red + blue, 3C: red + yellow + green, 4C: red + yellow + green + blue, 5C: red + yellow + green + blue + black

Sheath: PE, LSZH

Sheath color: black or as per request

Max. operating temperature: 90℃, 105℃,it can be up to 150℃

Package: wooden drum or as per requirement

Main product model: WDZ-YJY,WDN-YJY

Product standard: IEC60502, BS7870, VDE0276, GB/T12706, IEC60332


Product characteristics:

High temperature resistance and low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

The cables can be fixedly laid in the places where cables can be protected from much strong extraneous mechanical force to a certain degree, such as indoor, aerial, cable conduit tunnel or direct burying for power transmission and distribution line project in rated A/C UO/U at 0.6/1KV and below.


Product parameter: (more details please email us: info@himakecable.com)

Cross

section

(mm2)

Insulation

thickness

(mm)

Sheath

thickness

(mm)

Calculating outer diameter

(mm)

Approx. weight

(kg/km)

copper

aluminum

6

1

1.8

8.4

121

84

10

1

1.8

9.7

177

111

16

1

1.8

10.7

239

139

25

1.2

1.8

12.4

349

190

35

1.2

1.8

13.6

451

232

50

1.4

1.8

15.3

624

309

70

1.4

1.8

17.1

821

384

95

1.6

1.8

19.4

1085

491

120

1.6

1.8

21

1338

589

150

1.8

1.8

23

1642

706

185

2

1.8

25.2

2032

858

240

2.2

1.9

28.5

2605

1091

300

2.4

2

31.5

3238

1340

400

2.6

2.1

34.7

4173

1693

500

2.8

2.2

39

5194

2085

630

2.8

2.3

42.9

6475

2542

2x1.5

0.8

1.8

10.4

120

-

2x2.5

0.8

1.8

11.2

150

119

2x4.0

1

1.8

12.9

206

151

2x6.0

1

1.8

14

255

178

2x10

1

1.8

16.5

361

235

2x16

1

1.8

18.6

501

300

2x25

1.2

1.8

17.2

721

375

2x35

1.2

1.8

18.6

903

450

2x50

1.4

1.8

22

1255

603

2x70

1.4

1.8

24.2

1680

764

2x95

1.6

1.8

27.2

2215

980

2x120

1.6

1.9

29.6

2744

1184

2x150

1.8

2

32.6

3396

1448

2x185

2

2.1

35.8

4161

1762

3x1.5

0.8

1.8

10.8

143

-

3x2.5

0.8

1.8

11.7

183

137

3x4.0

1

1.8

13.6

254

181

3x6.0

1

1.8

14.7

326

215

3x10

1

1.8

17.4

482

293

3x16

1

1.8

19.7

680

378

3x25

1.2

1.8

20.1

993

494

3x35

1.2

1.8

22.5

1288

604

3x50

1.4

1.8

25.2

1812

829

3x70

1.4

1.8

27.8

2429

1054

3x95

1.6

2

31.8

3246

1392



Product Advantages:

1. The conductor is made of  new pure annealed copper , ensuring a good electrical properties and a very good conductivity.

Pure copper


2. We are a very  professional cable manufacturer  with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

   Production equipments

Production equipments



 Products Quality inspection equipments

Quality inspection equipment


3. We have more than  10 years' export experience  and exported products to  more than 60 countries  over the world with a good reputation internationally.

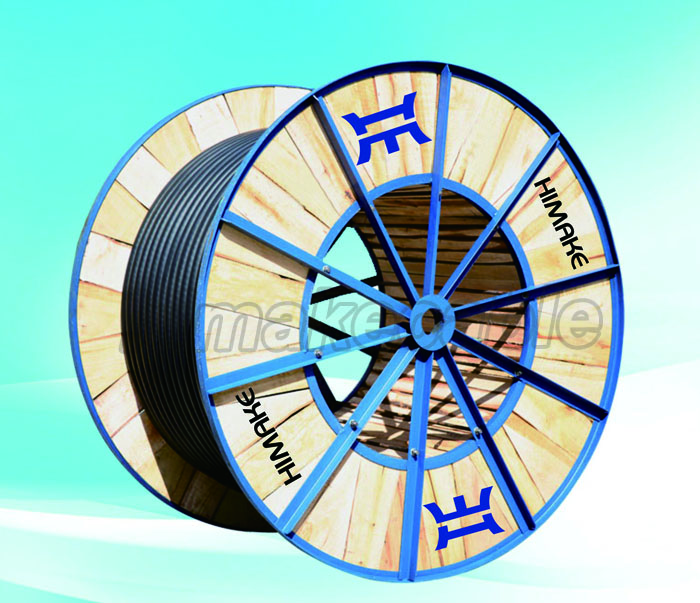

wooden drum



products delivery


4.We not only offer  good products  and  good service  to our customers, but also try to  develop our staffs , offer a good trainning, good working and living conditions to the staffs.

Company activities


5. Also we are a company with  highly social reponsibility , often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.

Public activities
