LSZH Fire rated Power Cable 0.6/1KV
- Nominal Voltage: 0.6/1KV
- Conductor:pure annealed copper or aluminum
- Insulation: XLPE,PE,LSZH
- Sheath: PE, LSZH
- Max. operating temperature: 90℃, 105℃,it can be up to 150℃
- Package: wooden drum or as per requirement
- Main product model: WDZ-YJY,WDN-YJY
- Product standard: IEC60502, BS7870, VDE0276, IEC60332
- Certificate: CCC,CE,CB,BS,SAA,SGS
- Leat time: 15~25 working days, it depends the order quantity
- Price term: FOB, CFR, CIF,EX-Works
- Payment term:T/T,LC at sight,West Union
- MOQ:10000 meters, trial order can be available.
- Shipment: Express, FCL, LCL, by sea or by air
Product Description:
Nominal Voltage: 0.6/1KV

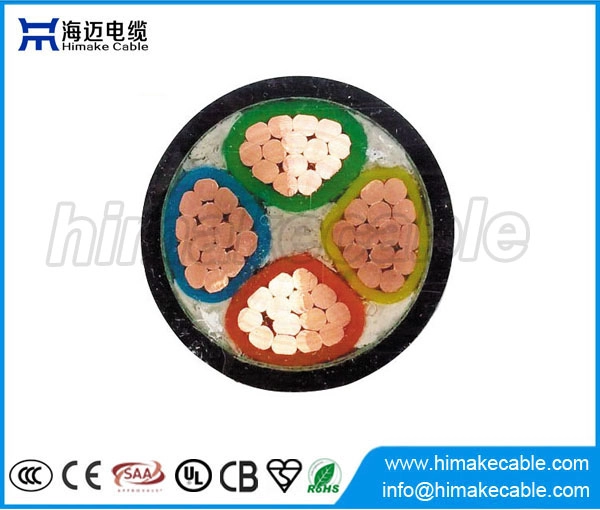

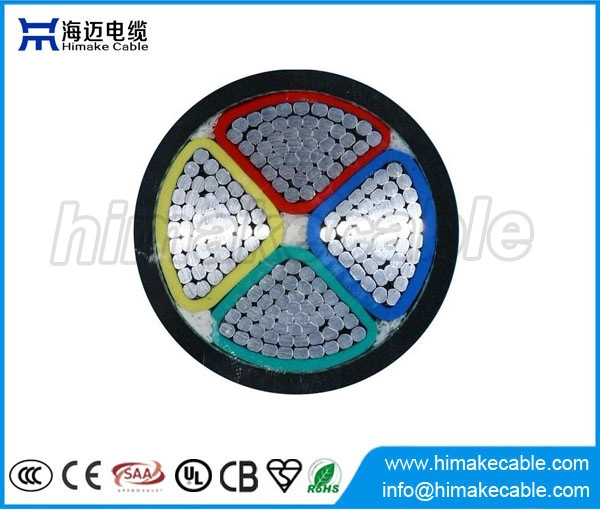

Conductor: Class 1 solid or class 2 strand conductor, pure annealed copper or aluminum
Conductor nominal cross section area: 1.5~630sqmm
Insulation: XLPE,PE,LSZH
Insulation color: 2C: red + blue, 3C: red + yellow + green, 4C: red + yellow + green + blue, 5C: red + yellow + green + blue + black
Sheath: PE, LSZH
Sheath color: black or as per request
Max. operating temperature: 90℃, 105℃,it can be up to 150℃

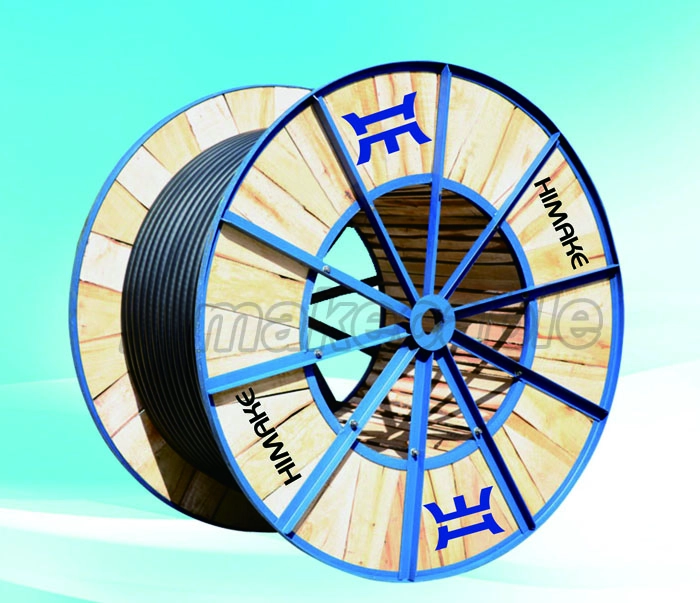

Package: wooden drum or as per requirement
Main product model: WDZ-YJY,WDN-YJY
Product standard: IEC60502, BS7870, VDE0276, GB/T12706, IEC60332
Product characteristics:
High temperature resistance and low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.
Product application:
The cables can be fixedly laid in the places where cables can be protected from much strong extraneous mechanical force to a certain degree, such as indoor, aerial, cable conduit tunnel or direct burying for power transmission and distribution line project in rated A/C UO/U at 0.6/1KV and below.
Product parameter: (more details please email us: info@himakecable.com)
Cross
section
(mm2)
Insulation
thickness
(mm)
Sheath
thickness
(mm)
Calculating outer diameter
(mm)
Approx. weight
(kg/km)
copper
aluminum
6
1
1.8
8.4
121
84
10
1
1.8
9.7
177
111
16
1
1.8
10.7
239
139
25
1.2
1.8
12.4
349
190
35
1.2
1.8
13.6
451
232
50
1.4
1.8
15.3
624
309
70
1.4
1.8
17.1
821
384
95
1.6
1.8
19.4
1085
491
120
1.6
1.8
21
1338
589
150
1.8
1.8
23
1642
706
185
2
1.8
25.2
2032
858
240
2.2
1.9
28.5
2605
1091
300
2.4
2
31.5
3238
1340
400
2.6
2.1
34.7
4173
1693
500
2.8
2.2
39
5194
2085
630
2.8
2.3
42.9
6475
2542
2x1.5
0.8
1.8
10.4
120
-
2x2.5
0.8
1.8
11.2
150
119
2x4.0
1
1.8
12.9
206
151
2x6.0
1
1.8
14
255
178
2x10
1
1.8
16.5
361
235
2x16
1
1.8
18.6
501
300
2x25
1.2
1.8
17.2
721
375
2x35
1.2
1.8
18.6
903
450
2x50
1.4
1.8
22
1255
603
2x70
1.4
1.8
24.2
1680
764
2x95
1.6
1.8
27.2
2215
980
2x120
1.6
1.9
29.6
2744
1184
2x150
1.8
2
32.6
3396
1448
2x185
2
2.1
35.8
4161
1762
3x1.5
0.8
1.8
10.8
143
-
3x2.5
0.8
1.8
11.7
183
137
3x4.0
1
1.8
13.6
254
181
3x6.0
1
1.8
14.7
326
215
3x10
1
1.8
17.4
482
293
3x16
1
1.8
19.7
680
378
3x25
1.2
1.8
20.1
993
494
3x35
1.2
1.8
22.5
1288
604
3x50
1.4
1.8
25.2
1812
829
3x70
1.4
1.8
27.8
2429
1054
3x95
1.6
2
31.8
3246
1392
Product Advantages:
1. The conductor is made of new pure annealed copper , ensuring a good electrical properties and a very good conductivity.
2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.
Production equipments
Products Quality inspection equipments
3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.
4.We not only offer good products and good service to our customers, but also try to develop our staffs , offer a good trainning, good working and living conditions to the staffs.
5. Also we are a company with highly social reponsibility , often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.
How to contact us?
Put your inquiry details in the box below , and click " Contact Now ".
