Flexible instrumentation control cable 300/500VFlexible instrumentation control cable 300/500VFlexible instrumentation control cable 300/500VFlexible instrumentation control cable 300/500V

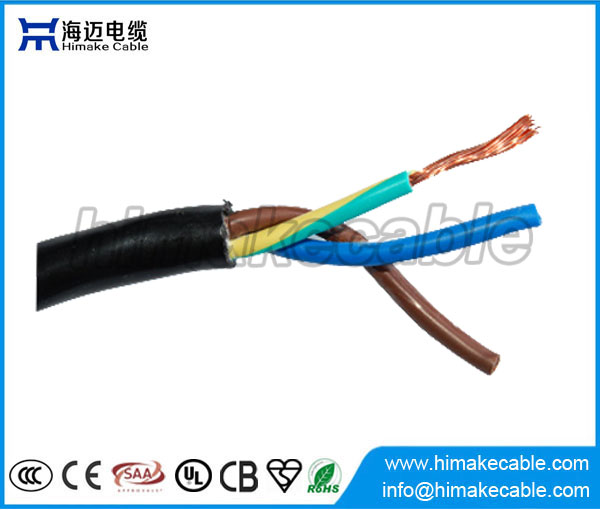

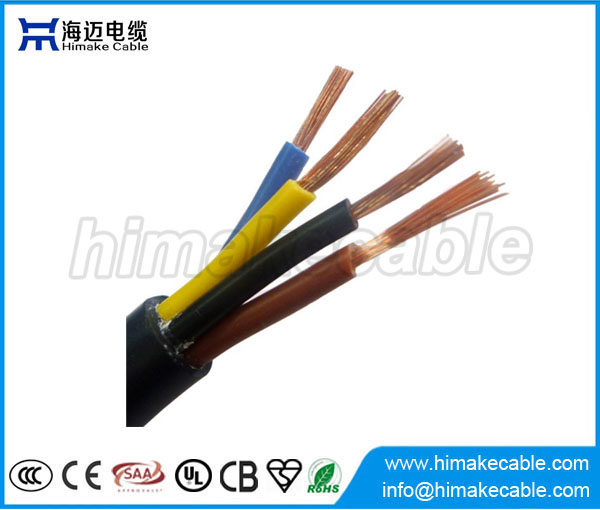

Flexible instrumentation control cable 300/500V

  • Nominal Voltage: 300/500V
  • Conductor: Class 5 plain annealed fine copper wire
  • Insulation: PVC, LSZH
  • Sheath: PVC, flame retardant PVC, Rohs compliant PVC
  • Max. operating temperature: 70℃, 90℃
  • Package: 100 meters per roll, or as per requirement
  • Main product model: RVV, H05VV-F, H07VV-F
  • Product standard: IEC60277, BS6500, VDE0281, GB/T 5023,IEC60332
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

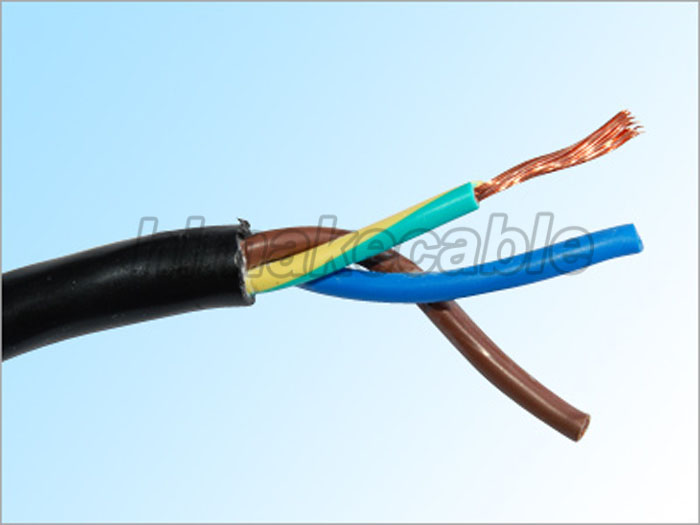

PVC flexible cable


Nominal Voltage: 300/500V

Conductor: Class 5 plain annealed fine copper wire

Conductor nominal cross section area: 0.5~25sqmm

Insulation: flame retardant PVC, Rohs compliant PVC

Insulation color:  Blue, Brown, Grey, Black, red, Green/Yellow or other color requested

Sheath:  flame retardant PVC, Rohs compliant PVC

Sheath color: black, grey, white, or as per request

Max. operating temperature: 70℃, 90℃

Package: 100 meters per roll, or as per requirement

Main product model:  RVV, ZR-RVV, H05VV-F, H07VV-F

Product standard: IEC60277, BS6500 VDE0281, GB/T 5023,IEC60332


Product characteristics:

Very flexible for easy bending, high temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

The cables are used for general power supply and distribution purpose, for switch control, instrumentation panels and for internal connection.


Product parameter: (more details please email us: info@himakecable.com)


conductor cross-section

(mm 2 )

Kind

Of

conductor

Insulation thickness

(mm)

Sheath thickness

(mm)

Average max. outer-diameter (mm)

Product approximate weight (kg/km)

Min. insulated resistance (MΩ.km)

2×0.75

5

PVC/0.6

PVC/0.8

7.6

49.24

0.011

2×1

5

PVC/0.6

PVC/0.8

8

56.59

0.01

2×1.5

5

PVC/0.7

PVC/0.8

9

74.6

0.01

3×0.75

5

PVC/0.6

PVC/0.8

8

61.23

0.011

3×1

5

PVC/0.6

PVC/0.8

8.4

71.27

0.01

3×1.5

5

PVC/0.7

PVC/0.9

9.8

99.3

0.01

3×2.5

5

PVC/0.8

PVC/1.1

12

150.53

0.009

4×0.75

5

PVC/0.6

PVC/0.8

8.6

75.12

0.011

4×1

5

PVC/0.6

PVC/0.9

9.4

91.72

0.01

4×1.5

5

PVC/0.7

PVC/1.0

11

127.54

0.01

4×2.5

5

PVC/0.8

PVC/1.1

13

187.6

0.009



Product Advantages:

1. The conductor is made of  new pure annealed copper , ensuring a good electrical properties and a very good conductivity.

Pure copper


2. We are a very  professional cable manufacturer  with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

   Production equipments

Production equipments



 Products Quality inspection equipments

Quality inspection equipment



3. We have more than  10 years' export experience  and exported products to  more than 60 countries  over the world with a good reputation internationally.


Roll on pallet



products delivery


4.We not only offer  good products  and  good service  to our customers, but also try to  develop our staffs , offer a good trainning, good working and living conditions to the staffs.

Company activities


5. Also we are a company with  highly social reponsibility , often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.

Public activities
