SAA certified flat TPS electric cable 450/750VSAA certified flat TPS electric cable 450/750VSAA certified flat TPS electric cable 450/750VSAA certified flat TPS electric cable 450/750V

SAA certified flat TPS electric cable 450/750V

  • Rated voltage: 450/750V
  • Conductor: pure annealed copper, solid or strand type
  • Insulation: V-90 PVC
  • Sheath: 3V-90 PVC
  • Max. operating temperature: 90℃

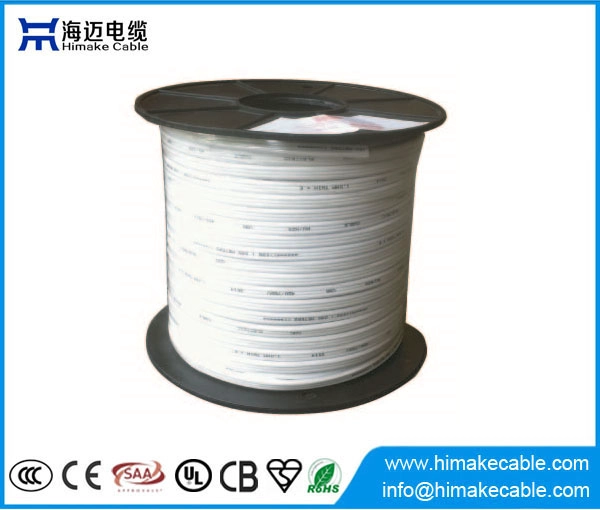

  • Package: 100 meters per roll (plastic reel), or as per requirement
  • Product standard: AS/NZS5000.2
  • Certificate: SAA
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:


flat TPS cable ASNZS5000.2


Nominal Voltage:  450/750V

Conductor: Class 1 or Class 2 plain annealed copper, solid copper or strand copper

Conductor nominal cross section area: 1.0~16sqmm

Cores: 2C, 3C, 2C+E, 3C+E

Insulation: V-90 PVC

Insulation color:  2C: red+white or red+black, 2C+E: red+black+green/yellow, 3C: red+white+blue, 3C+E: red+white+blue+green/yellow

Sheath: 3V-90 PVC

Sheath color: white, red, or as per requirement

Max. operating temperature:  90℃

Package: 100 meters per roll (plastic reel), or as per requirement

Main product model: PVC Flat TPS cable, PVC flat twin cable, PVC flat twin with earth cable

Product standard:  AS/NZS5000.2


Product characteristics:

High temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

Easy tear sheath, the cables are used for general wiring, unenclosed, in conduit, or buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage.


Product parameter:   (more details please email us: info@himakecable.com)


Nominal cross section

(mm 2 )

Conductor type

Insulation thickness

(mm)

Sheath thickness

(mm)

Earth conductor area (mm 2 )

Approx.. Overall Dia.

(mm)

Approx. weight (copper)

(kg/km)

2×1.0

Solid Cu

0.6

0.9

 /

6.5×4.2

50.4

2×1.5

Strand Cu

0.6

0.9

 /

7.2×4.5

61.7

2×2.5

Strand Cu

0.7

1.0

 /

8.9×5.4

96.8

2×4.0

Strand Cu

0.8

1.1

 /

10.5×6.3

141.9

2×6.0

Strand Cu

0.8

1.1

 /

11.6×6.9

185.9

2×10

Strand Cu

1.0

1.2

 /

14.2×8.3

294.2


Product Advantages:


1. The conductor is made of new pure annealed copper , ensuring a good electrical properties and a very good conductivity.


Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.


   Production equipments


Production equipments



 Products Quality inspection equipments


Quality inspection equipment


3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.


Roll on pallet


plastic reel


products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs , offer a good trainning, good working and living conditions to the staffs.


Company activities


5. Also we are a company with highly social reponsibility , often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams, etc.


Public activities
