首  页 > 产品展示 > 通信电缆 > FTP Cat6a cable BC conductor
FTP Cat6a cable BC conductorFTP Cat6a cable BC conductorFTP Cat6a cable BC conductorFTP Cat6a cable BC conductor

FTP Cat6a cable BC conductor

  • Conductor Size: 0.57mm, 23AWG
  • Conductor Material: /BC
  • Nuber Of Conductor: 4~25 pairs
  • Insulation Material: PE, HDPE
  • Shield: each individual pair Aluminum foil screened
  • Jacket Material: PVC, ROHS PVC, LSZH
  • Operating Temperation: -40 °C - +75 °C
  • Package: 305 meters per box or as per requirement
  • Main product model: FTP Cat6a, HSYVP6a, HSYYP6a, HSYZ6a
  • Product standard: ISO/IEC11801, IEC61156-2, YD/T1019-2001, ANSI/TIA/EIA-568B, UL444
  • Certificate: CCC,CE,UL,FCC,ISO,ROHS,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

cat6a


Conductor:  BC

Conductor size: 0.57mm, 23AWG

Twist pairs: 4~25 pairs

Insulation: PE, HDPE

Insulation color: 4 pairs color: Blue/white-blue; Green/white-green; Orange/white-orange; Brown/white-brown, c olor coded according to ANSI/TIA/EIA-568-B color code

Shield: each individual pair Aluminum foil screened

Sheath: flame retardant PVC Rohs compliant, LSZH compound

Sheath color: white, grey, blue or as per request

Package: 305 meters per box or as per requirement

Main product model: FTP  Cat6a, HSYVP6a, HSYYP6a, HSYZP6a

Product standard: ISO/IEC11801, IEC61156-2, YD/T1019-2001, ANSI/TIA/EIA-568B, UL444


Product characteristics:

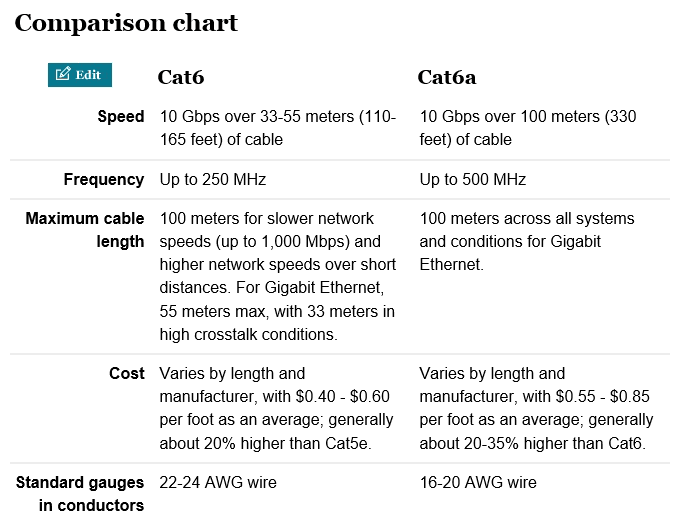

Here are some interesting facts about CAT6A:
•The "A" in CAT6A means augmented. Also known as Augmented Category 6.
•The standard was ratified as an official IEEE standard in late 2006 (IEEE 802.3an-2006 10GBASE-T)
•CAT6A can run 10GbE up to 100 meters (328 FT)
•CAT6 cable can only run 10GbE up to 55 meters (180 FT)
•CAT6A is backward compatible with 10Base-T, 100Base-T, 1000Base-T (10/100/1000 Fast Ethernet and Gigabit Ethernet)

Product application:

The cable is designed for  Network adapters, servers, high-end workstations, video processing/editing, Virtualization, high-performance cluster computing (HPPC), iSCSI, hubs, switches, routers, DSL/Cable Modems (probably won’t see 10 Gigabit DSL :-) but, there could be 10GbE LAN ports in the near future), patch panels and other computer networking applications that support CAT6A and 10 Gigabit Ethernet (10GE, 10GbE, 10 GigE, 10GBASE-T, 10-gigabit Ethernet) .


cc



PACKAGE



STOCK
