Flexible Solar cable 300/500VFlexible Solar cable 300/500VFlexible Solar cable 300/500VFlexible Solar cable 300/500V

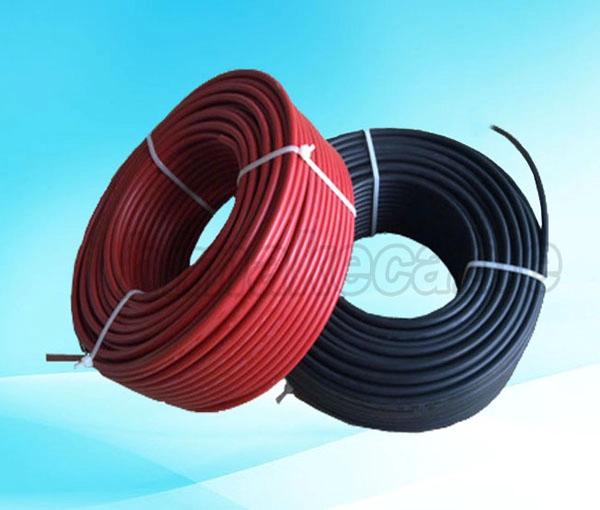

Flexible Solar cable 300/500V

  • Rated voltage:300/500V
  • Conductor: Fine annealed copper wire or tinned copper wire
  • Insulation: XLPE or LSZH
  • Sheath: LSZH
  • Package: 100 meters per roll, wooden reel, or as per requirement
  • Max. operating temperature: 125℃
  • Standard: TÜV 3 PFG 1169/08.2007, Directive RoHs 2002/95/EC
  • Certificate: TÜV, UL
  • Leat time: 25~35 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

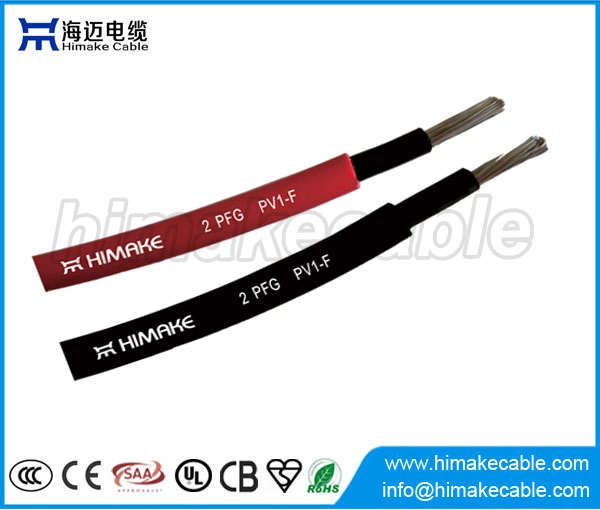

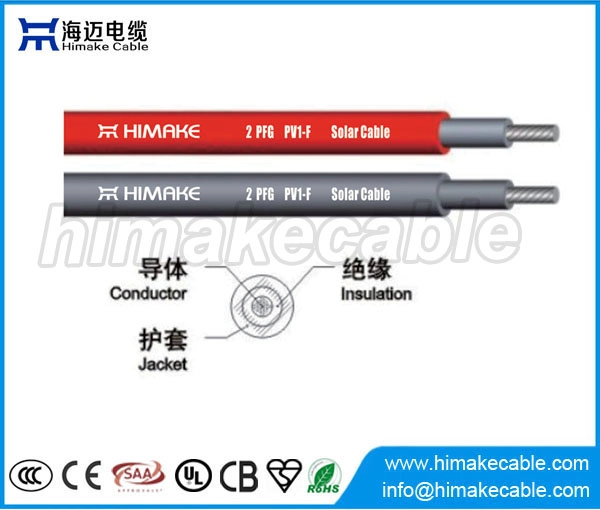

solar cable single core


Rated voltage: 0.6/1KV

Conductor: Fine annealed copper wire or tinned copper wire, IEC60228 Class 5

Conductor size range: 1.5~25mm 2

Insulation: XLPE or LSZH

Insulation color: white, black, nature color, or as per requirement

Sheath: LSZH

Sheath color: normally black, red, blue, or as per requirement

Package: 100 meters per roll, wooden reel, or as per requirement

Max. operating temperature: 125℃

Standard: TÜV 3 PFG 1169/08.2007, Directive RoHs 2002/95/EC

Certificate: TÜV, UL


Product characteristics:

Flexibility at low temperature, Long-term insulation resistance to moisture, Long product life and high product reliability.


Product Application:

These solar cables are used as the interconnection wiring for photovoltaic power systems, for fast and cost-saving power transmission.



Product parameter: (more details please email us: info@himakecable.com)

Conductor size (mm2)

Conductor structure

Max. Resistance

(mΩ/m)

Min. insulation thickness (mm)

Min. sheath thickness (mm)

Approx.outer diameter(mm)

Approx. weight (kg/km)

2.5

Class 5

8.21

0.50

0.50

4.60

46.0

4.0

Class 5

5.09

0.50

0.50

5.00

60.0

6.0

Class 5

3.39

0.50

0.50

5.60

80

 Note: Data shown is approximated and subject to normal manufacturing tolerances.


Product Advantages:


1. The conductor is made of  new pure annealed copper or tinned copper , ensuring a good electrical properties and a very good conductivity.


Pure copper


2. We are a very  professional cable manufacturer  with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.


   Production equipments


Production equipments



 Products Quality inspection equipments


Quality inspection equipment


3. We have more than  10 years' export experience  and exported products to  more than 60 countries  over the world with a good reputation internationally.


Roll on pallet


products delivery


4.We not only offer  good products  and  good service  to our customers, but also try to  develop our staffs , offer a good trainning, good working and living conditions to the staffs.


Company activities


5. Also we are a company with  highly social reponsibility , often take part in public benifits activities, like tree planting, green environment activities,  aiding poor students and the people in difficult condition to achieve their dreams, etc.


Public activities
