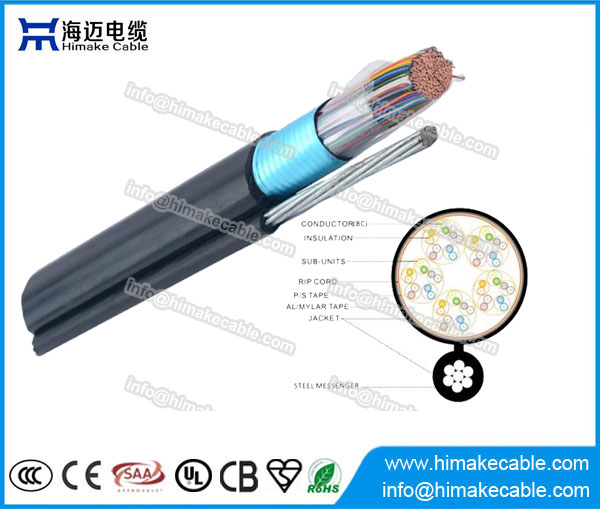

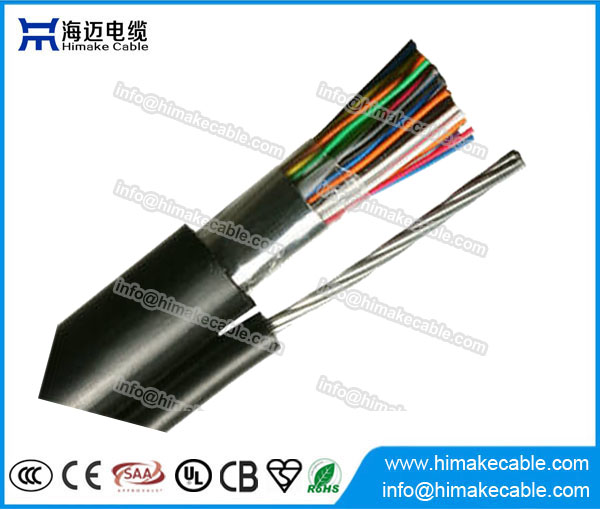

Aerial Self-supporting (figure 8) incity communication cable HYACAerial Self-supporting (figure 8) incity communication cable HYACAerial Self-supporting (figure 8) incity communication cable HYACAerial Self-supporting (figure 8) incity communication cable HYAC

Aerial Self-supporting (figure 8) incity communication cable HYAC

  • Conductor: Bare Copper
  • Insulation: HDPE
  • Insulation color: there is 10 kinds color in total, every pair's insulation color is according to stated chromatogram
  • Shield: Aluminum band, both sides of the aluminum band combine the polyolefin membranes with thickness 0.05mm
  • Self-support wire: steel wire
  • Sheath: LDPE
  • Package: 100 meters per roll, 500 meters per wooden reel, wooden drum or as per requirement
  • Main product model: HYAC
  • Product standard: GY/T 322, IEC 708-1, PEA PE-22
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air
HYAC

Product Description:
Conductor: Bare Copper
Conductor size: 0.32mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.9mm
Insulation: HDPE
Cores: 5~2400 pairs, 100 pair and above has the 1% prepared line pairs that is not more than 6 pairs
Insulation color: there is 10 kinds color in total, every pair's insulation color is according to stated chromatogram
Wrapping tape: polyester tape
Shield: Aluminum band, both sides of the aluminum band combine the polyolefin membranes with thickness 0.05mm
Self-support wire: steel wire
Sheath: LDPE
Sheath color: black, or other as per requirement
Package: 100 meters per roll, 500 meters per wooden reel, wooden drum or as per requirement
Main product model: HYA
Product standard: GY/T 322, IEC 708-1, PEA PE-22

Product application:
It is aerial communication cable, applicable to the transmission of analogue signal with audio frequency 150KHZ or less, and the transmission of digital signal of 2048Kbits/s or less, also the digital signal of above 2048Kbits/s in special condition.

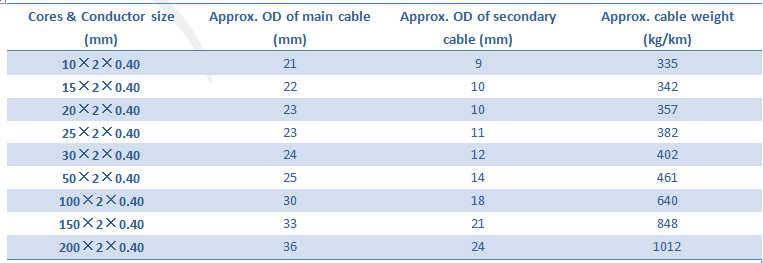

Product Electrical Property: (more spec. details please email us: info@himakecable.com )

HYAC2



tele2
