Flame retardant PVC insulated control cable 450/750VFlame retardant PVC insulated control cable 450/750VFlame retardant PVC insulated control cable 450/750VFlame retardant PVC insulated control cable 450/750V

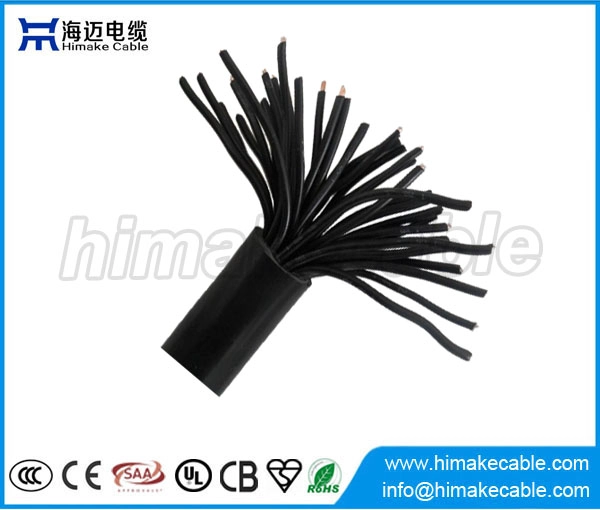

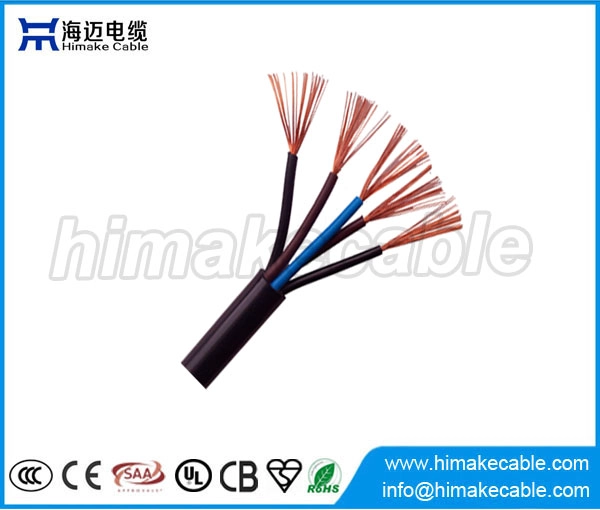

Flame retardant PVC insulated control cable 450/750V

  • Nominal Voltage: 450/750V
  • Conductor: pure annealed copper
  • Insulation: FR-PVC, Rohs compliant PVC
  • Sheath:FR-PVC, Rohs compliant PVC
  • Max. operating temperature: 70℃, 90℃, 105℃
  • Package: 100 meters per roll, wooden drum or as per requirement
  • Main product model: ZR-KVV, ZR-KVVR
  • Product standard: IEC60277, BS6500, VDE0250,IEC60332
  • Certificate: CCC,CE,CB,BS,SAA,SGS
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

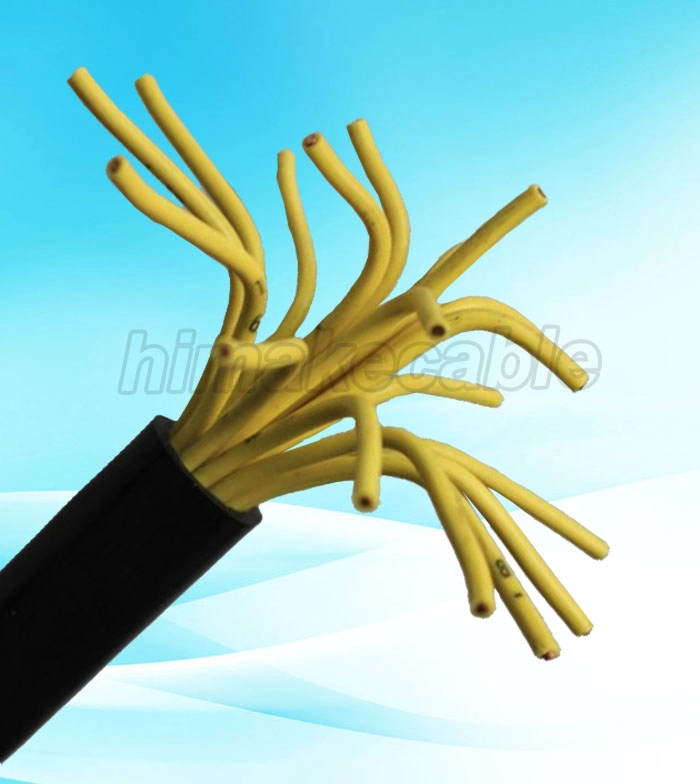

PVC control cable


Nominal Voltage: 450/750V, 0.6/1KV

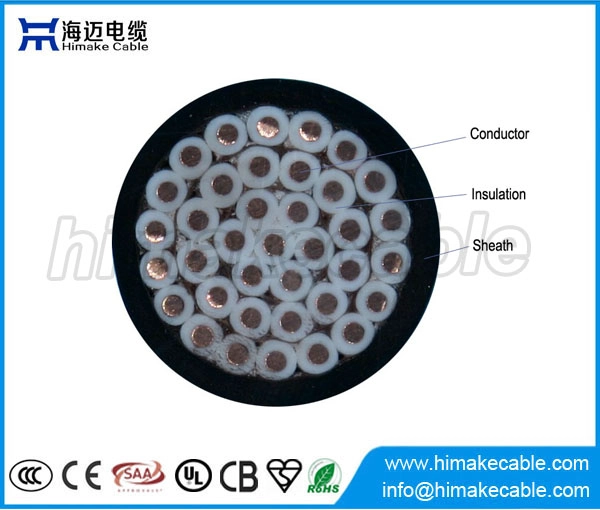

Conductor: Class 1 solid or class 2 strand conductor, or Class 5 flexible conductor, pure annealed copper

Conductor nominal cross section area: 0.75~10sqmm

Insulation: PVC, flame retardant PVC, Rohs compliant PVC

Insulation color: less than 5 cores it is color identification, more than 5 cores, it is yellow, black, white, blue with figure

Sheath: PVC, flame retardant PVC, Rohs compliant PVC

Sheath color: black, grey or as per request

Max. operating temperature: 70℃, 90℃, 105℃

Package: 100 meters per roll for small size cable, wooden drum for big size cable or as per requirement

Main product model: ZR-KVV, ZR-KVVR

Product standard: IEC60277, BS6500, VDE0250, GB/T9330, IEC60332


Product characteristics:

High temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

It applies to controlling, monitoring and protective system, such as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines as well as in plant construction.


Product parameter (450/750V):

(more details please email us: info@himakecable.com)

cross section

(mm2)

Insulation thickness

(mm)

Sheath thickness

(mm)

Approx. overall diameter

(mm)

Approx. weight

(kg/km)

Max. DC resistance of conductor 20℃

(Ω/km)

Min. insulation resistance 70℃

(mΩ•km)

2x0.75

PVC/0.6

PVC/1.2

7.5

67.72

24.5

0.012

2x1.0

PVC/0.6

PVC/1.2

7.82

76.2

18.1

0.011

2x1.5

PVC/0.7

PVC/1.2

8.74

97.71

12.1

0.011

2x2.5

PVC/0.8

PVC/1.2

9.96

133.4

7.41

0.01

2x4

PVC/0.8

PVC/1.2

10.9

173.65

4.61

0.0085


Product Advantages:

1. The conductor is made of  new pure annealed copper , ensuring a good electrical properties and a very good conductivity.

Pure copper


2. We are a very  professional cable manufacturer  with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.

   Production equipments

Production equipments



 Products Quality inspection equipments

Quality inspection equipment


3. We have more than  10 years' export experience  and exported products to  more than 60 countries  over the world with a good reputation internationally.

Roll on pallet



wooden drum



products delivery


4.We not only offer  good products  and  good service  to our customers, but also try to  develop our staffs , offer a good trainning, good working and living conditions to the staffs.

Company activities


5. Also we are a company with  highly social reponsibility , often take part in public benifits activities, like tree planting, aiding poor students, green environment activities, etc.

Public activities
