High quality SY PVC Control Flexible Cable 300/500V made in ChinaHigh quality SY PVC Control Flexible Cable 300/500V made in ChinaHigh quality SY PVC Control Flexible Cable 300/500V made in ChinaHigh quality SY PVC Control Flexible Cable 300/500V made in China

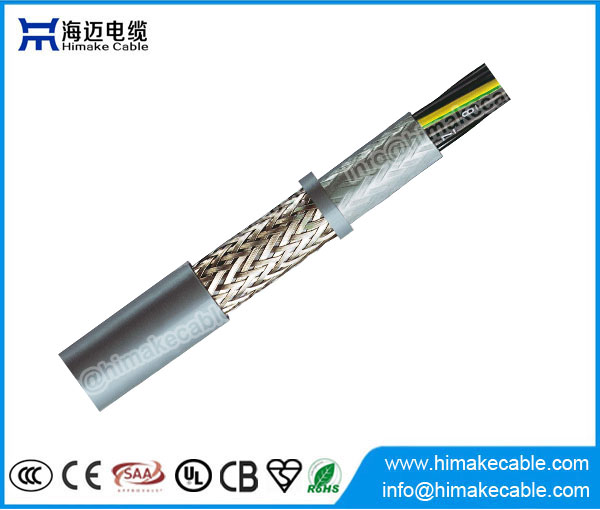

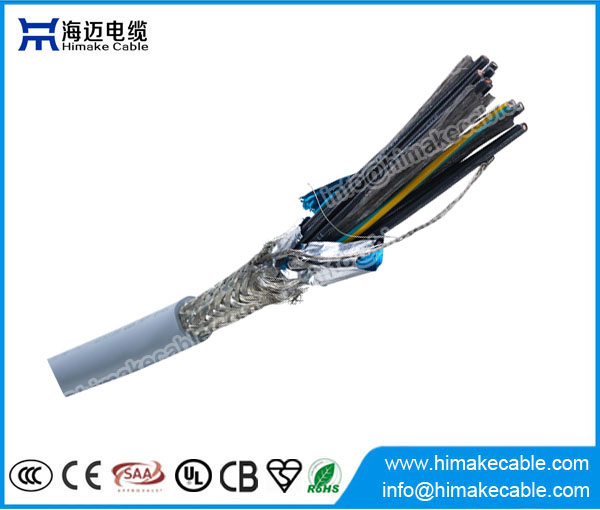

High quality SY PVC Control Flexible Cable 300/500V made in China

  • High quality SY PVC Control Flexible Cable 300/500V made in China
  • Rated voltage: 300/500V 450/750V
  • Conductor: pure annealed copper, or tinned copper
  • Insulation: PVC,flame retardant PVC
  • Shield: Steey wire braiding screen
  • Sheath: PVC,flame retardant PVC
  • Max. operating temperature: 70℃, 90℃
  • Package: 100 meters per roll, wooden drum, or as per requirement
  • Product standard:  IEC60277, BS6500, VDE0250
  • Certificate: CE,CB,BS,VDE,UL,SAA
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

Product Description:

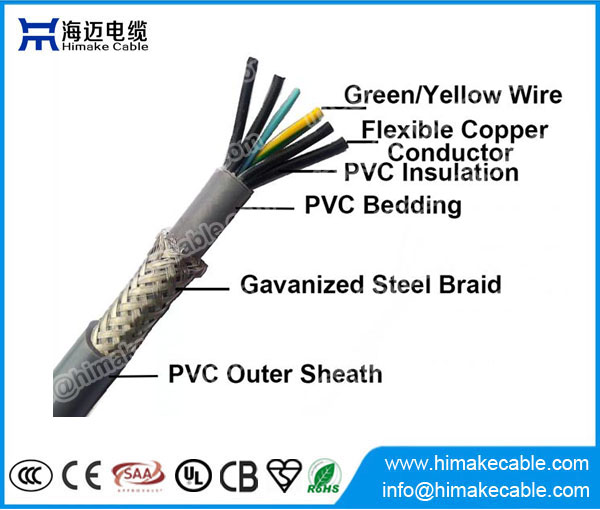

SY control cable


High quality SY PVC Control flexible cable 300/500V made in China

Nominal Voltage: 300/500V

Conductor: plain annealed copper, tinned copper

Conductor nominal cross section area: 0.50~6.0sqmm

Cores: 2C~61C

Insulation: PVC,flame retardant PVC

Insulation color: white, black, yellow, Red, Blue, Brown, Brey, Green/yellow or other color requested or with figure

Shield: Steel wire brading screen

Sheath:  PVC,flame retardant PVC

Sheath color: black, white, grey, or as per requirement

Max. operating temperature: 70℃, 90℃

Package: 100 meters per roll, wooden drum, or as per requirement

Main product model: SY control cable

Product standard: IEC60277, BS6500, VDE0250


Product characteristics:

High temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or Rohs compliant can be available as per request.


Product application:

SY PVC Control Flexible Cable is supplied to a wide number of industries including building and construction (often in airports), rail and transport infrastructure, transmission, distribution and power networks as well as automation and process control. SY Cable is used as interconnecting cable for measuring, controlling or regulation in signal and control equipment.


Product parameter:  (more details please email us: info@himakecable.com)

SY control cable parameters

Product Advantages:


1. The conductor is made of new pure annealed copper, ensuring a good electrical properties and a very good conductivity.


Pure copper


2. We are a very professional cable manufacturer with advanced production equipments and strict quality inspection system, ensuring the products complying the standard and customized requirement.


   Production equipments


Production equipments



 Products Quality inspection equipments


Quality inspection equipment


3. We have more than 10 years' export experience and exported products to more than 60 countries over the world with a good reputation internationally.


Roll on pallet


wooden drum


products delivery


4.We not only offer good products and good service to our customers, but also try to develop our staffs, offer a good trainning, good working and living conditions to the staffs.


Company activities


5. Also we are a company with highly social reponsibility, often take part in public benifits activities, like tree planting, green environment activities, aiding poor students and the people in difficult condition to achieve their dreams,etc.


Public activities
