Communication Cable Telephone Cable for indoor and outdoor useCommunication Cable Telephone Cable for indoor and outdoor useCommunication Cable Telephone Cable for indoor and outdoor useCommunication Cable Telephone Cable for indoor and outdoor use

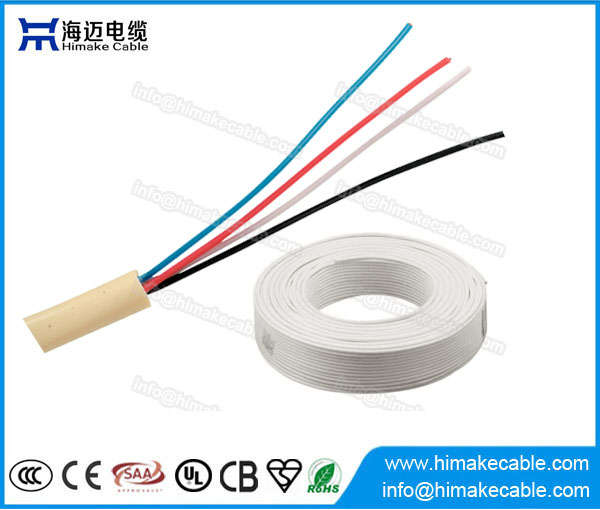

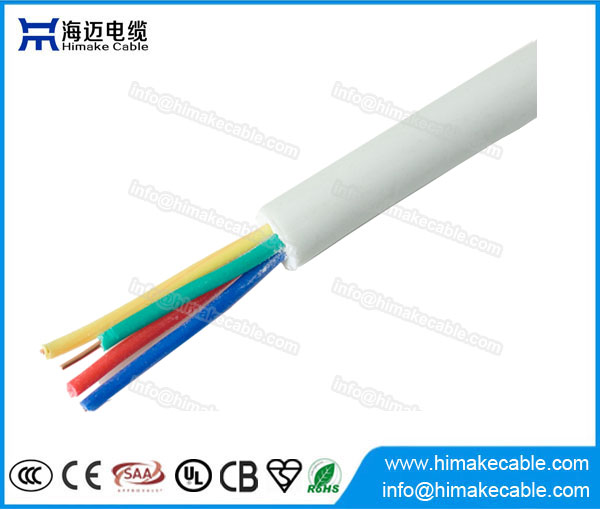

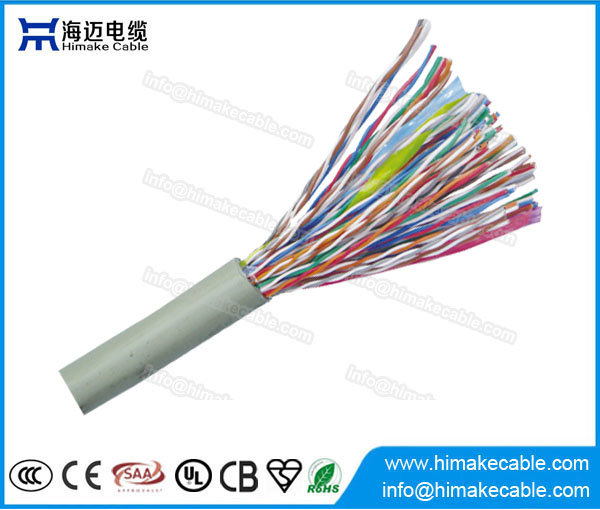

Communication Cable Telephone Cable for indoor and outdoor use

  • Conductor: Bare Copper/TC
  • Insulation: PE
  • Cores: 2C, 4C,6C, 8C, or 1~4 pairs for indoor use, 5~200 pairs for outdoor use mainly
  • Shield (optional): drain wire + Al foil + braiding (optional)
  • Sheath: PVC or LDPE
  • Sheath color: black, white, grey, or other as per requirement
  • Package: 100 meters per roll, 200 meters per roll, 500 meters per wooden reel, or as per requirement
  • Main product model: HYV, HYY, HYVP
  • Product standard: GY/T 840, GY/T 322, ISO/IEC 11801, ANSL/EIA/TIA 568B
  • Leat time: 15~25 working days, it depends the order quantity
  • Price term: FOB, CFR, CIF,EX-Works
  • Payment term:T/T,LC at sight,West Union
  • MOQ:10000 meters, trial order can be available.
  • Shipment: Express, FCL, LCL, by sea or by air

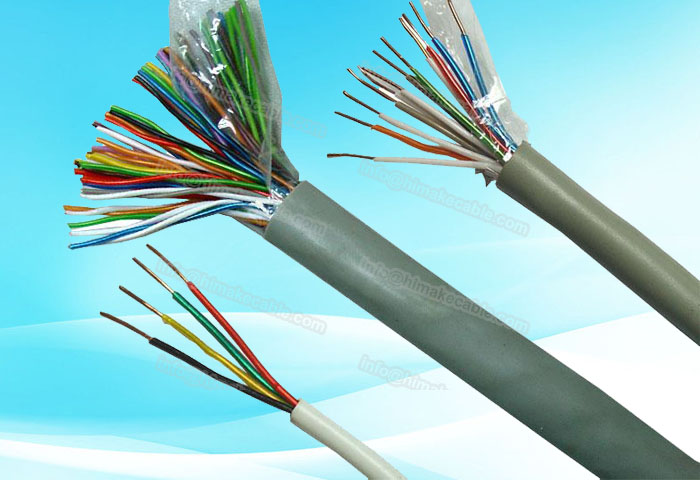

telephone cable

Product Description:
Conductor: Bare Copper/TC
Conductor size: 0.4mm, 0.5mm, 0.6mm, 0.8mm
Insulation: PE
Cores: 2C, 4C,6C, 8C, or 1~4 pairs for indoor use, 5~200 pairs for outdoor use mainly
Shield (optional): drain wire + Al foil + braiding (optional)
Sheath: PVC or LDPE
Sheath color: black, white, grey, or other as per requirement
Package: 100 meters per roll, 200 meters per roll, 500 meters per wooden reel, or as per requirement
Main product model: HYV, HYY, HYVP
Product standard: GY/T 840, GY/T 322, ISO/IEC 11801, ANSL/EIA/TIA 568B

Product application:
Used for the connection between floor cabling system in the telephone communication cabling system and the user's telephone outlet, used for the interconnection between telephone exchange and extension sets and between other communication equipments, also used for terminal telephones, faxes, digital telephones, visual building telecom system. Shielded cable should be used in the cabling system in areas with serious interference.

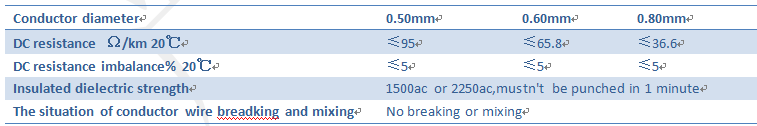

Product Electrical Property: (more spec. details please email us: info@himakecable.com )
tele


tele2


tele3
